Shipping within 1-2 days
Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.
10.4Ah: 50-80 km (MAX POWER - MAX ECO)
13Ah: 60-110 km (MAX POWER - MAX ECO)
16AH(LG): 100-130 km (MAX POWER - MAX ECO)
Voltage: 36 V

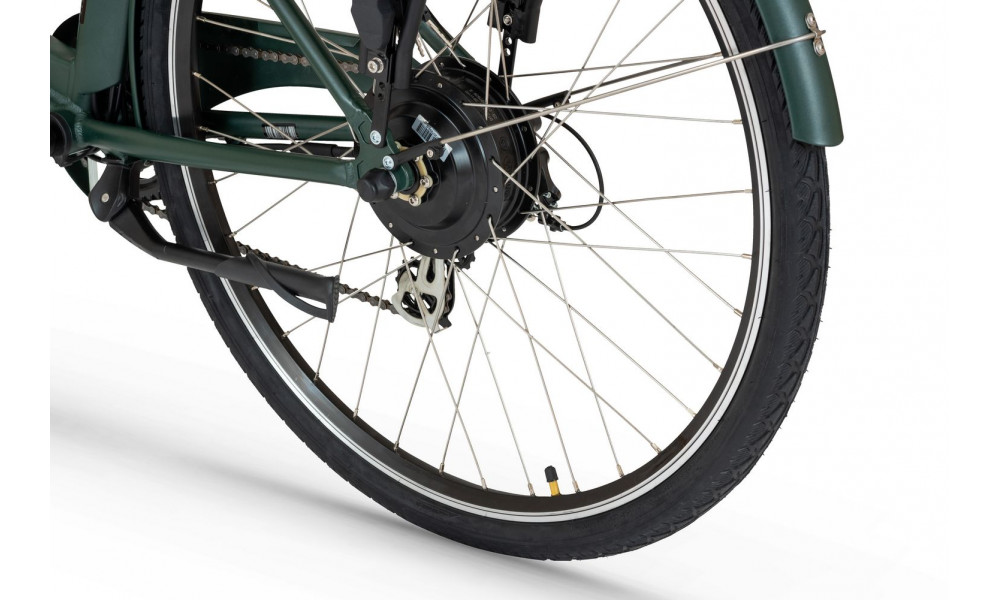

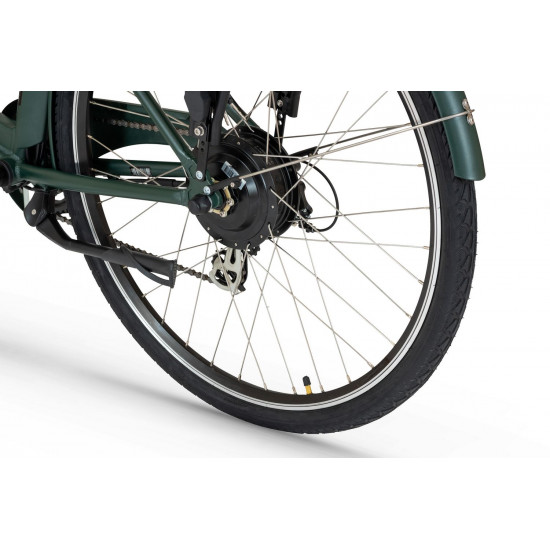

Mount: rear wheel hub
Motor assisted speed: max. 35 km/h (Limited to 25 km/h)
Torque: 45 Nm
Motor's brand: BAFANG
Power: 250 W
Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 360W
Fuses: 30 A
Lifespan: 700 charges
Charging time: 4-8 hours
Voltage: 36 V
Charger: 220-240W / 42V / 2A / D type
Cells brand: LG / Greenway
Smart BMS (Battery Managment System)
Battery can be removed for charging
CHARGING TIME: 4-8 hours
FRAME SIZE: 19"

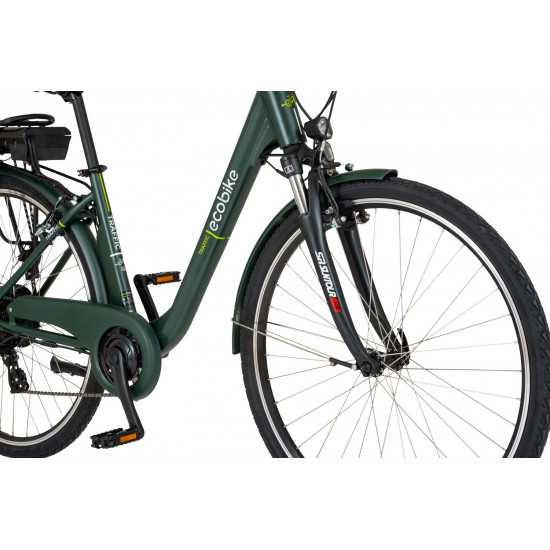

FORK: SR SR Suntour CR8V, travel: 63mm, suspension
BRAKES: V-brake Promax TX117
CHAIN: KMC Z7

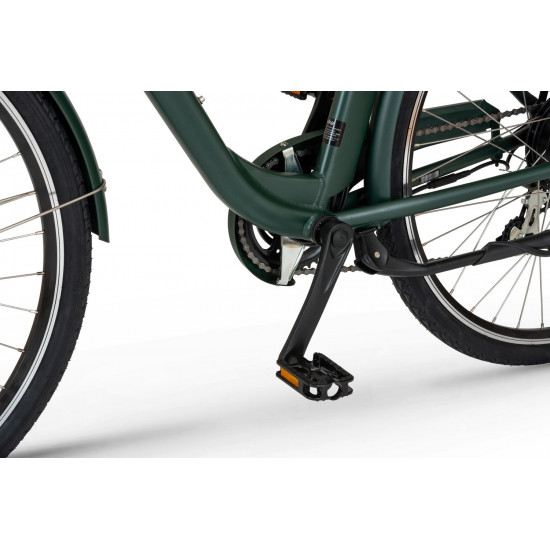

CHAINWHEEL: Prowheel PRO A42 1-speed, teeth: 42T, crank arm length: 170 mm
REAR DERAILLEUR: Shimano TY300 6-speed
FREEWHEEL: Skiful FW-207B 6-speed 14-28T

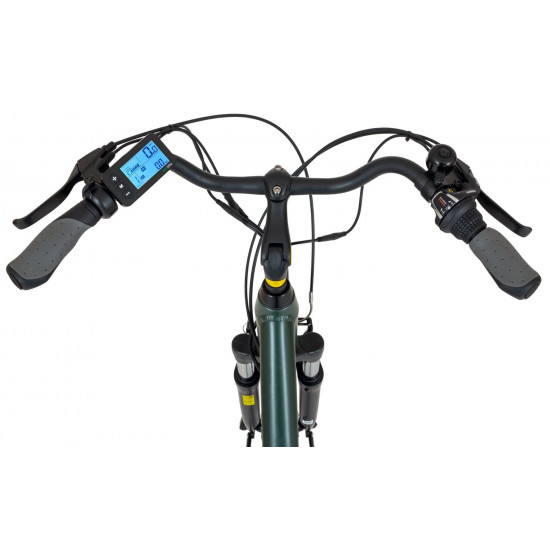

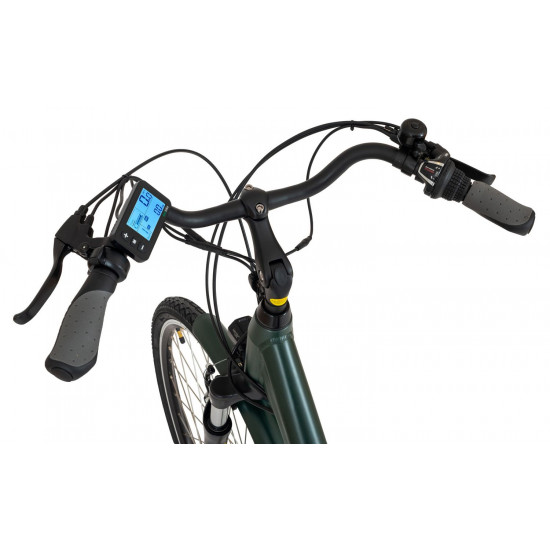

HANDLEBAR: Promax HB-T320, Aluminium, riser type with 45 degree backsweep for comfortable riding position, diameter in stem fixing spot (center): 25.4mm, length: 600mm
STEM: Promax MQ-525, aluminium, adjustable
HUBS: Front hub: Joytech 751DSE / Rear Hub: Engine
RIMS: 28", triple-chamber rims
SADDLE: Selle Royal Lookin Basic-A230
SEAT POST: Diameter: 27.2mm, length: 350mm
SHIFTERS: Shimano SL-RS35 RevoShift 6-speed
SPOKES: SAPIM 13G / Front wheel: 288 mm / Rear wheel: 247 mm
TYRES: Wanda 28 x 1.75 (47-622)
WEIGHT: 22 kg
MUDGUARDS: For front and rear wheel, with u-stays
GRIPS: VELO VLG-519AD2
KICKSTAND: Center, adjustable length, aluminium
CARRIER: Aluminium, max.: 25kg, with carrier straps
LIGHTS: Rear Light: Spaninga RL1900XE / Front Light: Spaninga KENDO XE
Length: 182 cm
Distance from saddle to stem: 57 cm
Height (max saddle-ground): 102 cm
Height (max handlebar-ground): 104 cm
Height (stem-ground): 101 cm
Height (seatpost clamp-ground): 84 cm
Height (frame overstep-ground): 38 cm
Maximum load: 125 kg
Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
Lifespan - stated number can be lower if stored and used improperly
Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
IMPORTANT: Due to Covid-19 consequences, multiple economical and political reasons there are intense pressure on delivery chains, there is a small chance that some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and so on, but manufacturer will use technically identically matching alternatives. If bicycle has some parts that does not match the description below and there is no compatibility issues – manufacturer will not replace it!
- Toote nimi

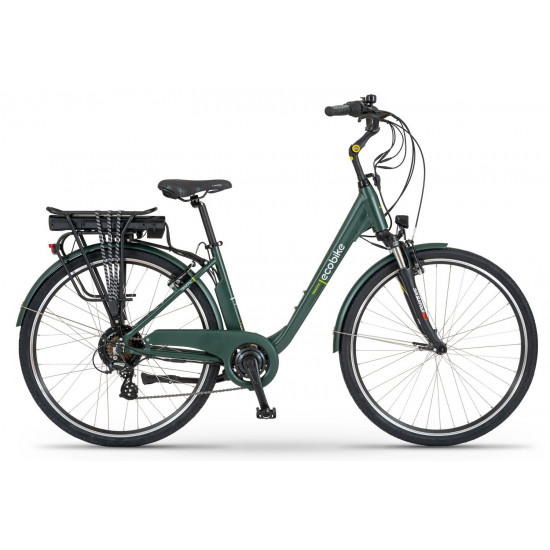

- Elektrijalgratas Ecobike Trafik 28" dark green
- Toote kood
- Raami materjal
- Eesmine amortisaator
- Tagumine amortisaator
Jalgratas tarnitakse tootja originaalpakendis (tavaliselt eemaldatud esiratta, juhtraua, sadulaga), mis tagab kaupade ohutuse ladustamisel ja transportimisel. Ostes sellises pakendis jalgratta, peab Ostja ise või tema valitud rattameister selle sobivalt kasutamiseks ette valmistama – kokku panema, ühendama ja reguleerima.
Enne väljasaatmist valmistatakse jalgratas ette sõitmiseks – pannakse kokku, reguleeritakse ja pingutatakse. See tarnitakse pakendatuna spetsiaalsesse pappkarpi. Peale jalgratta kättesaamist tuleb vaid ühendada ja kinnitada pedaalid, seadistada juhtraud ning sadul õigesse asendisse ja saabki sõitu alustada. Laste jalgratastele võib olla vaja kinnitada ka abirattad ja -varras, kui need on komplektis. Täiendavalt ostetud tarvikute ning aksessuaaride paigaldamine ei sisaldu teenuse hinnas.
