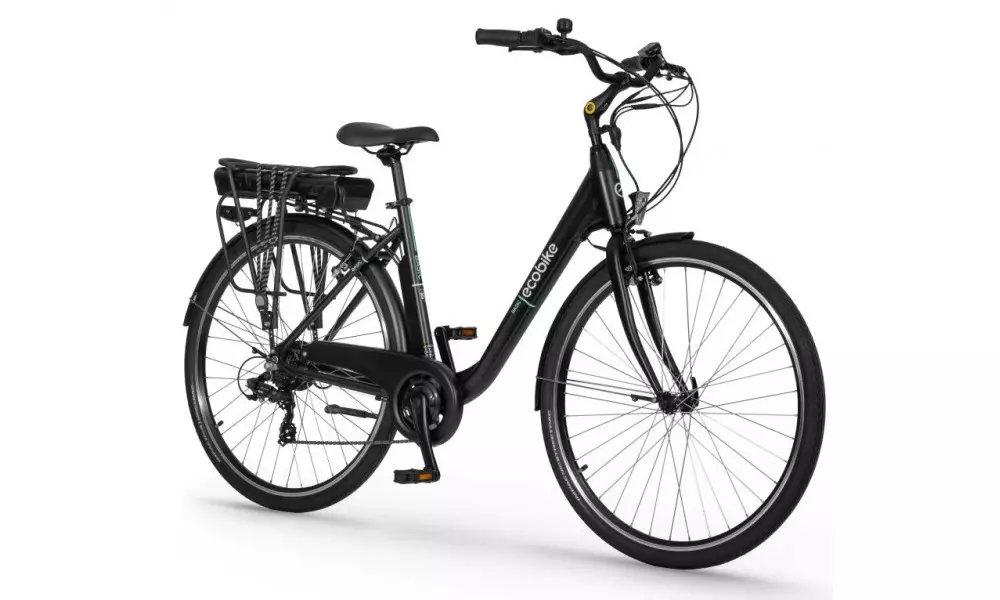

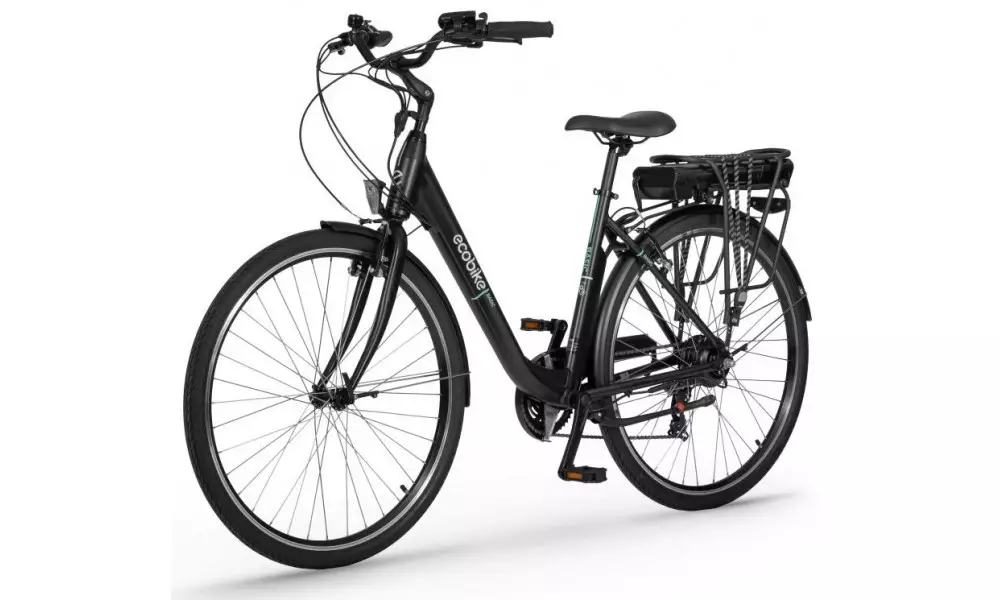

Elektrijalgratas Ecobike Basic 28" 2023 black

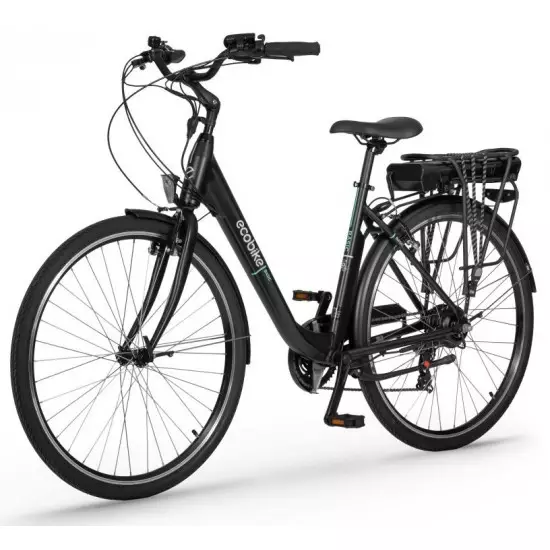

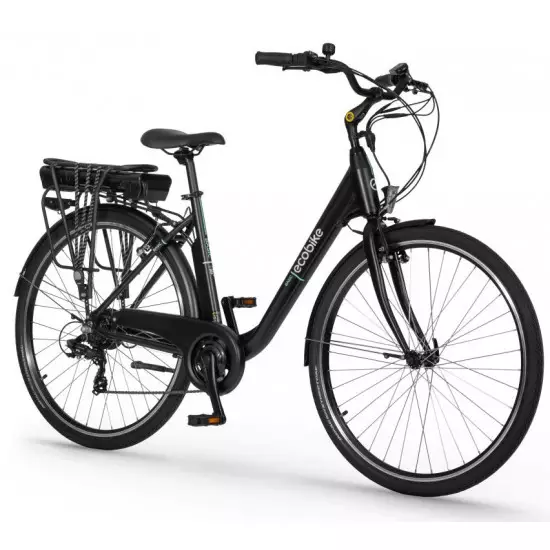

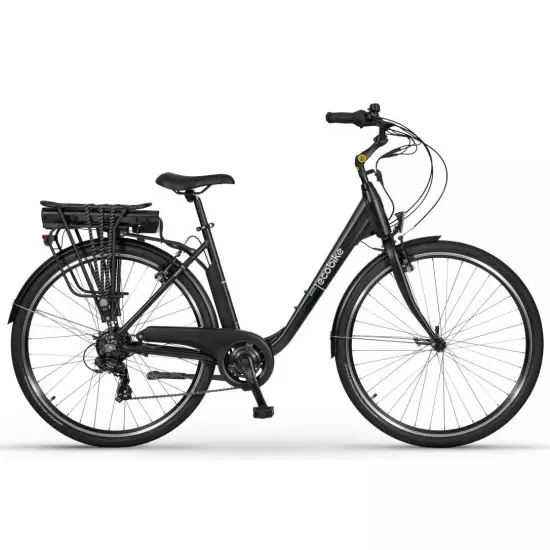

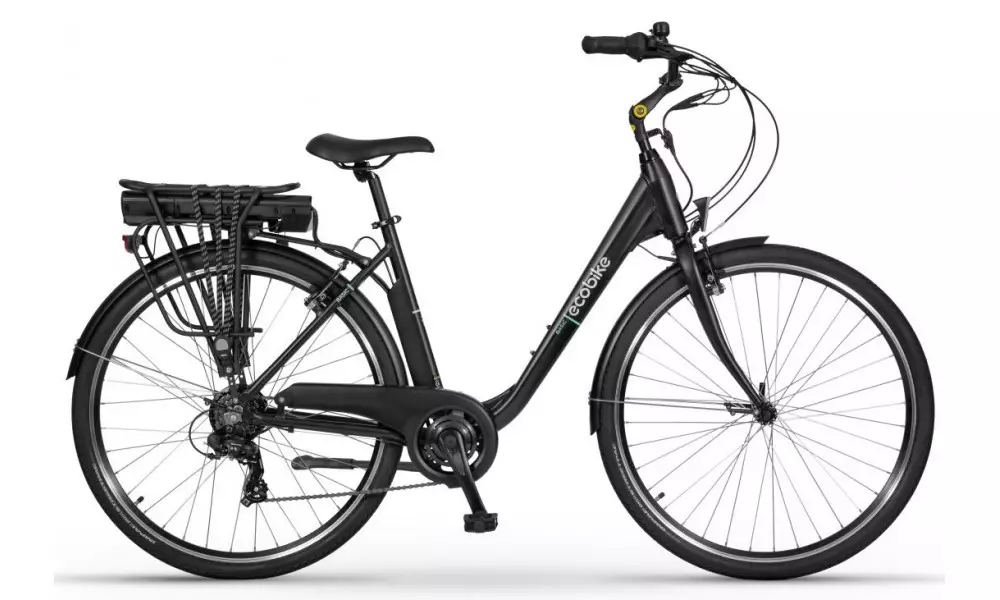

Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. Ecobike Basic is an entry level city e-bike, yet offers great performance for it's price. Its electric power system develops 250W power and allows you to ride around a city with speed of 25 km/h. The engine is located in the rear wheel hub and the battery is placed on the rack. The configuration of the electric drive is enabled by a classic LED display - ergonomic and easy to use. The bike was made based on the Ecobike's City model and it is an excellent design for moving around the city. The geometry of the frame makes the bike sit comfortably and it is responsible for an easy, upright position during the ride. Basic is equipped with front and rear lighting as well as a practical rack to pick up your bag and fenders to protect your clothes by a water.

DISTANCE:

Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.

8.7Ah: 30 - 50 km (MAX POWER - MAX ECO)

11.6Ah: 55-85 km (MAX POWER - MAX ECO)

14.5Ah: 75-125 km (MAX POWER - MAX ECO)

17.5AH(LG): 90-140 km (MAX POWER - MAX ECO)

ENGINE:

Voltage: 36 V

Mount: rear wheel hub

Motor assisted speed: max. 25 km/h

Torque: 35 Nm

Motor's brand: XOFO

Power: 250 W

Computer: SO-WZK0148-D

BATTERY:

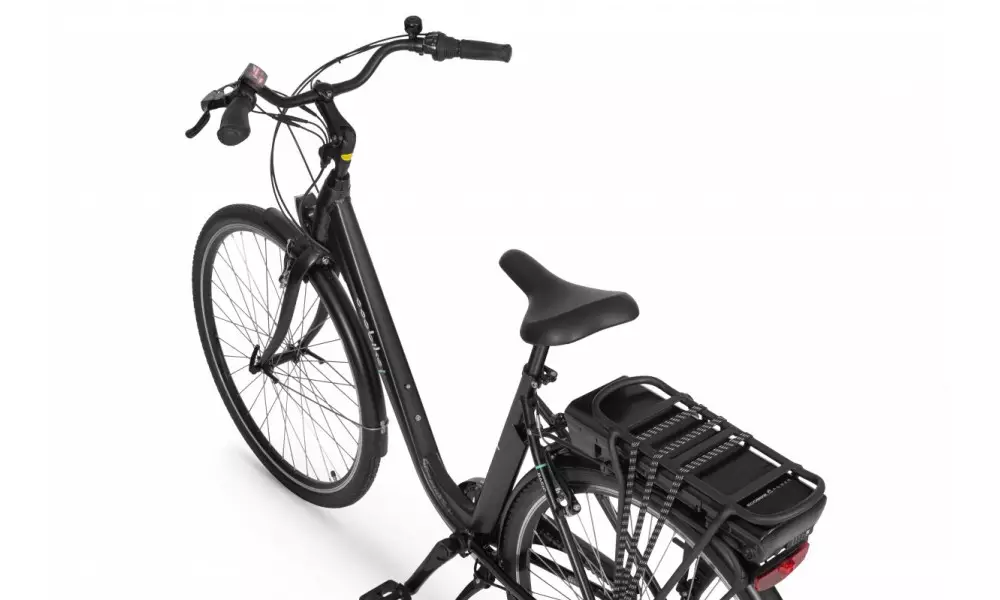

In carrier

Fuses: 30 A

Lifespan: 700 charges

Charging time: 4-8 hours

Type: Li-NCM

Voltage: 36 V

Charger: 220-240W / 42V / 2A / D type

Cells brand: LG / Greenway

Smart BMS (Battery Managment System)

Battery can be removed for charging

CHARGING TIME: 4-8 hours

FRAME: Aluminium

FRAME SIZE: 17"

FORK: Rigid, steel

BRAKES: V-brake Promax

CHAIN: KMC

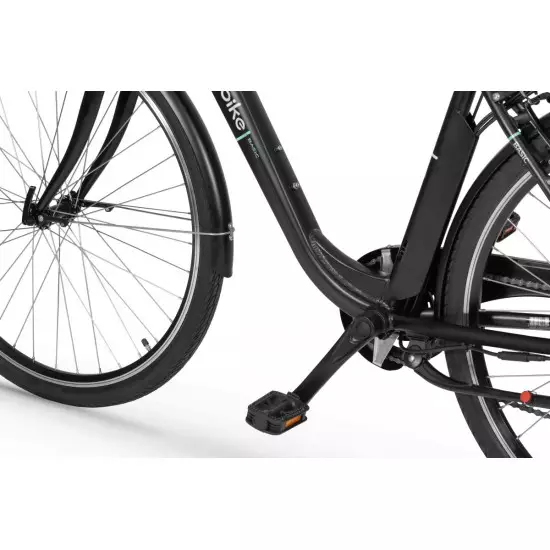

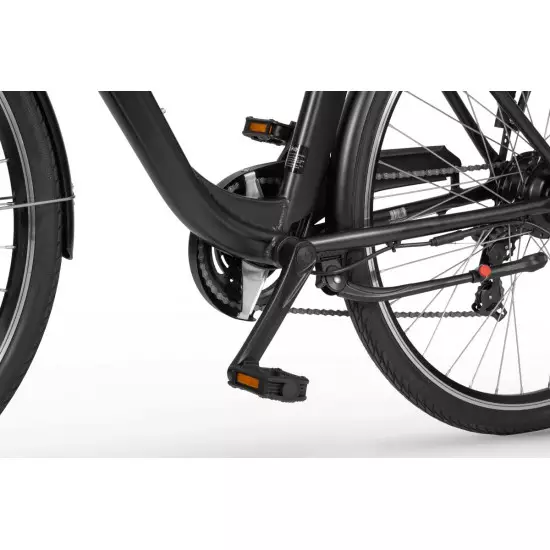

CHAINWHEEL: Prowheel PRO A42 1-speed, teeth: 42T, crank arm length: 170 mm

REAR DERAILLEUR: Shimano TY300 6-speed

FREEWHEEL: Sunrace MFM2A 6-speed 14-28T

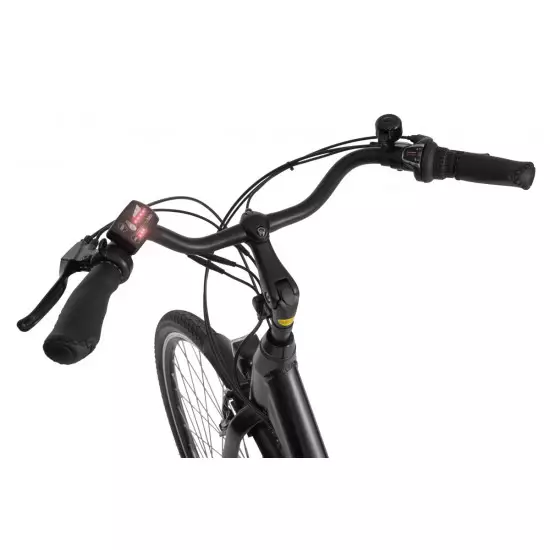

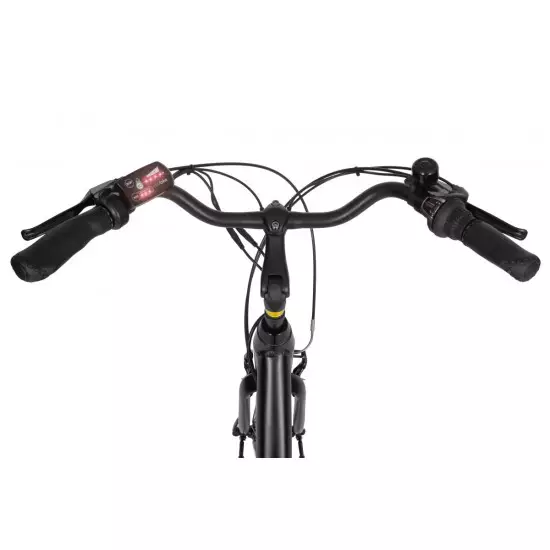

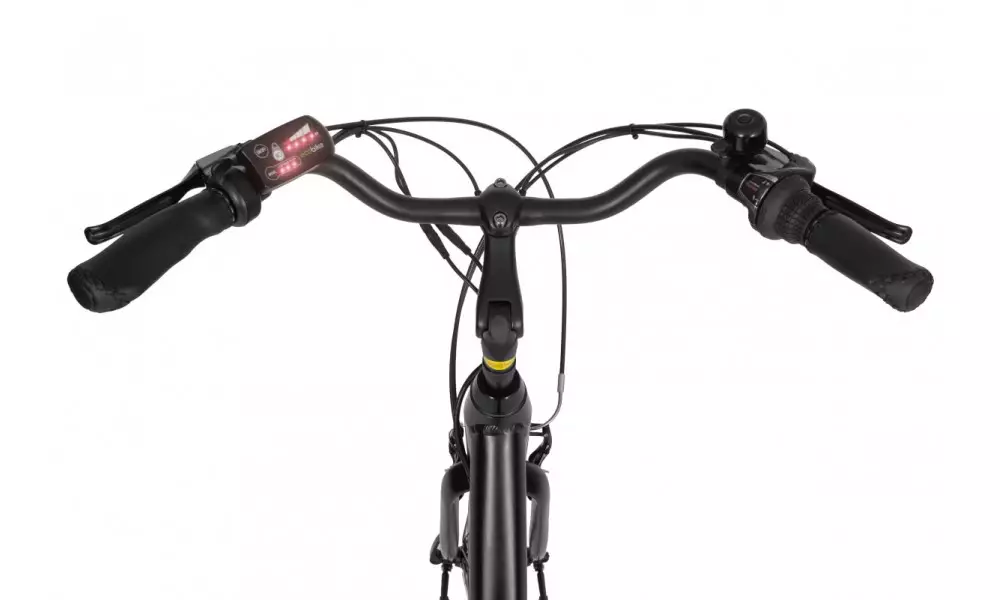

HANDLEBAR: Promax HB-T320, Aluminium, riser type with 45 degree backsweep for comfortable riding position, diameter in stem fixing spot (center): 25.4mm, length: 600mm

STEM: Promax MQ-525, aluminium, adjustable

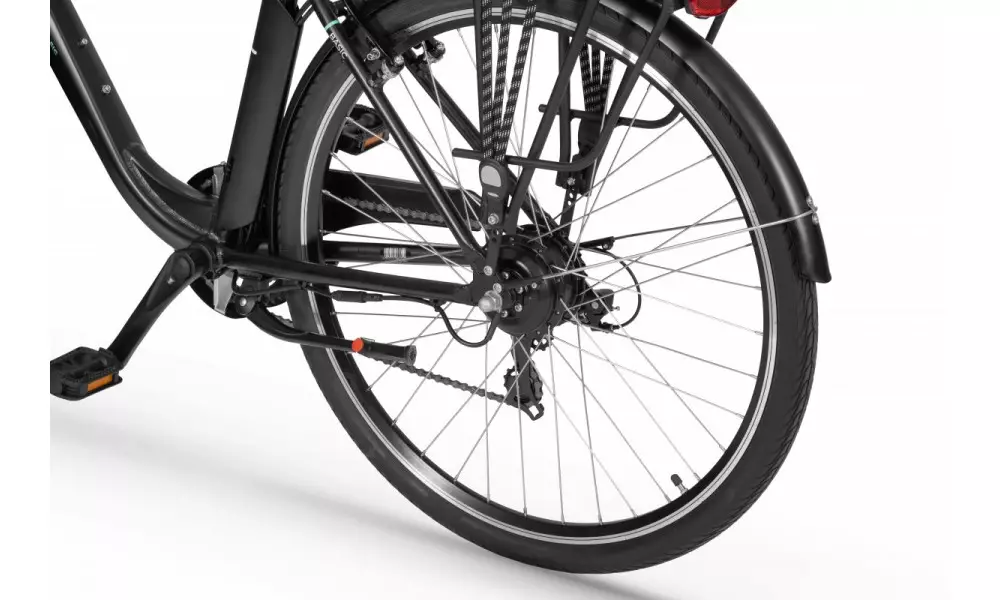

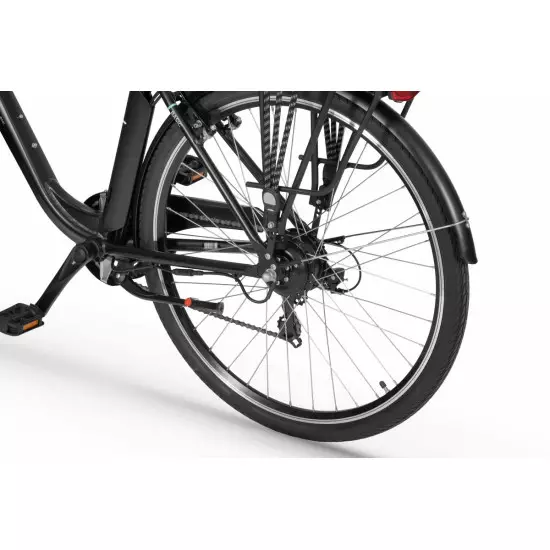

HUBS: Front hub: Joytech 751DSE / Rear Hub: Engine

PEDALS: WELLGO

RIMS: 28", reinforced

SADDLE: Aifeit 6371-01

SEAT POST: Diameter: 27.2mm, length: 350mm

SHIFTERS: Shimano SL-RS35 RevoShift 6-speed

SPOKES: stainless steel, 13G Front wheel: 290 mm / Rear wheel: 256 mm

TYRES: Wanda 28 x 1.75 (47-622)

WEIGHT: 21,7 kg

SPEEDS: 6

MUDGUARDS: For front and rear wheel, with u-stays

GRIPS: VELO VLG-519AD2

KICKSTAND: Center, adjustable length, aluminium

CARRIER: Aluminium, max.: 25kg, with carrier straps

LIGHTS: LIGHTS: Front and rear, LED

GEOMETRY:

Length: 182 cm

Distance from saddle to stem: 57 cm

Height (max saddle-ground): 102 cm

Height (max handlebar-ground): 103 cm

Height (stem-ground): 99 cm

Height (seatpost clamp-ground): 84 cm

Height (frame overstep-ground): 38 cm

Maximum load: 125 kg

Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.

Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.

Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.

Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.

Lifespan - stated number can be lower if stored and used improperly

Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.

Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.

IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
