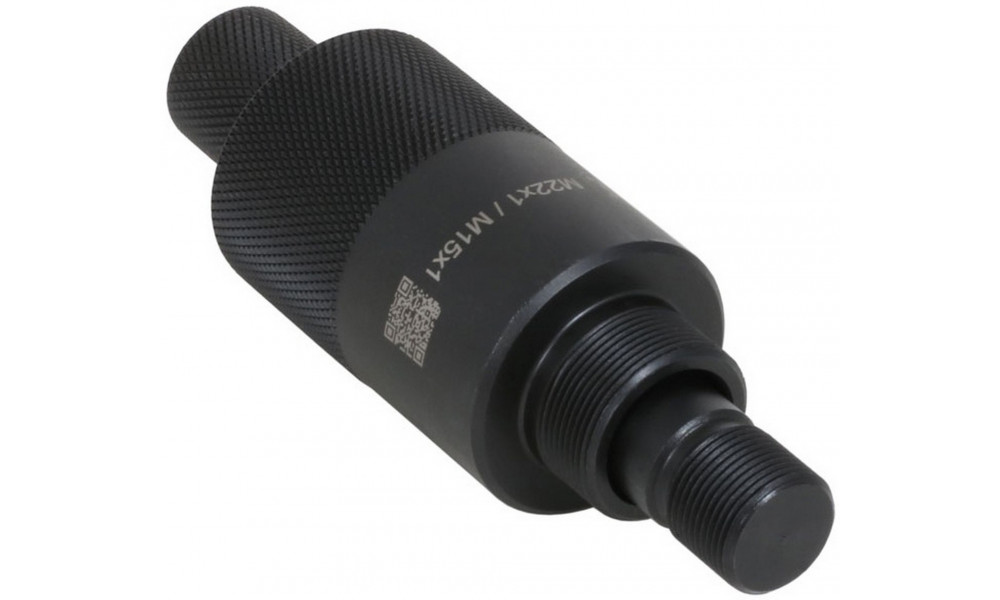

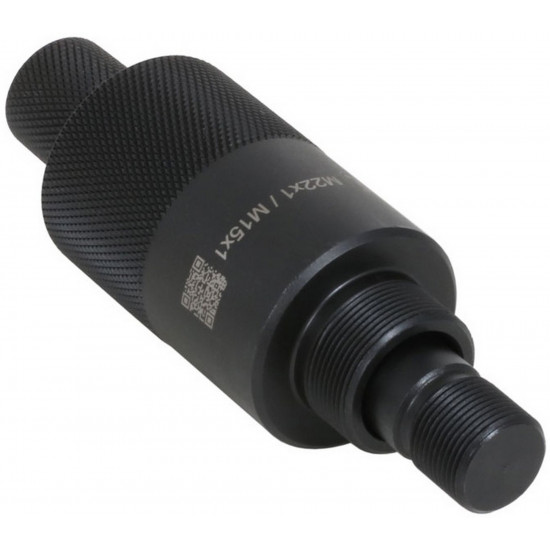

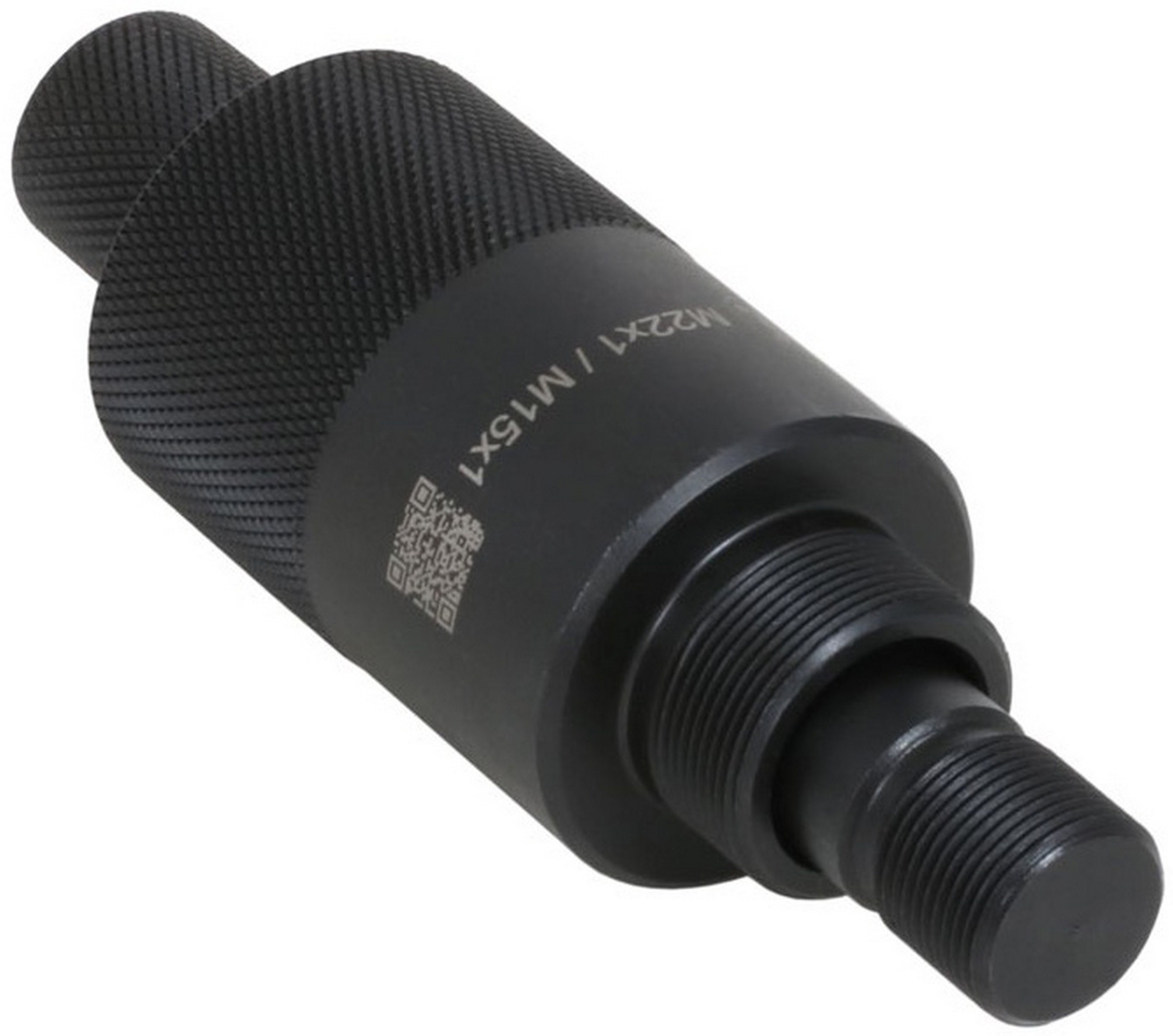

Tööriist Cyclus Tools for crank removal/installation M22x1 extra long (720233)
Cyclus Tools develops and produces top quality tools for professional bicycle repair shops, but of course its also appropriated for hobby technicians. Produced in Europe, these durable tools are permanently proofed by our quality checks. With furnitures for your workshop or cosmetic care products the portfolio is rounded off very well. For every problem Cyclus Tools offers solutions. Cyclus Tools counts among the leading manufacturers of tools for bicycles. To stay at the top we continuously enhance our products for todays fast changing conditions.
Product technical specifications
- When you have securely clamped the crank onto the axle by tightening and torquing the crank bolts, a specific crank puller tool is then needed to safely extract the crank arm from the axle.
- How is this done when the bottom bracket axle has no fitting conical surfaces, such as on e-bikes? In such a case (= threaded bottom bracket) you need some extra help, as the position of the crank is determined solely by screw connections and the standard removal method can no longer be applied.
- We have the solution: the Cyclus crank puller, with a longer stroke extractor (more than 20mm)!
- The Cyclus crank puller enables you to remove both older type and newer deeper cranks quickly, safely and professionally.
- To make the best use of Cyclus Tools crank puller, the following components are essential:
- Crank internal thread M22x1
- Bottom bracket connection thread M15x1
Special note: with the help of the Cyclus Tools milling cutter (art. 720235) you can first ream out defective crank threads (M22x1); and then cut a M24x1 thread by using the Cyclus Tools tap (and die: art. 720245). At the end of the job, you won't just dismantle the crank, but will even repair it as well. Your customer will greatly appreciate this service!
Note: make sure you have got the Cyclus Tools fitting guides! Once you cut a screw thread, you can use the fitting pullers from Cyclus Tools and thus pull off the crank as usual.
Further Cyclus Tools articles related to this bottom bracket system:
720234 Cyclus Tools crank puller | crank inside thread M24x1 M15x1 bottom bracket connecting thread
720239 Cyclus Tools crank puller | crank inside thread M22x1 M18x1 bottom bracket connecting thread | Cannondale BB30
720241 Cyclus Tools crank puller | crank inside thread M22x1 M12x1 bottom bracket connecting thread
720242 Cyclus Tools crank puller | crank inside thread M24x1 M12x1 bottom bracket connecting thread
720243 Cyclus Tools crank puller | crank inside thread M22x1 M10x1 bottom bracket connecting thread
720244 Cyclus Tools crank puller | crank inside thread M24x1 M10x1 bottom bracket connecting thread
720013 Cyclus Tools tap for internal crank thread M22x1 | for re-cutting
720235 Cyclus Tools cutter core hole M24 repair thread
720245 Cyclus Tools tap for internal crank thread M24x1 | for new-cutting
720370 Cyclus Tools thread guide M8x1
720371 Cyclus Tools thread guide M15x1
720372 Cyclus Tools thread guide M12x1
720373 Cyclus Tools thread guide M10x1
If you have any further questions, please do not hesitate to contact us.
- Toote nimi
- Tööriist Cyclus Tools for crank removal/installation M22x1 extra long (720233)
- Toote kood
- TOOL537
- Tootja
- Cyclus Tools
- Vöötkood
