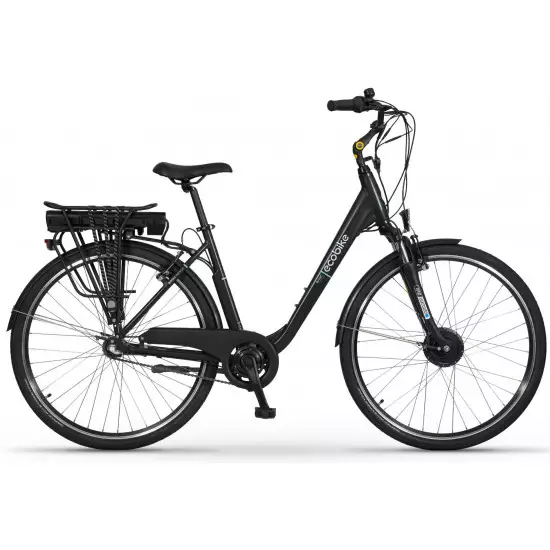

Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. Ecobike Basic Nexus is an entry level city e-bike, yet offers great performance for it's price. Its electric power system develops 250W power and allows you to ride around a city with speed of 25 km/h. The engine is located in the front wheel hub and the battery is placed on the rack. The configuration of the electric drive is enabled by a classic LED display - ergonomic and easy to use. This version is equipped with a reliable Nexus 3 derailleur, which allows you to change gears even when stationary. It works well, when you ride among traffic lights. The asset that you will appreciate the most is its resistance to any conditions you may meet on your way - no matter if it is rain or sand. You can enjoy the convenience it gives and forget about repairs that will not require a very long time. The bike was made based on the Ecobike's City model and it is an excellent design for moving around the city. The geometry of the frame makes the bike sit comfortably and it is responsible for an easy, upright position during the ride. Basic is equipped with front and rear lighting as well as a practical rack to pick up your bag and fenders to protect your clothes by a water.
DISTANCE:
Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.
8.7Ah: 30 - 50 km (MAX POWER - MAX ECO)
11.6Ah: 55-85 km (MAX POWER - MAX ECO)
14.5Ah: 75-125 km (MAX POWER - MAX ECO)
17.5AH(LG): 90-140 km (MAX POWER - MAX ECO)
ENGINE:
Voltage: 36 V
Mount: front wheel hub
Motor assisted speed: max. 25 km/h
Torque: 25 Nm
Motor's brand: XOFO
Power: 250 W
Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 360W
Computer: SO-WZK0148-D
BATTERY:
In carrier
Fuses: 30 A
Lifespan: 700 charges
Charging time: 4-8 hours
Type: Li-ion
Voltage: 36 V
Charger: 220-240W / 42V / 2A / D type
Cells brand: LG / Greenway
Smart BMS (Battery Managment System)
Battery can be removed for charging
CHARGING TIME: 4-8 hours
FRAME: Aluminium
FRAME SIZE: 17"
FORK: Suspension SunTour SF14 CR8V P travel 63 mm
BRAKES: V-brake Promax TX117
CHAIN: KMC
CHAINWHEEL: Prowheel PRO A42 1-speed, teeth: 42T, crank arm length: 170 mm
REAR DERAILLEUR: Shimano Nexus 3-speed
FREEWHEEL: Cog Shimano Nexus 20T
HANDLEBAR: Promax HB-T320, Aluminium, riser type with 45 degree backsweep for comfortable riding position, diameter in stem fixing spot (center): 25.4mm, length: 600mm
STEM: Promax MQ-525, aluminium, adjustable
HUBS: Front hub: Engine / Rear Hub: Shimano Nexus 3
PEDALS: WELLGO
RIMS: 28", triple-chamber
SADDLE: Aifeit 6371-01
SEAT POST: Diameter: 27.2mm, length: 350mm
SHIFTERS: Shimano Nexus SL-3S41E 3-speed
SPOKES: SAPIM 13G / Front wheel: 253 mm / Rear wheel: 281 mm
TYRES: Impac StreetPac TwinSkin 28 x 1.75 (47-622)
WEIGHT: 20,3 kg
SPEEDS: 3
MUDGUARDS: For front and rear wheel, with u-stays
GRIPS: VELO VLG-519AD2
KICKSTAND: Center, adjustable length, aluminium
CARRIER: Aluminium, max.: 25kg, with carrier straps
LIGHTS: Front and rear, LED
GEOMETRY:
Length: 182 cm
Distance from saddle to stem: 57 cm
Height (max saddle-ground): 102 cm
Height (max handlebar-ground): 103 cm
Height (stem-ground): 99 cm
Height (seatpost clamp-ground): 84 cm
Height (frame overstep-ground): 38 cm
Maximum load: 125 kg
Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
Lifespan - stated number can be lower if stored and used improperly
Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
Jalgratas tarnitakse tootja originaalpakendis (tavaliselt eemaldatud esiratta, juhtraua, sadulaga), mis tagab kaupade ohutuse ladustamisel ja transportimisel. Ostes sellises pakendis jalgratta, peab Ostja ise või tema valitud rattameister selle sobivalt kasutamiseks ette valmistama – kokku panema, ühendama ja reguleerima.
Enne väljasaatmist valmistatakse jalgratas ette sõitmiseks – pannakse kokku, reguleeritakse ja pingutatakse. See tarnitakse pakendatuna spetsiaalsesse pappkarpi. Peale jalgratta kättesaamist tuleb vaid ühendada ja kinnitada pedaalid, seadistada juhtraud ning sadul õigesse asendisse ja saabki sõitu alustada. Laste jalgratastele võib olla vaja kinnitada ka abirattad ja -varras, kui need on komplektis. Täiendavalt ostetud tarvikute ning aksessuaaride paigaldamine ei sisaldu teenuse hinnas.
