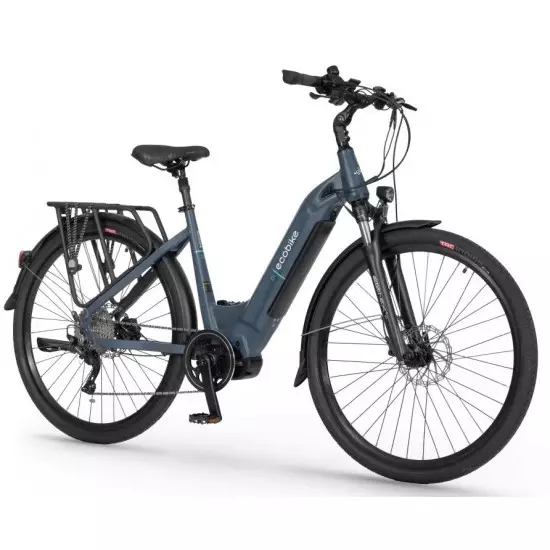

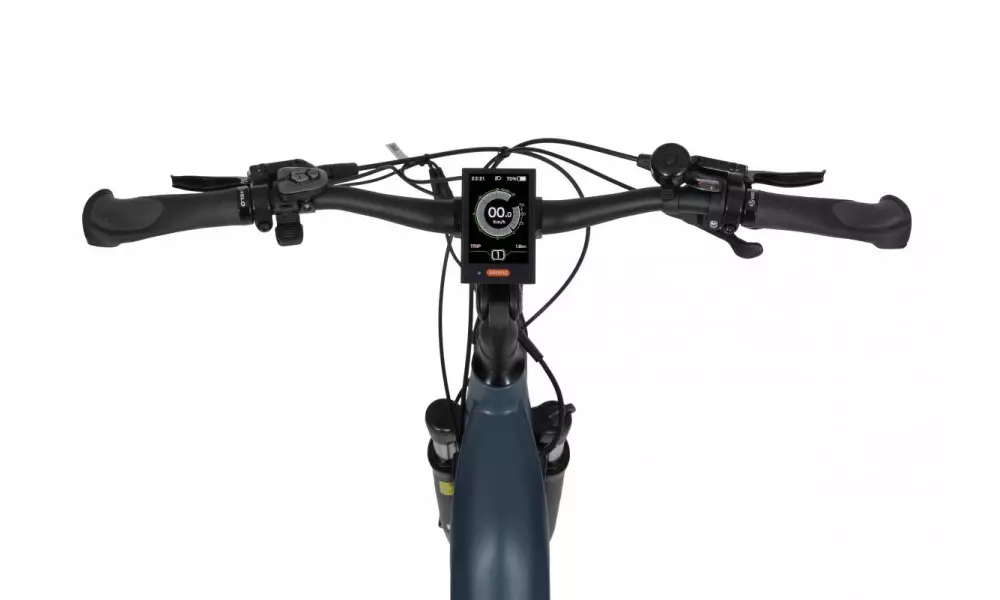

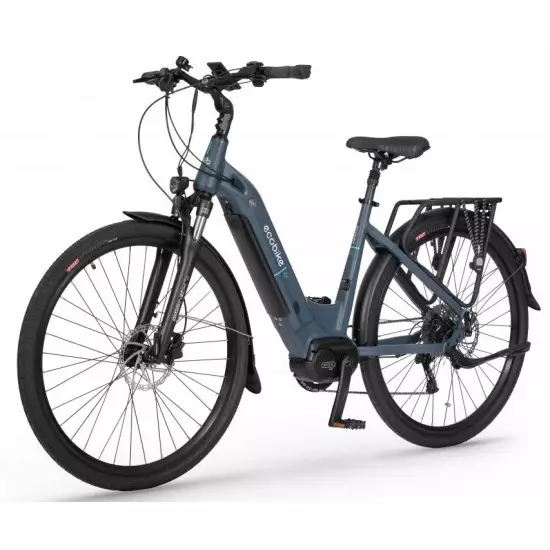

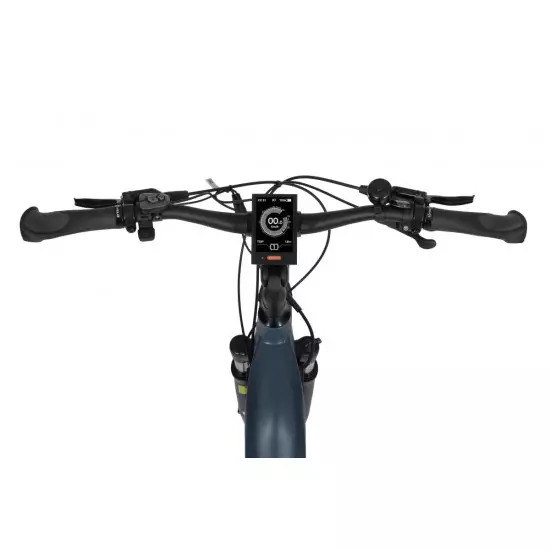

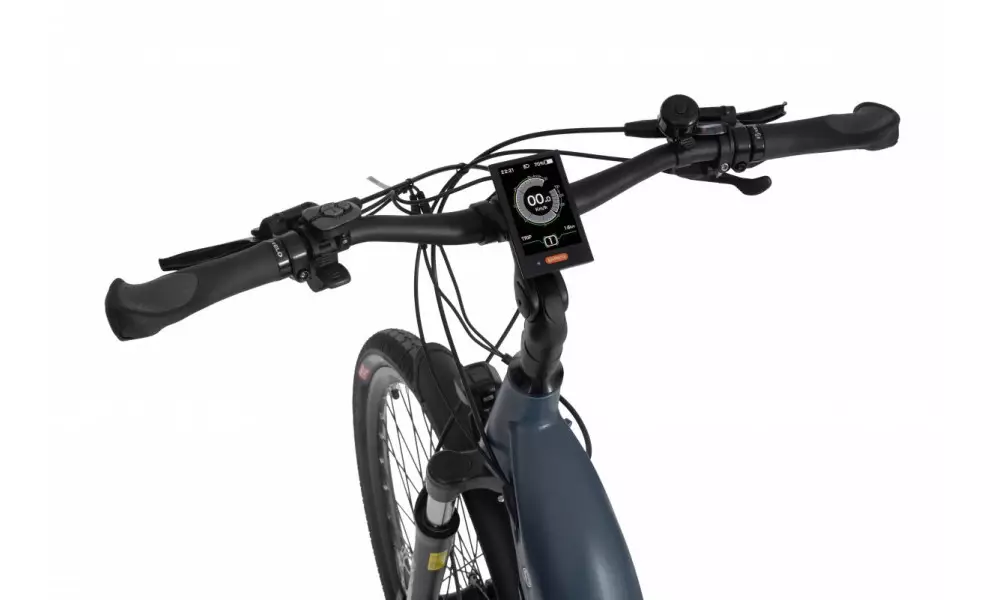

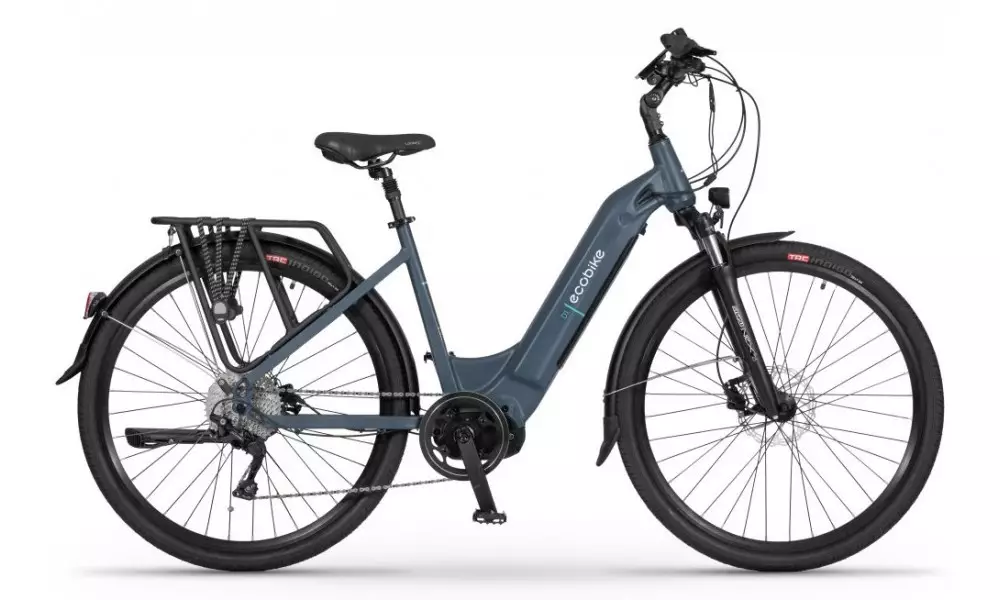

To quote the performer of the test, "... the EcoBike D1 Trekking is a good all-round hybrid that is both a good buy for the price and a bike that we can confidently recommend." A bicycle with a system of a reliable brand - BAFANG! Travel the routes with the support of new technological solutions, with the comfort and joy of using the Ecobike that accompany you! A bicycle designed for traveling, both small and large, the new shape makes the bicycle extremely stable and durable, and the modern design will attract the eye of many passers-by, fitting into any landscape. The new central drive unit in our collection - BAFANG M420 (48V) - with an intelligent assistance system, will allow you to experience the unique experience of smooth cycling, and the maximum speed in combination with a 48V 14Ah battery on LG cells will give you the opportunity to reach any destination on time ! You will surely like the control panel with a color display. It has been equipped with a dusk sensor that automatically turns on the bicycle's lighting after dark. The user-friendly interface ensures easy, intuitive operation, and there are many functions and configuration options for electric support. At Ecobike, technological progress meets passion for bicycles. The D1 is a proud example of this - in addition to proven technology, it could not lack reliable components. Bike traction like this is essential. We took care of it using a SunTour SF15 NEX-E25 suspension fork with 63mm of travel and TRC 28x1.95 tires. A high level of safety is ensured by hydraulic disc brakes ALHONGA. The derailleur in an e-bike with a mid-drive motor has to be very durable. In the D1 Trekking we used the Shimano DEORE model. We equipped the bike with complete lighting, fenders, a rack and a comfortable Selle Royal saddle, so that each of us could enjoy the ride right after opening the box!
Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.
48V/14AH(LG): 60-135 km (MAX POWER - MAX ECO)
Voltage: 48 V

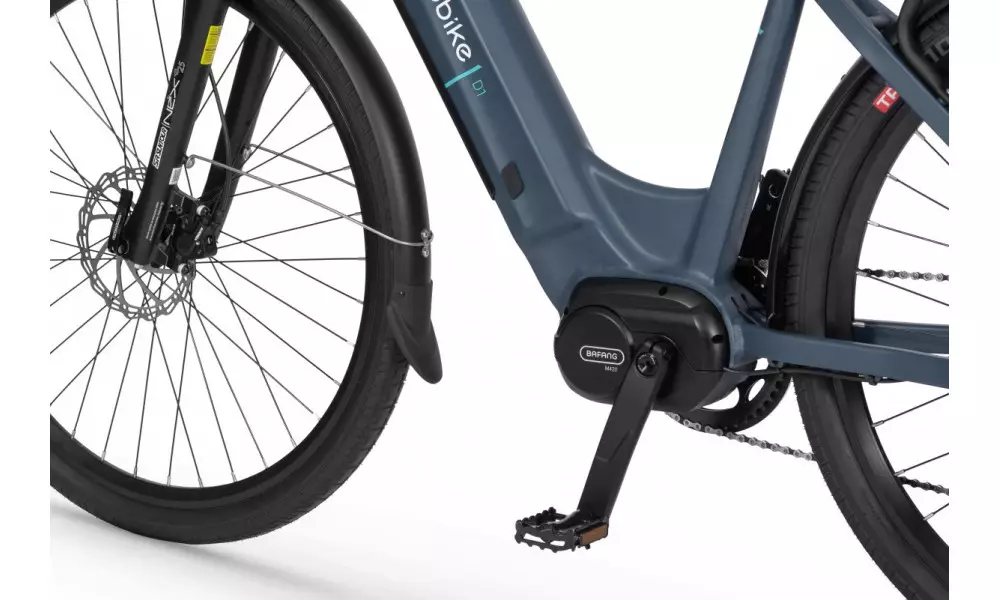

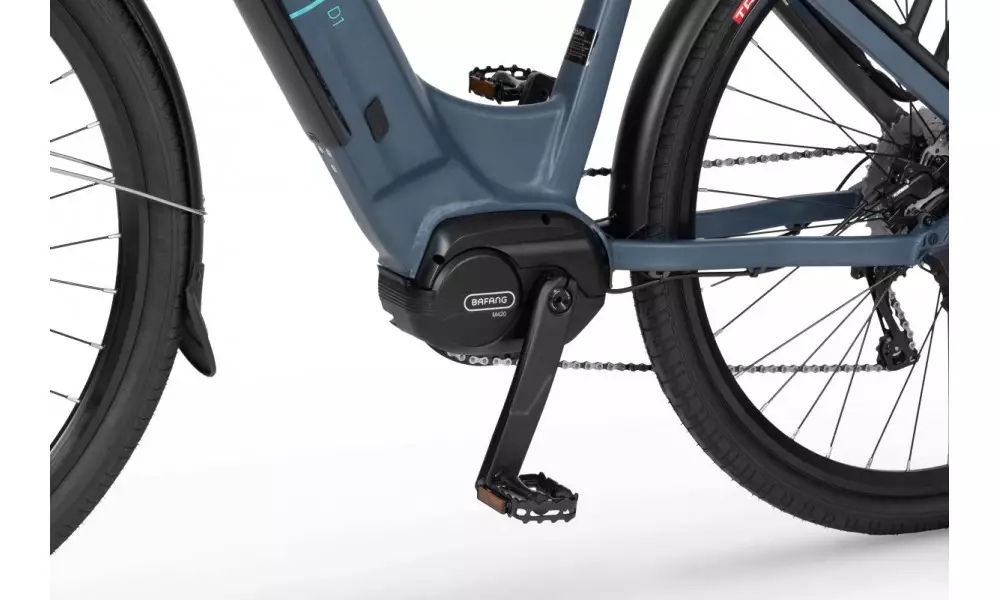

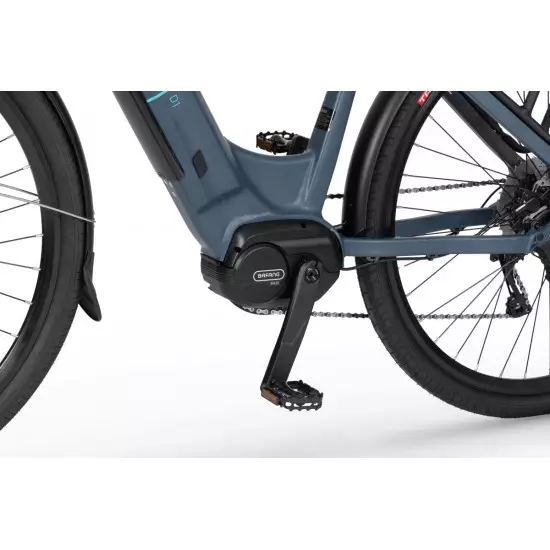

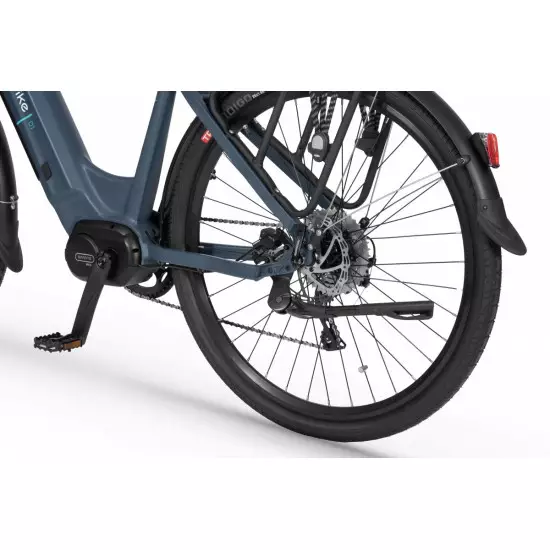

Mount: Central (mid-drive)
Motor assisted speed: 35 km/h (Limited to 25 km/h in accordance with EU standard EN 15194)
Torque: 80 Nm
Motor's brand: BAFANG
Power: 250 W
Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 720 W
Lifespan: 700 charges
Voltage: 48 V
Charger: 100-240V/54.6V 3A D type
Cells brand: LG
Smart BMS (Battery Managment System)
Battery can be removed for charging
CHARGING TIME: 7-8 hours
FRAME: Hydroformed aluminium
FRAME SIZE: 19"

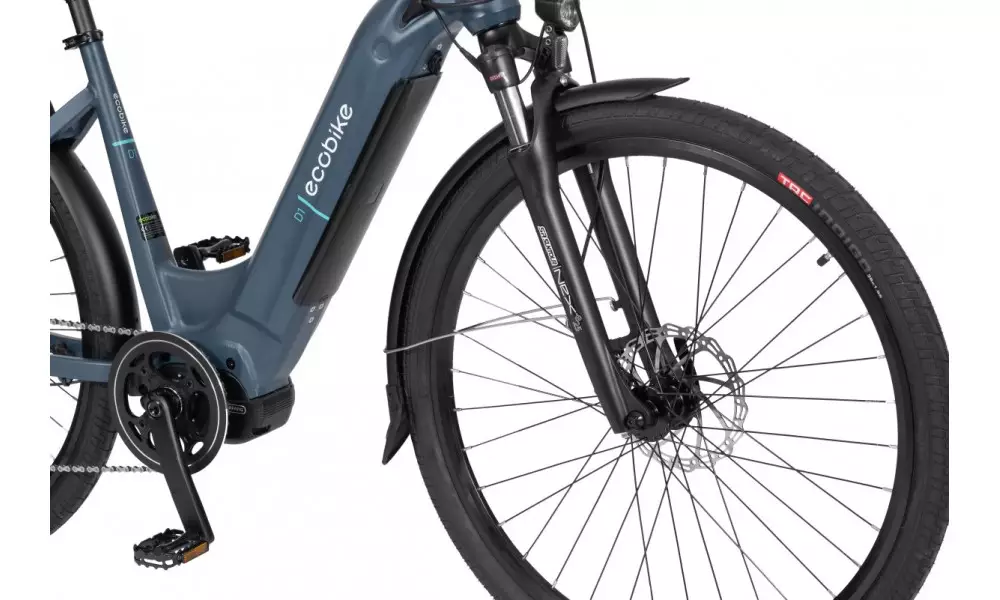

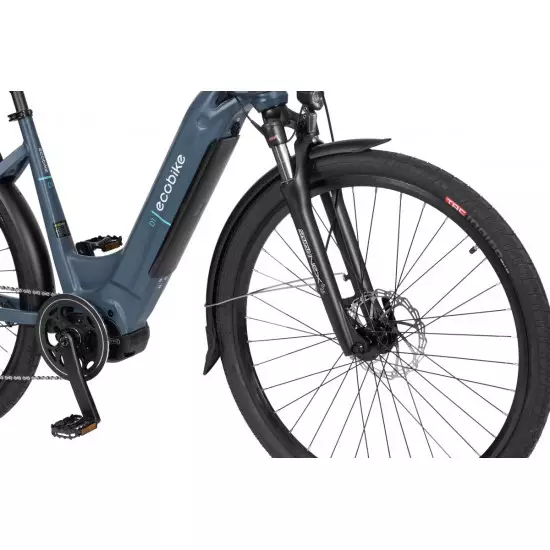

FORK: SunTour SF15 NEX-E25 travel 63 mm
BRAKES: Alhonga HJ-HT472 hydraulic disc
CHAINWHEEL: 1-speed, 44T

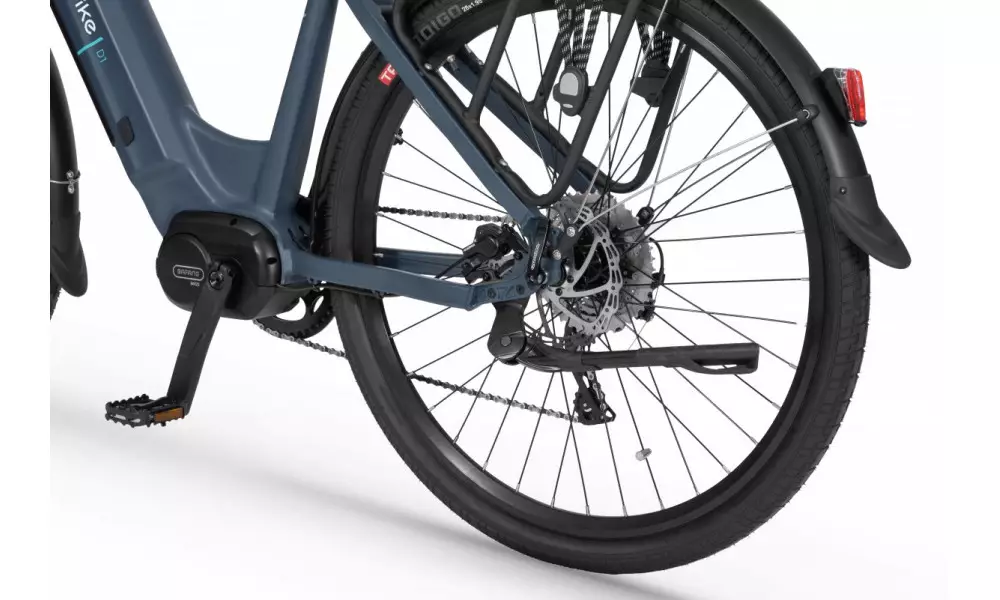

REAR DERAILLEUR: Shimano DEORE 10-speed
FREEWHEEL: Shimano DEORE CS-M4100-10 10-speed 11-42T
HANDLEBAR: Promax HB-3188, aluminium, diameter in stem fixing spot (center): 31.8mm, length: 700mm
STEM: Promax MA-595, fork steerer: 28,6mm, handlebar diameter: 31,8mm, length: 90mm)
HUBS: Front hub: KT-SN6F / Rear Hub: KT-SN6R
RIMS: 28", reinforced
SADDLE: Selle Royal Lookin Basic
SEAT POST: Promax, diameter: 27.2mm, length: 350mm
SHIFTERS: Shimano DEORE10-speed
SPOKES: stainless steel
TYRES: 28 x 1.95 (50-622)
WEIGHT: 27.5 kg
MUDGUARDS: For front and rear wheel, with u-stays
GRIPS: VELO VLG-1189D3
KICKSTAND: Rear, adjustable length, aluminium
CARRIER: Aluminium, max.: 25kg, with carrier straps
LIGHTS: Front and rear, LED
Maximum load: 125 kg
Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
Lifespan - stated number can be lower if stored and used improperly
Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
- Toote nimi
- Elektrijalgratas Ecobike D1 Trekking 28" 48V 2023
- Toote kood
- Raami materjal
- Eesmine amortisaator
- Tagumine amortisaator
Jalgratas tarnitakse tootja originaalpakendis (tavaliselt eemaldatud esiratta, juhtraua, sadulaga), mis tagab kaupade ohutuse ladustamisel ja transportimisel. Ostes sellises pakendis jalgratta, peab Ostja ise või tema valitud rattameister selle sobivalt kasutamiseks ette valmistama – kokku panema, ühendama ja reguleerima.
Enne väljasaatmist valmistatakse jalgratas ette sõitmiseks – pannakse kokku, reguleeritakse ja pingutatakse. See tarnitakse pakendatuna spetsiaalsesse pappkarpi. Peale jalgratta kättesaamist tuleb vaid ühendada ja kinnitada pedaalid, seadistada juhtraud ning sadul õigesse asendisse ja saabki sõitu alustada. Laste jalgratastele võib olla vaja kinnitada ka abirattad ja -varras, kui need on komplektis. Täiendavalt ostetud tarvikute ning aksessuaaride paigaldamine ei sisaldu teenuse hinnas.
