Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. A celebrity among bicycles, recognized by Norwegians! Our new model scored 9/10 points in an independent test conducted by the recognized company Tek.no. All aspects that are important to customers, which make it reliable, comfortable and universal, have been taken under the microscope.
Link to the article: https://www.tek.no/test/i/ALExBz/buddy-gjoer-mye-rett-med-denne-elsykkelen

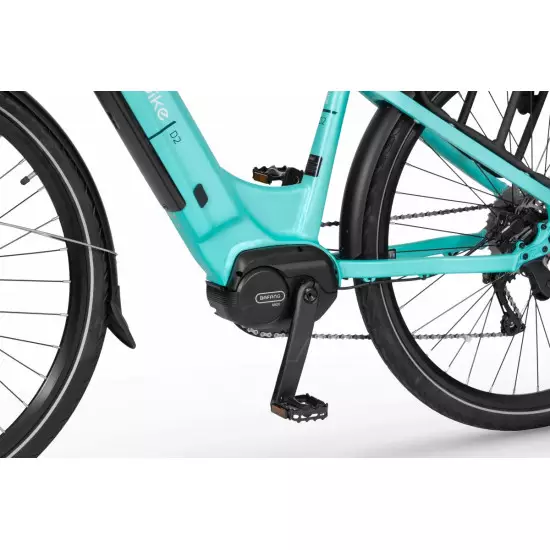

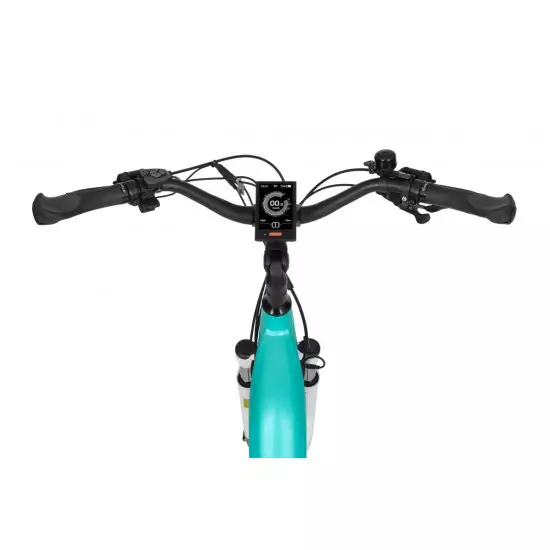

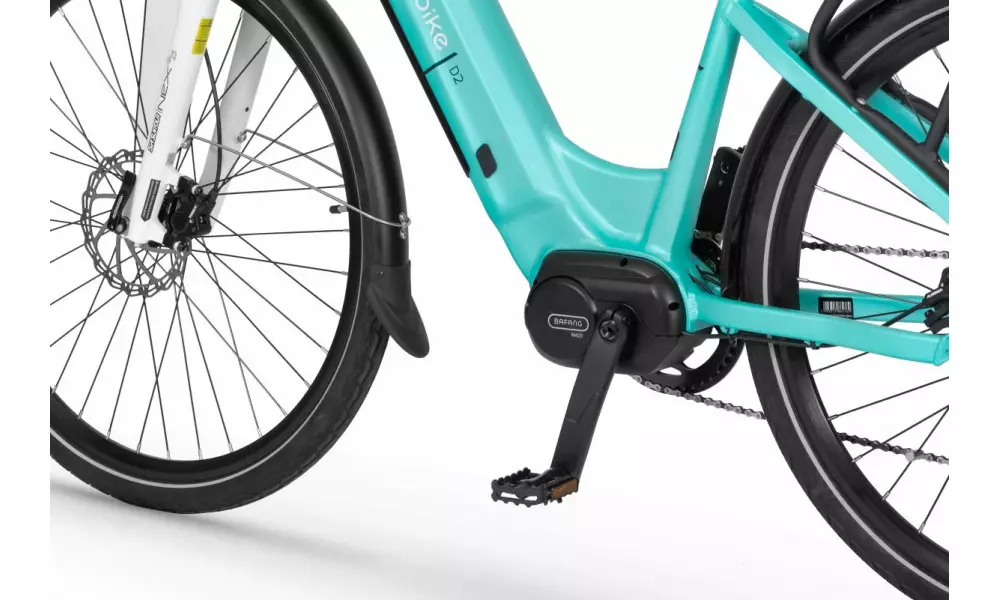

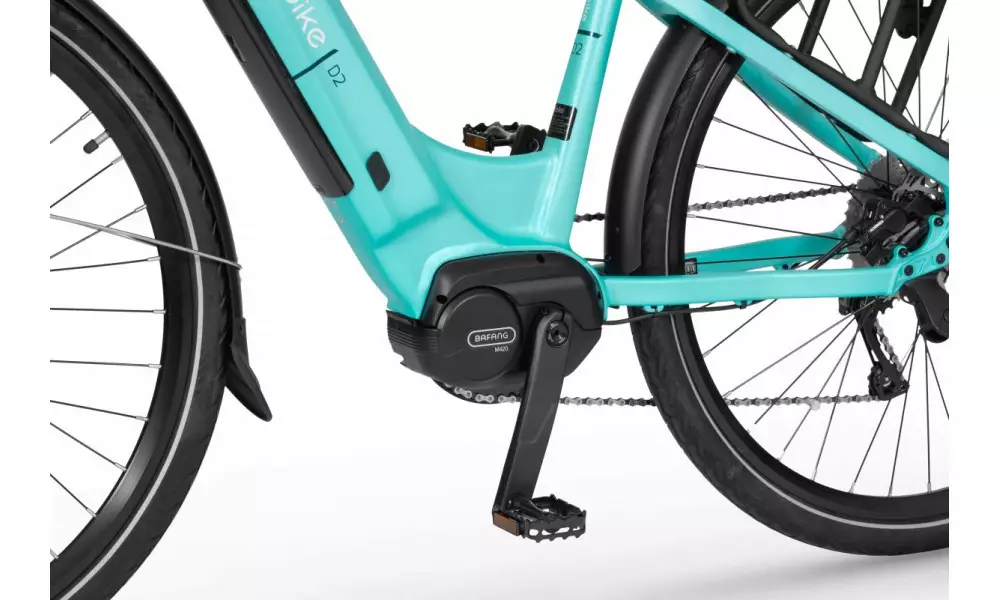

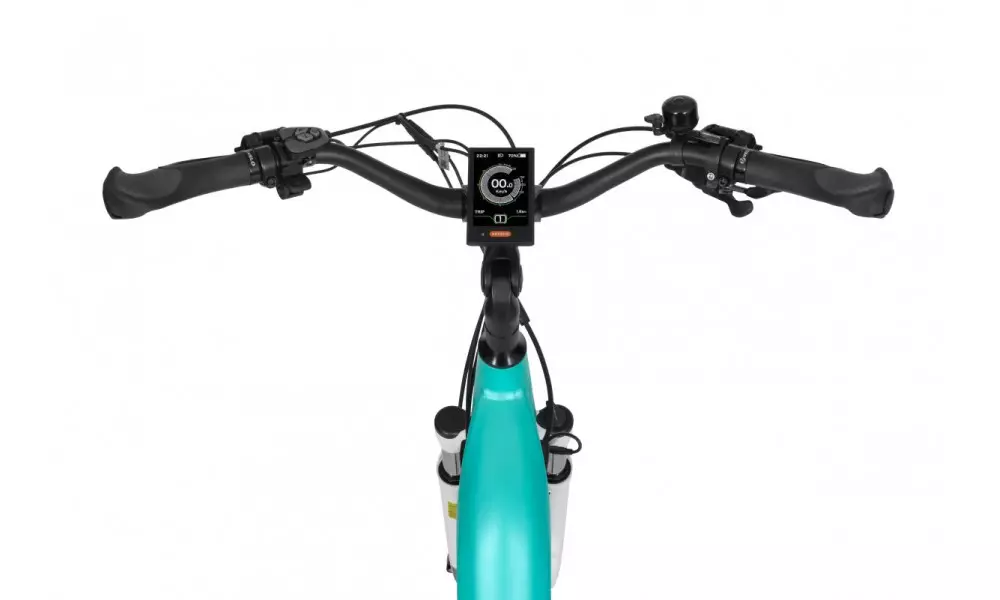

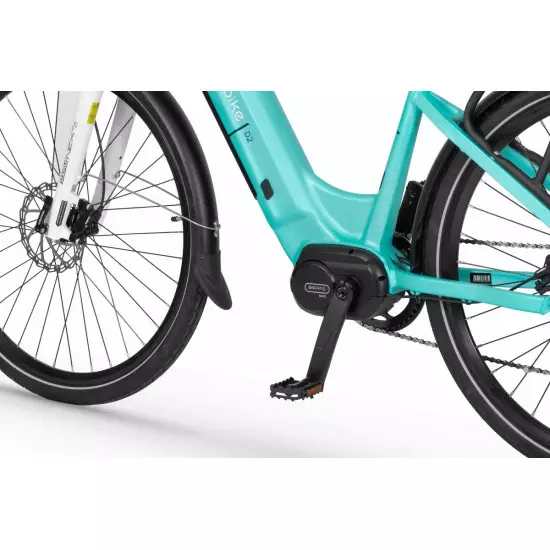

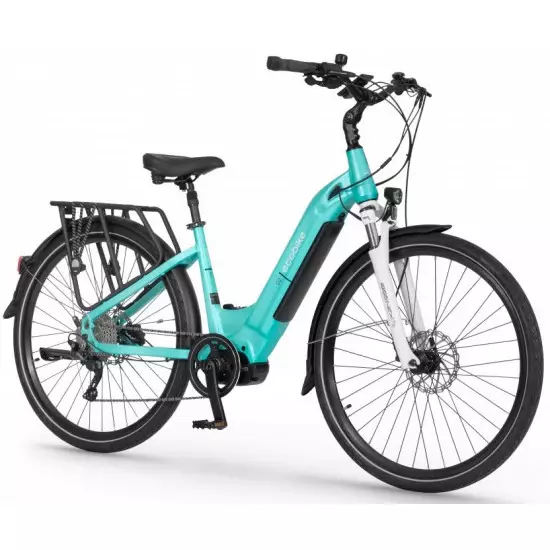

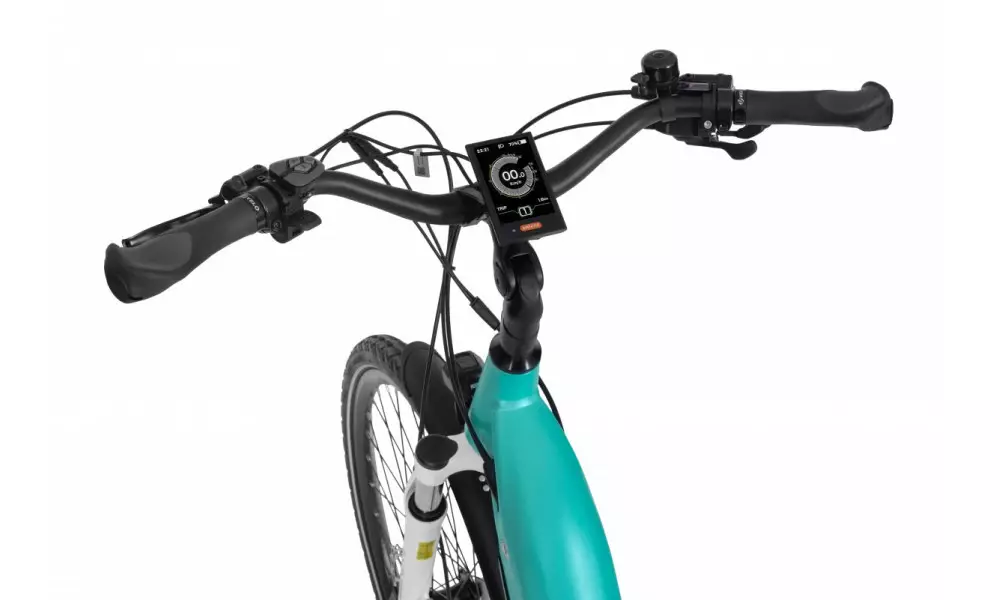

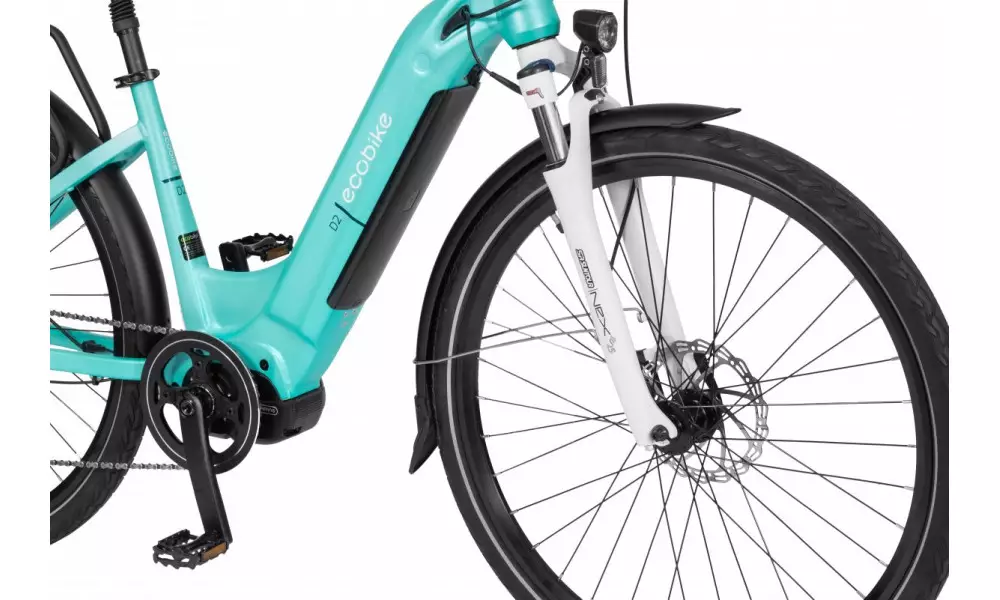

To quote the performer of the test, "... the EcoBike D2 City is a good all-round hybrid that is both a good buy at this price and a bike that we can confidently recommend." A bicycle with a system of a reliable brand - BAFANG! Travel the routes with the support of new technological solutions, with the comfort and joy of using the Ecobike that accompany you! A bicycle designed for traveling, both small and large, the new shape makes the bicycle extremely stable and durable, and the modern design will attract the eye of many passers-by, fitting into any landscape. The new central drive unit in our collection - BAFANG M420 (48V) - with an intelligent assistance system, will allow you to experience the unique experience of smooth cycling, and the maximum speed in combination with a 48V 14Ah battery on LG cells will give you the opportunity to reach any destination on time ! You will surely like the control panel with a color display. It has been equipped with a dusk sensor that automatically turns on the bicycle's lighting after dark. The user-friendly interface ensures easy, intuitive operation, and there are many functions and configuration options for electric support. At Ecobike, technological progress meets passion for bicycles. The D2 is a proud example of this - in addition to proven technology, it could not lack reliable components. Bike traction like this is essential. We took care of it using a SunTour SF15 NEX-E25 suspension fork with 63mm of travel and TRC 28x1.95 tires. A high level of safety is ensured by hydraulic disc brakes ALHONGA. The derailleur in an e-bike with a mid-motor must be very durable, in D2 City we used the Shimano DEORE model. We equipped the bike with complete lighting, fenders, a rack and a comfortable VELO saddle so that each of us can enjoy the ride right after opening the box!
Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.
14.5Ah: 75-125 km (MAX POWER - MAX ECO)
Voltage: 48 V
Mount: Central (mid-drive)
Motor assisted speed: 35 km/h (Limited to 25 km/h in accordance with EU standard EN 15194)
Torque: 80 Nm
Motor's brand: Bafang (M420)
Power: 250 W
Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 720 W
Lifespan: 700 charges
Voltage: 48 V
Charger: 220-240V/48V / 2A
Cells brand: LG
Smart BMS (Battery Managment System)
Battery can be removed for charging
CHARGING TIME: 6-8 hours
FRAME: Hydroformed aluminium
FRAME SIZE: 17"
FORK: SR Suntour NEX suspension
BRAKES: Alhonga HJ-HT472 hydraulic
CHAINWHEEL: 1-speed, 44T
REAR DERAILLEUR: Shimano Deore 10-speed
FREEWHEEL: Shimano CS-M4100 11-42T 10-speed
HANDLEBAR: Promax 700 mm 31.8
STEM: Promax 0 - 40° / 90 mm, aluminium, adjustable
HUBS: Front hub: KT-SN6F / Rear Hub: KT-SN6R
RIMS: 28", reinforced
SADDLE: Velo VL-8089E
SEAT POST: Promax, diameter: 27.2mm, length: 350mm
SHIFTERS: Shimano Deore 10-speed
SPOKES: stainless steel, SAPIM
TYRES: 28 x 1.75 (47-622)
WEIGHT: 24,9 kg
MUDGUARDS: For front and rear wheel, with u-stays
GRIPS: Velo VLG-1189AD3
KICKSTAND: Rear, adjustable length, aluminium
CARRIER: Aluminium, max.: 25kg, with carrier straps
LIGHTS: Rear: Spaninga MLL XE / Front: Spaninga KENDO XE
Length: 182 cm
Distance from saddle to stem: 58.5 cm
Height (max saddle-ground): 108 cm
Height (max handlebar-ground): 119 cm
Height (seatpost clamp-ground): 77.5 cm
Height (frame overstep-ground): 48 cm
Maximum load: 125 kg
Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
Lifespan - stated number can be lower if stored and used improperly
Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
- Toote nimi
- Elektrijalgratas Ecobike D2 City 29" 48V 2023 menthol
- Toote kood
- Raami materjal
- Eesmine amortisaator
- Tagumine amortisaator
Jalgratas tarnitakse tootja originaalpakendis (tavaliselt eemaldatud esiratta, juhtraua, sadulaga), mis tagab kaupade ohutuse ladustamisel ja transportimisel. Ostes sellises pakendis jalgratta, peab Ostja ise või tema valitud rattameister selle sobivalt kasutamiseks ette valmistama – kokku panema, ühendama ja reguleerima.
Enne väljasaatmist valmistatakse jalgratas ette sõitmiseks – pannakse kokku, reguleeritakse ja pingutatakse. See tarnitakse pakendatuna spetsiaalsesse pappkarpi. Peale jalgratta kättesaamist tuleb vaid ühendada ja kinnitada pedaalid, seadistada juhtraud ning sadul õigesse asendisse ja saabki sõitu alustada. Laste jalgratastele võib olla vaja kinnitada ka abirattad ja -varras, kui need on komplektis. Täiendavalt ostetud tarvikute ning aksessuaaride paigaldamine ei sisaldu teenuse hinnas.
