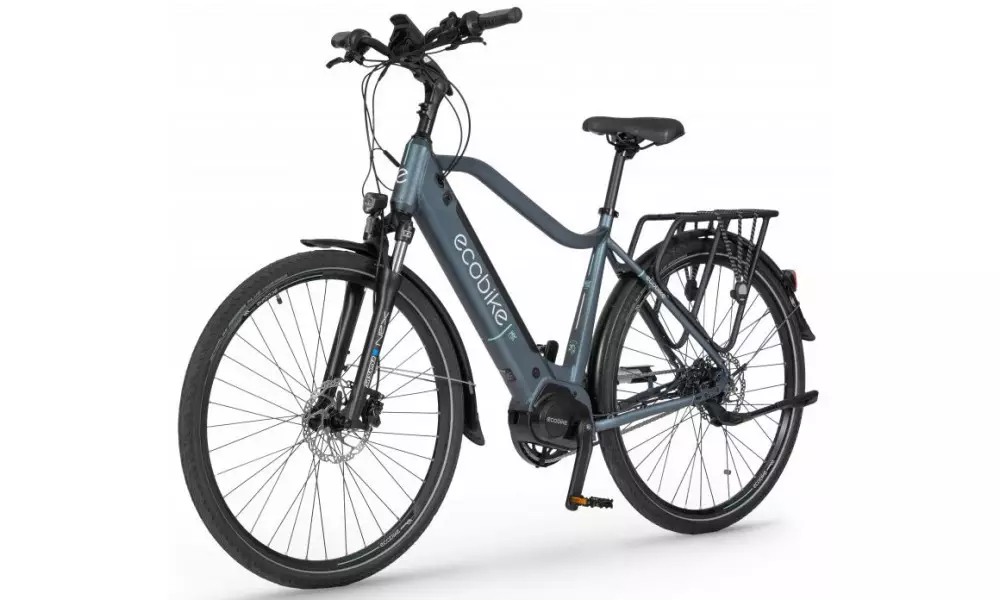

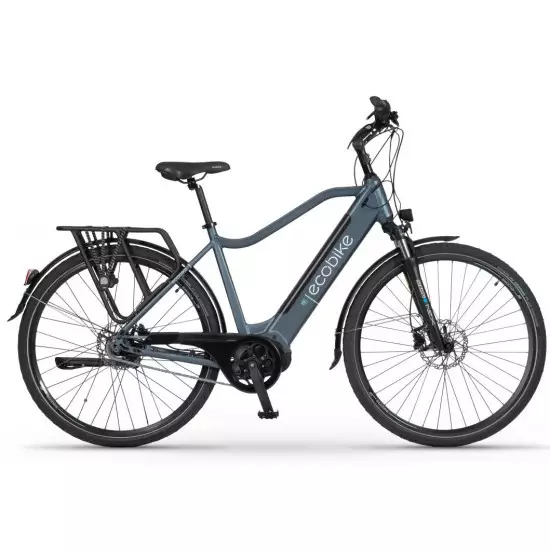

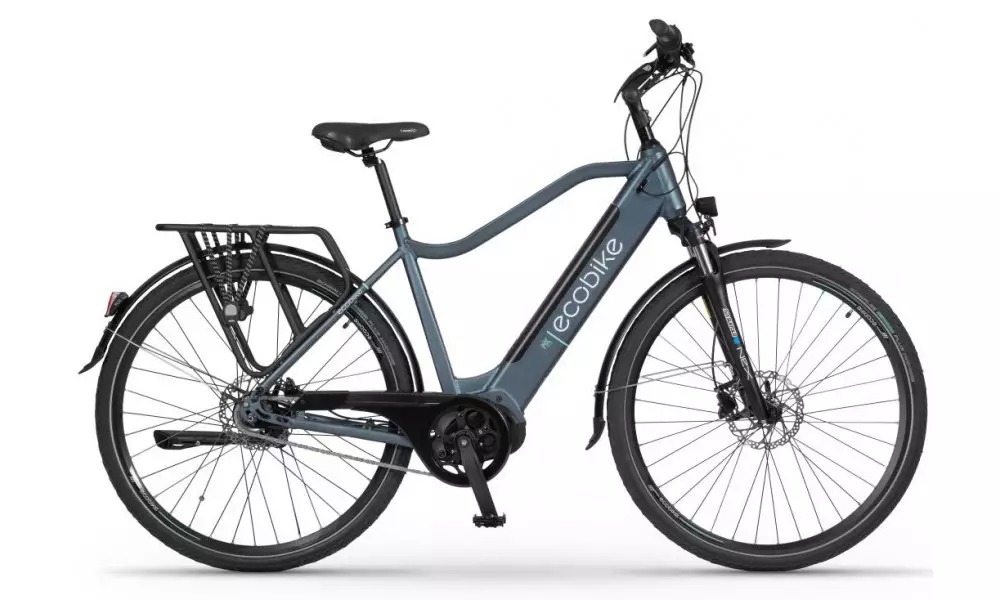

Elektrijalgratas Ecobike MX 28" 48V 2023

Toote kood: ECO23084

Raami suurus:

Toote saadavus
kuvatakse pärast suuruse valimist
Küsi toote kohta

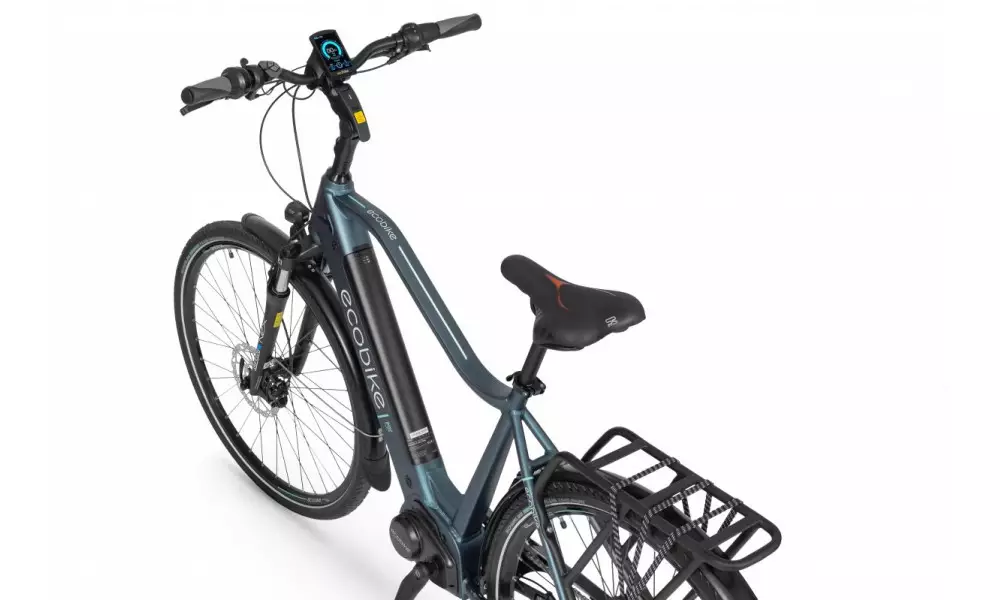

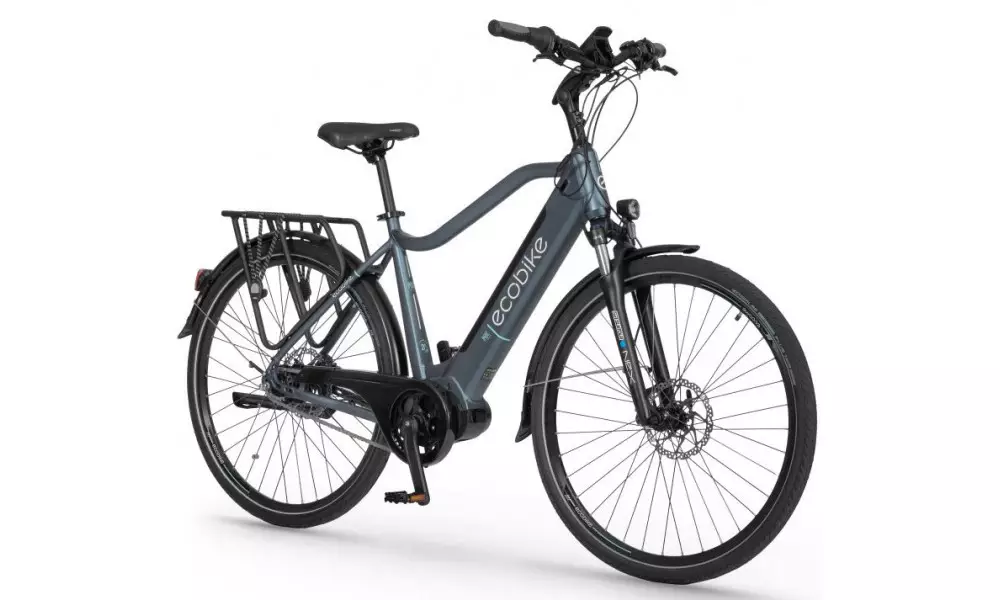

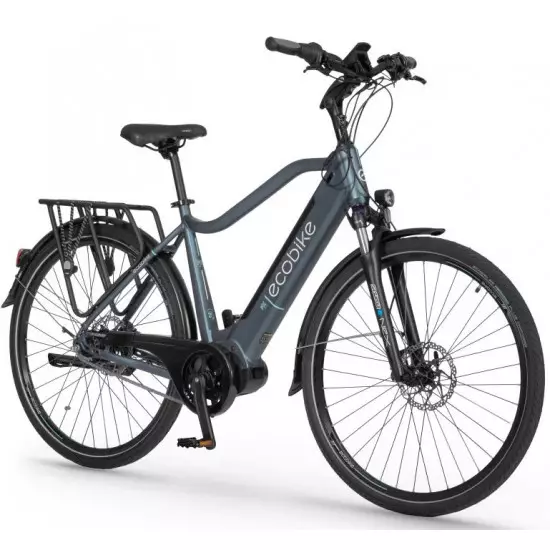

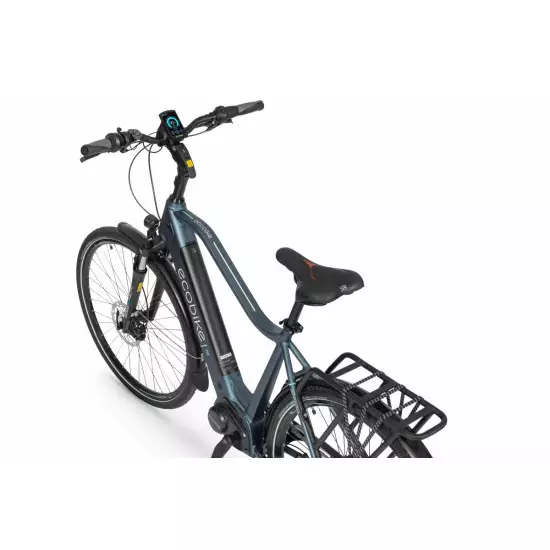

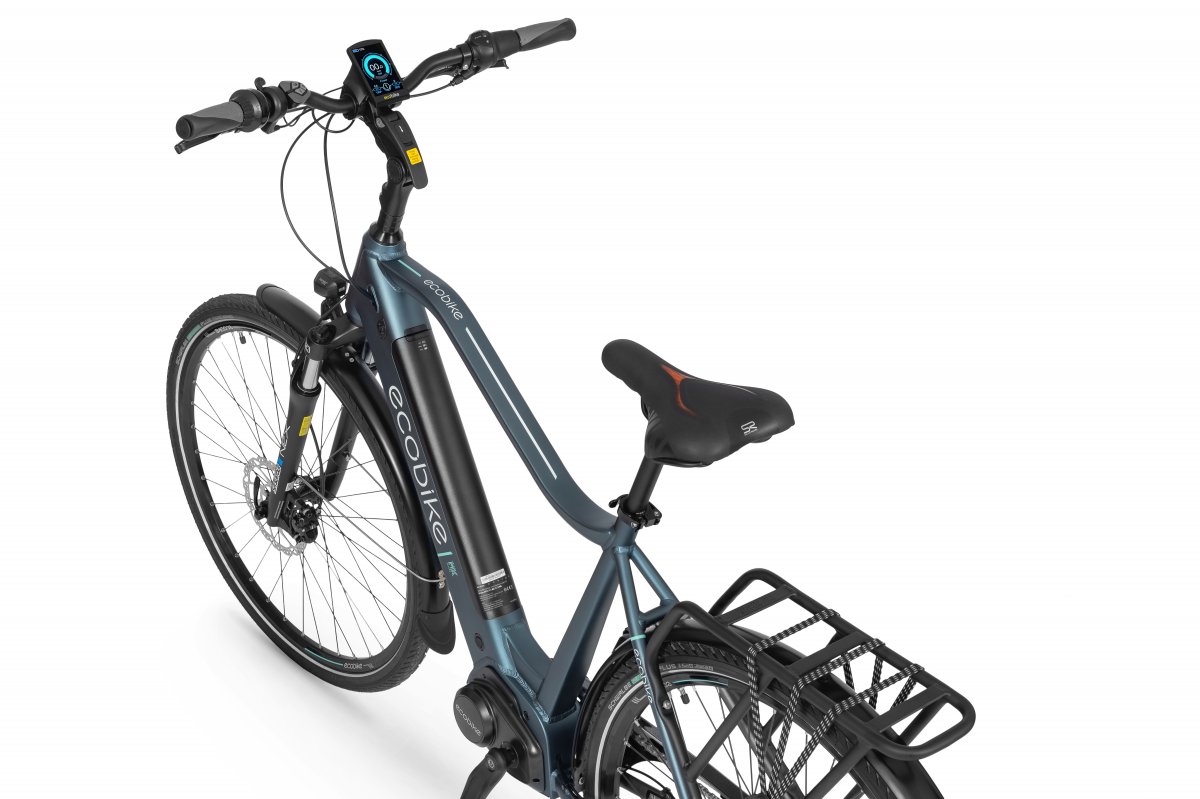

Kirjeldus - Elektrijalgratas Ecobike MX 28" 48V 2023

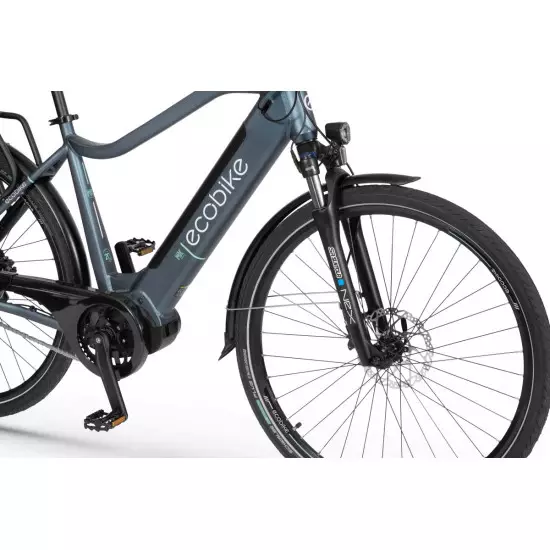

Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. The frame geometry used in the MX is not only pleasing to the eye due to a perfectly matched battery or interesting design, but also works well in practice. The new design allows you to get in comfortably and take the optimal position for short journeys or longer trips. The changed ergonomic makes a great distribution of mass, it improves the grip of the battery, as well as its insertion and removal. The heart of the Ecobike MX is the developed and used by us for a long time Ananda mid drive. Its high torque of 90 Nm ensures efficient performance support even on steep climbs. Equipped with a pressure sensor, it enhances a unique driving experience, which remains smooth even in difficult conditions. The secret of good performance is a 48V system powered by a powerful battery. You will appreciate the control panel with a color display. It has been equipped with a dusk sensor that automatically turns on the bicycle lighting after dark. The user-friendly interface ensures easy, intuitive operation, and there are many functions at your disposal and configurable electric assist. Even the best system will not provide an interesting driving experience without finest components. The Shimano Nexus 7 derailleur is the crucial position in the MX specification, which is ideal for city traffic, as you can shift gears even when stop at traffic lights. It is also characterized by great durability and resistance to external factors. We have also used a SunTour Nex shock, Shimano hydraulic disc brakes, and strong Shcwalbe Energizer Plus tires - all of which makes the MX is a solid bike that can handle many demanding routes. The Ecobike MX also has been equipped with a rack, fenders, a comfortable Selle Royal gel seat and complete lighting, so it is immediately ready for your first journey.


Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.

48V/10.4 AH: 50-80 km (MAX POWER - MAX ECO)

48V11.6Ah: 55-85 km (MAX POWER - MAX ECO)

48V/14AH(LG): 60-135 km (MAX POWER - MAX ECO)


Voltage: 48 V

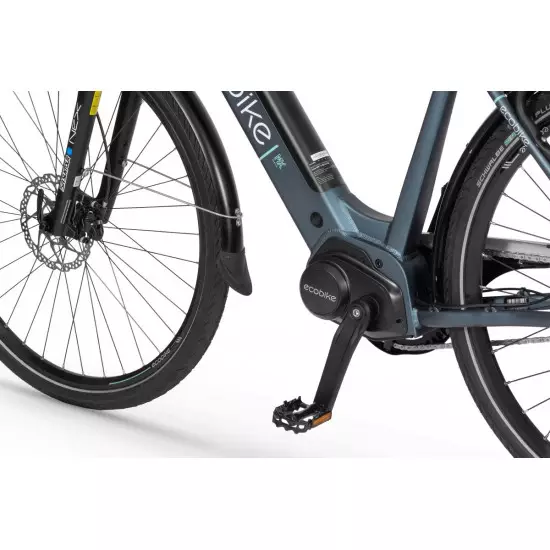

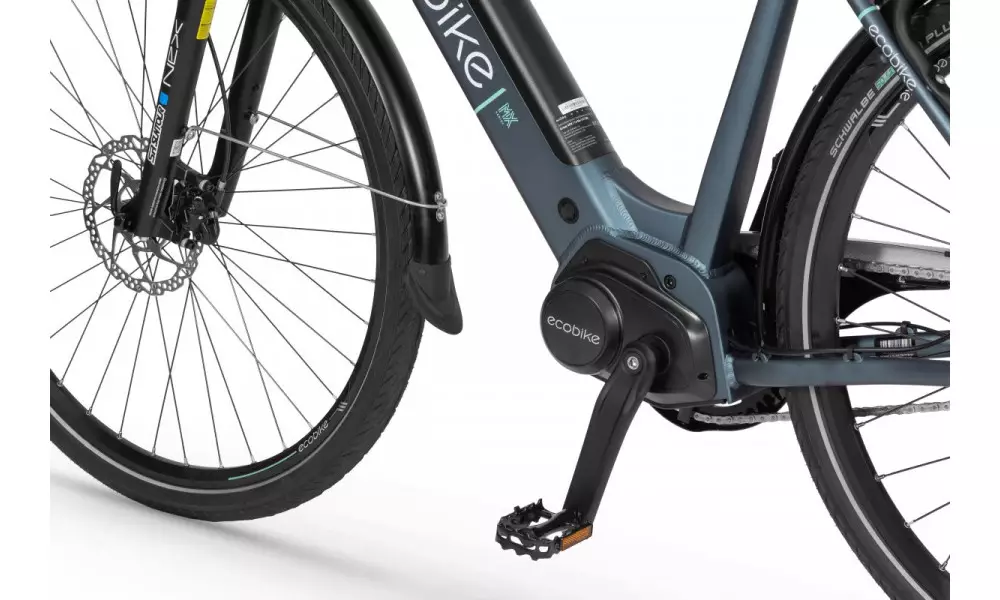

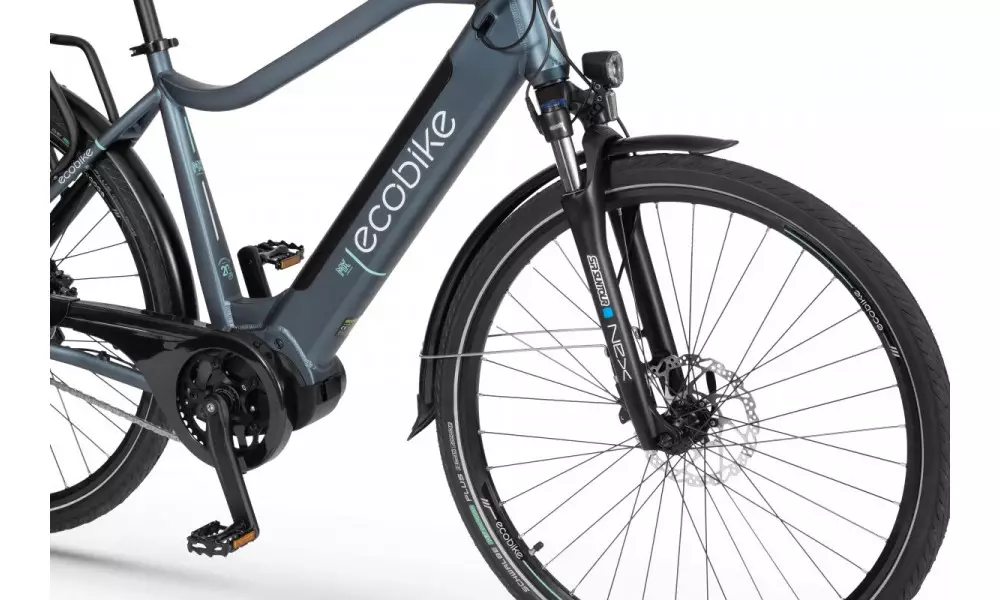

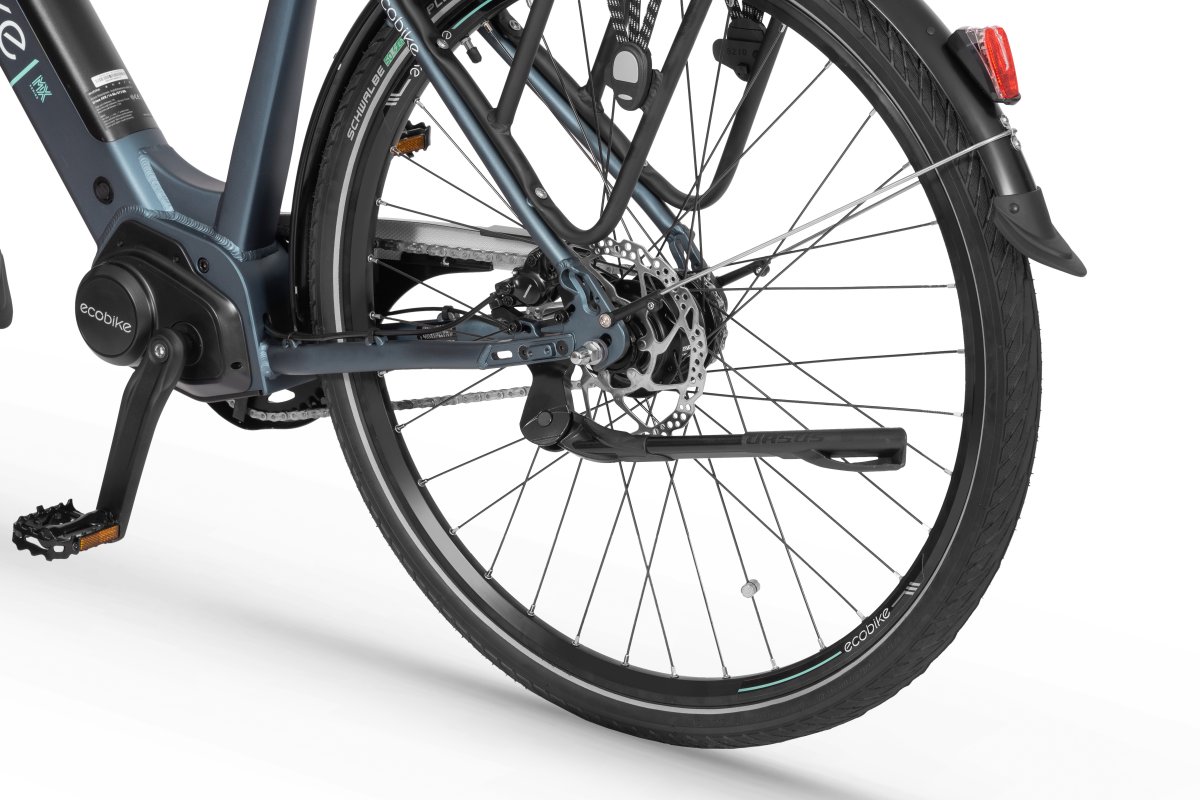

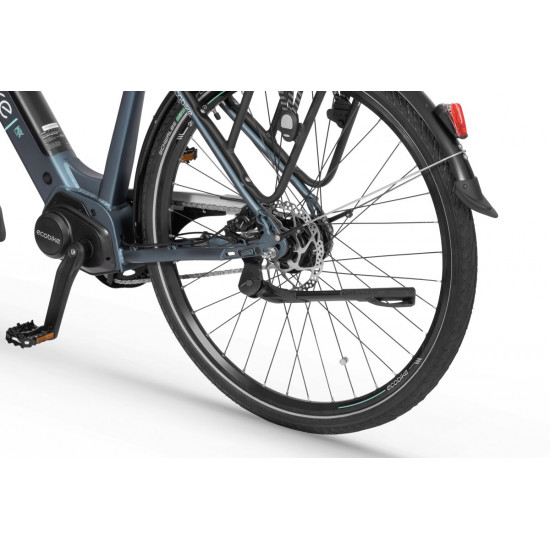

Mount: Central (mid-drive)

Motor assisted speed: 45 km/h (Limited to 25 km/h in accordance with EU standard EN 15194)

Torque: 100 Nm

Motor's brand: Ananda M81

Power: 250 W

Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 600 W

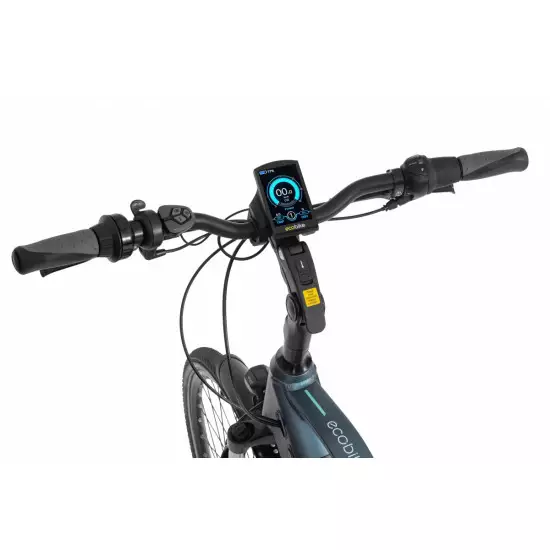

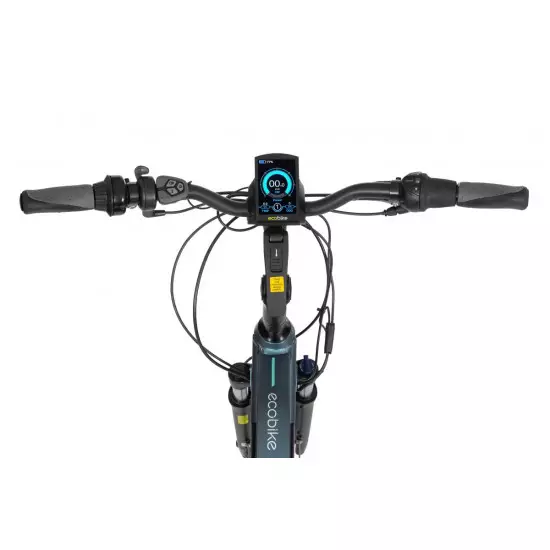

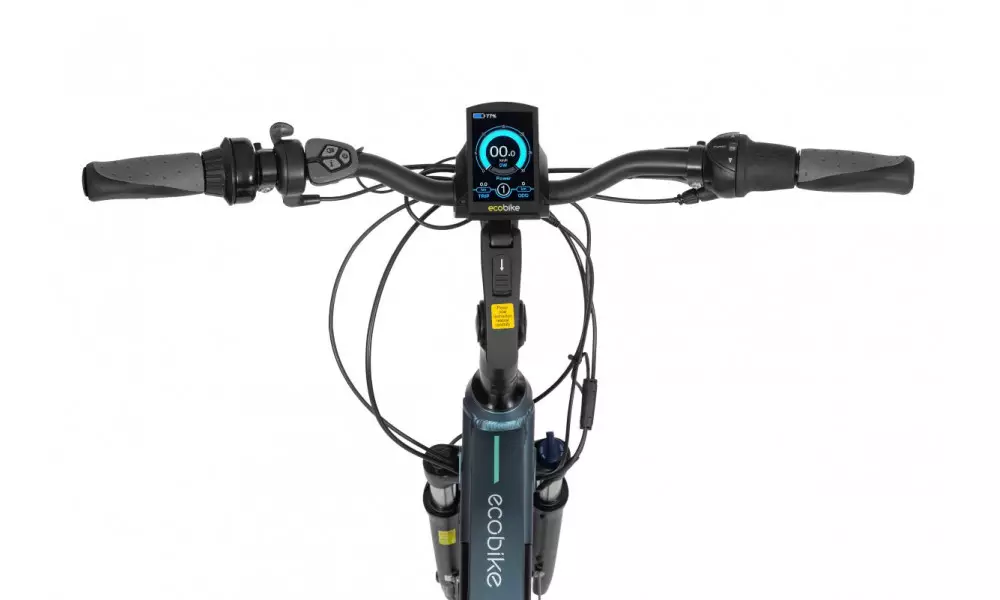

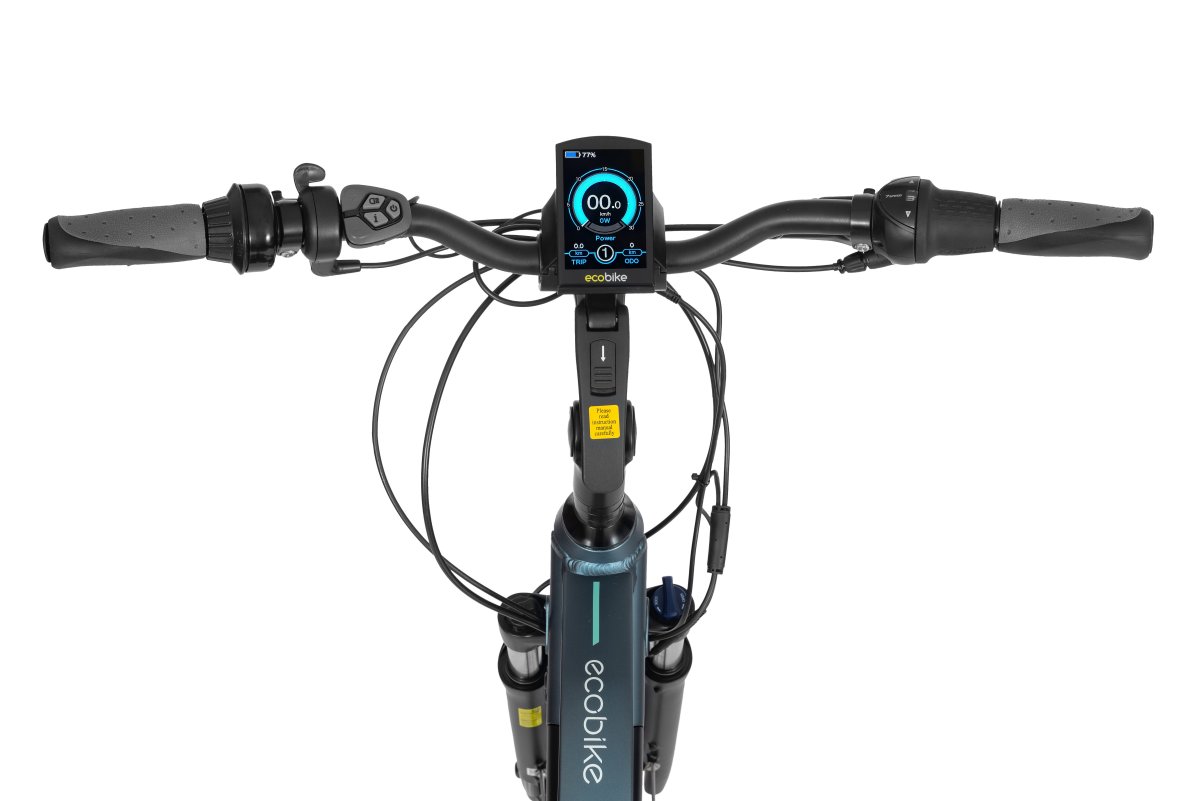

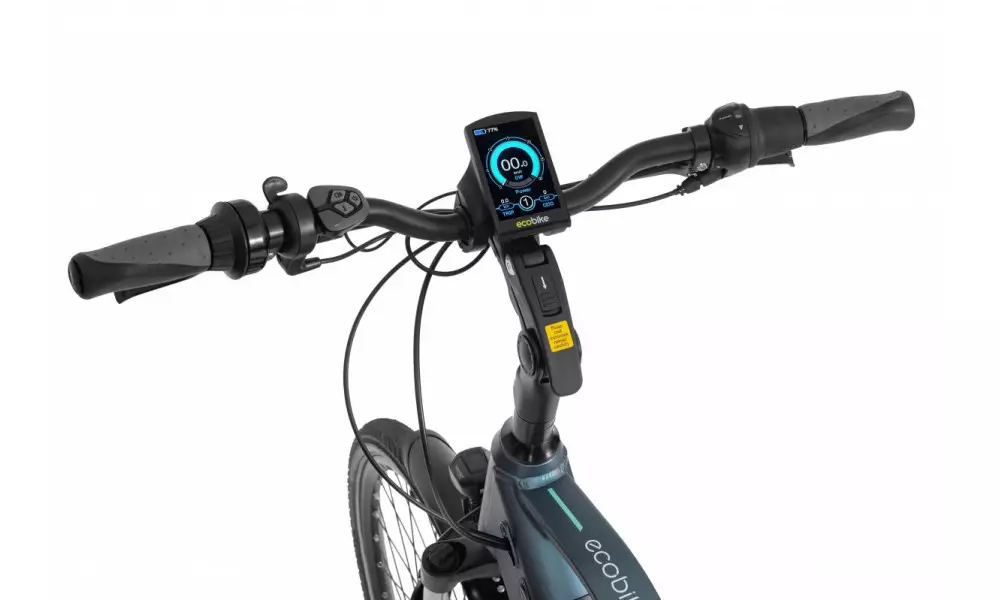

Computer: C900


Lifespan: 700 charges

Type: Li-ion

Voltage: 48 V

Charger: 220-240V/48V / 2A

Cells brand: LG

Smart BMS (Battery Managment System)

Battery can be removed for charging

CHARGING TIME: 6-8 hours

FRAME: Hydroformed aluminium

FRAME SIZE: 20" / 23"

FORK: SR Suntour NEX HLO, suspension

BRAKES: Shimano MT200 hydraulic disc




FREEWHEEL: Cog Shimano 20T

HANDLEBAR: Promax HB-T305, aluminium, diameter in stem fixing spot (center): 25.4mm

STEM: Promax MA-573, aluminium, adjustable, fork steerer: 28.6mm, length: 110 mm

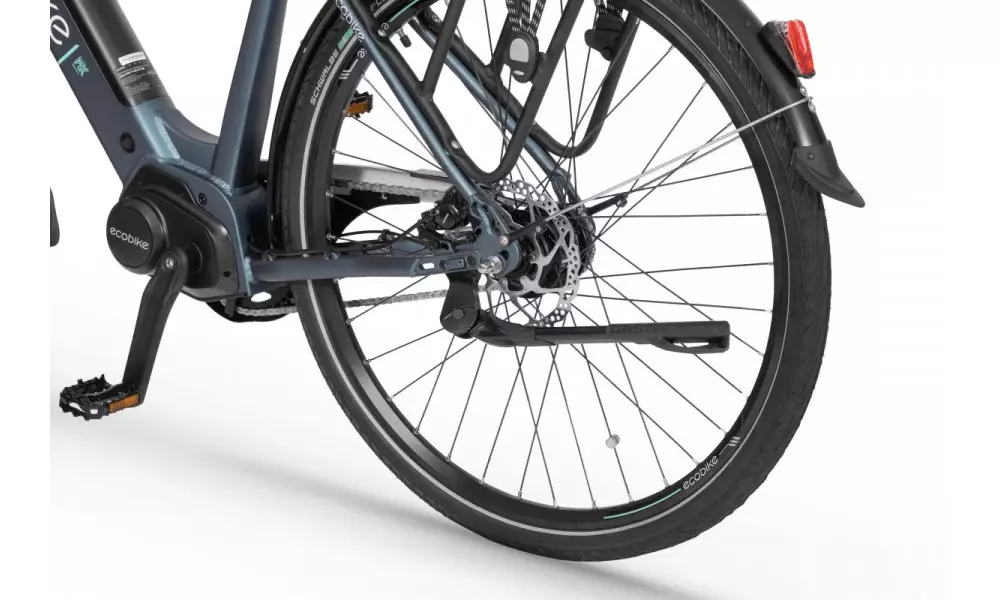

HUBS: Front hub: Shimano HB-TX505, 36H OLD:100MM AXLE:108MM CENTER LOCK / Rear Hub: Shimano NEXUS


RIMS: 28", reinforced

SADDLE: Selle Royal Lookin Basic

SEAT POST: Promax SP-252, diameter: 27.2mm, length: 350mm

SHIFTERS: Shimano NEXUS SL-C3000 7-speed

SPOKES: stainless steel, SAPIM

TYRES: Schwalbe ENERGIZER PLUS 28 x 1.75 (47-622)

WEIGHT: 27 kg


MUDGUARDS: For front and rear wheel, with u-stays


KICKSTAND: Rear, adjustable length, aluminium

CARRIER: Aluminium, max.: 25kg, with carrier straps

LIGHTS: Rear Light: Spaninga MLL XE / Front Light: Spaninga KENDO XE


Length: 184 cm

Distance from saddle to stem: 57.5 cm

Height (max saddle-ground): 111 cm

Height (max handlebar-ground): 119.5 cm

Height (seatpost clamp-ground): 80 cm

Height (frame overstep-ground): 73.5 cm

Maximum load: 125 kg

Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.

Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.

Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.

Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.

Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.

Lifespan - stated number can be lower if stored and used improperly

Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.

Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.

IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.

Video (2021):

Toote üksikasjad
Toote nimi
Elektrijalgratas Ecobike MX 28" 48V 2023
Toote kood
Raami materjal
Eesmine amortisaator
Tagumine amortisaator
Tootja pakend
Pead jalgratta ise sõitmiseks ette valmistama - Tasuta / Tarneaeg 1 - 3 tööpäeva

Jalgratas tarnitakse tootja originaalpakendis (tavaliselt eemaldatud esiratta, juhtraua, sadulaga), mis tagab kaupade ohutuse ladustamisel ja transportimisel. Ostes sellises pakendis jalgratta, peab Ostja ise või tema valitud rattameister selle sobivalt kasutamiseks ette valmistama – kokku panema, ühendama ja reguleerima.

XL pakendis
Jalgratas saadetakse kulleritega – komplekteeritud ja seadistatud + 26,90 € / Pakkimisaeg 3 - 6 päeva

Enne väljasaatmist valmistatakse jalgratas ette sõitmiseks – pannakse kokku, reguleeritakse ja pingutatakse. See tarnitakse pakendatuna spetsiaalsesse pappkarpi. Peale jalgratta kättesaamist tuleb vaid ühendada ja kinnitada pedaalid, seadistada juhtraud ning sadul õigesse asendisse ja saabki sõitu alustada. Laste jalgratastele võib olla vaja kinnitada ka abirattad ja -varras, kui need on komplektis. Täiendavalt ostetud tarvikute ning aksessuaaride paigaldamine ei sisaldu teenuse hinnas.
