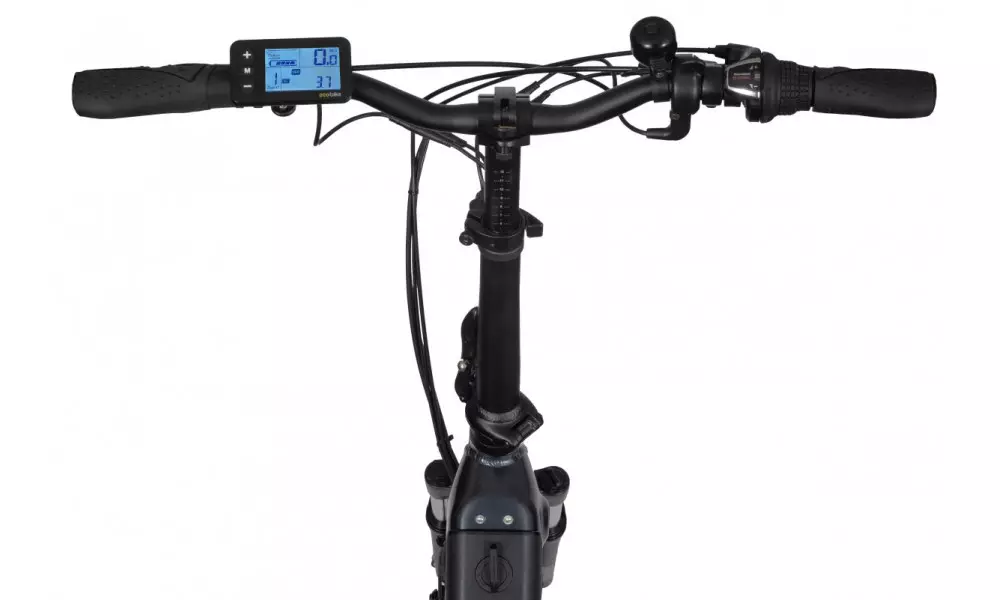

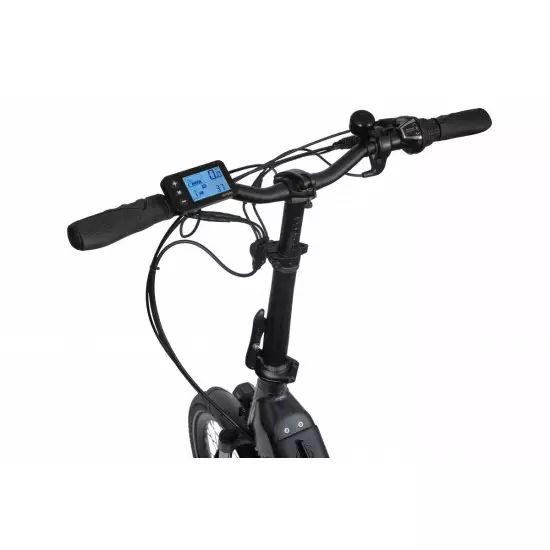

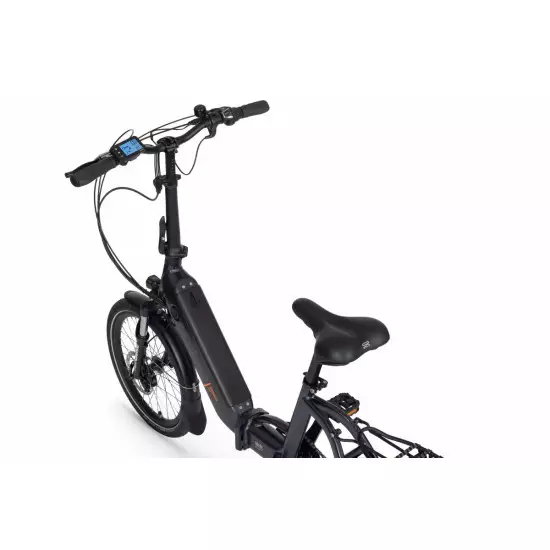

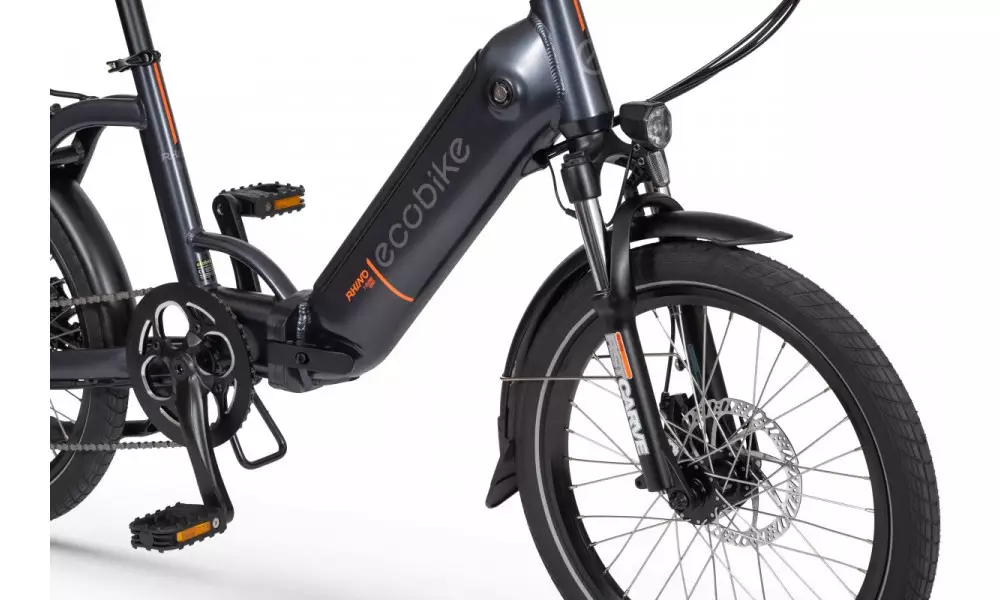

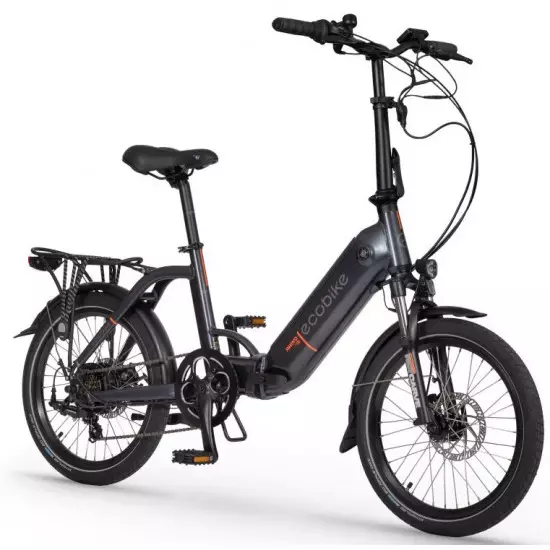

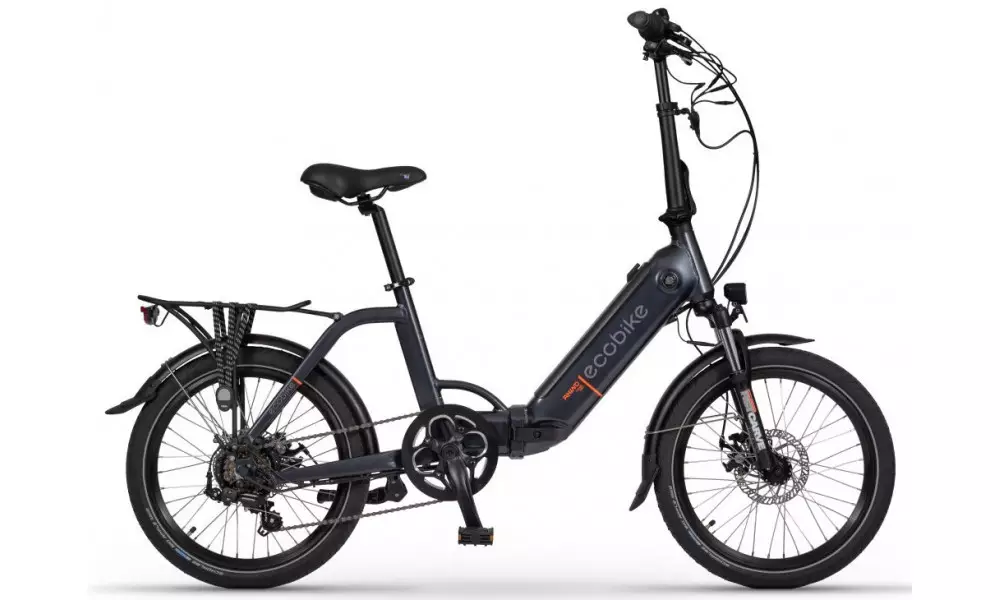

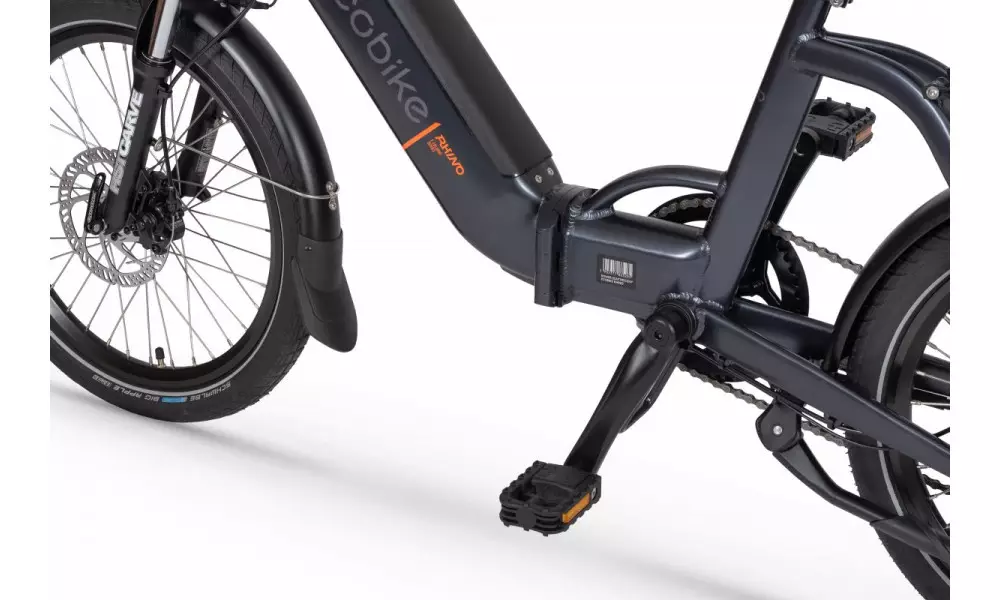

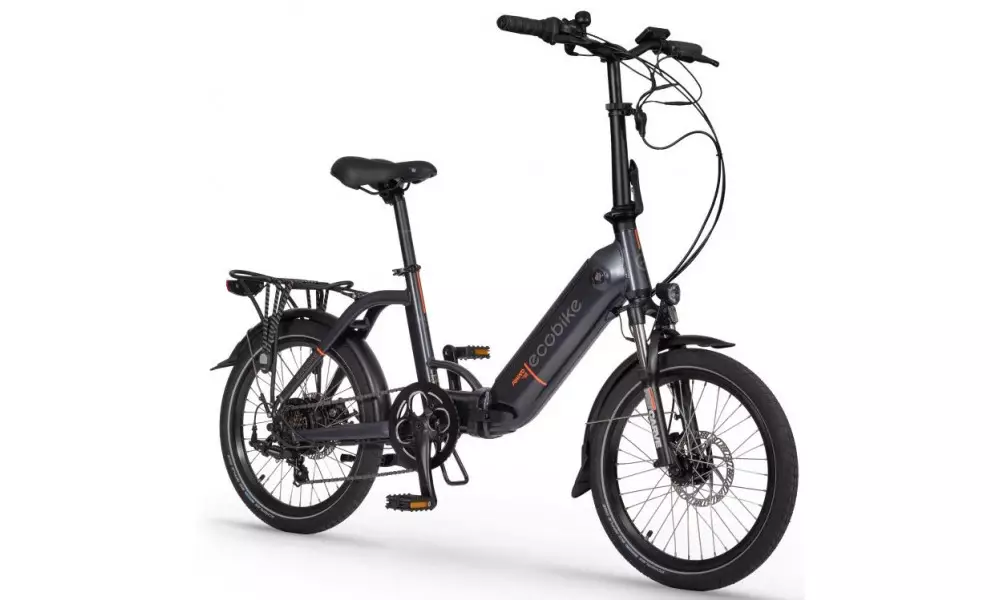

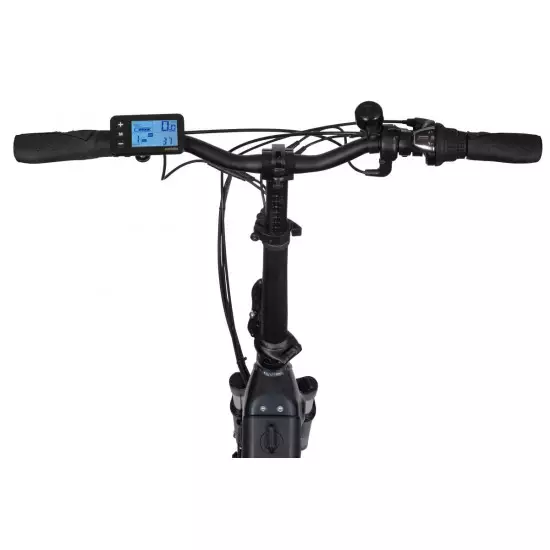

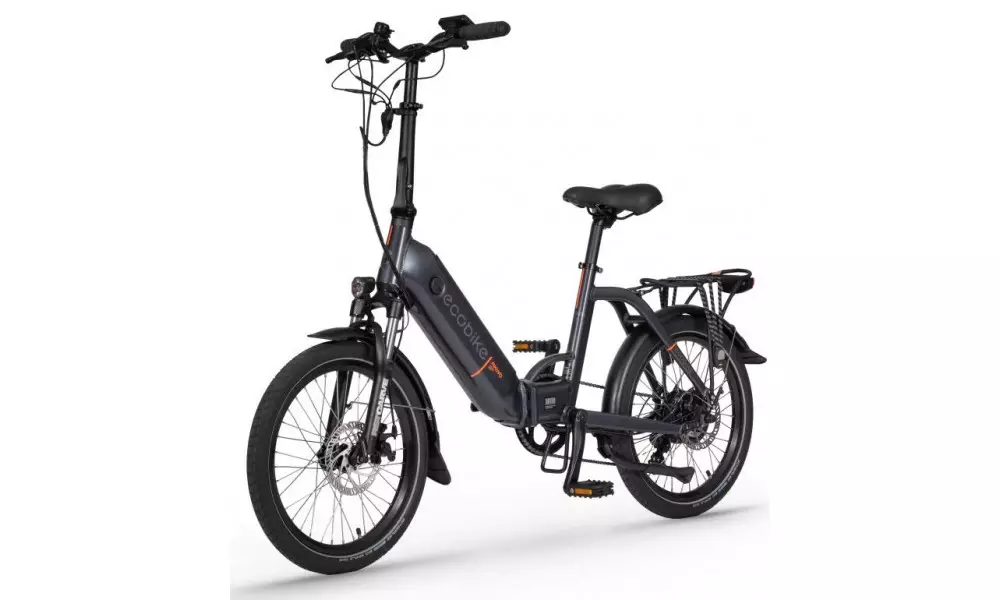

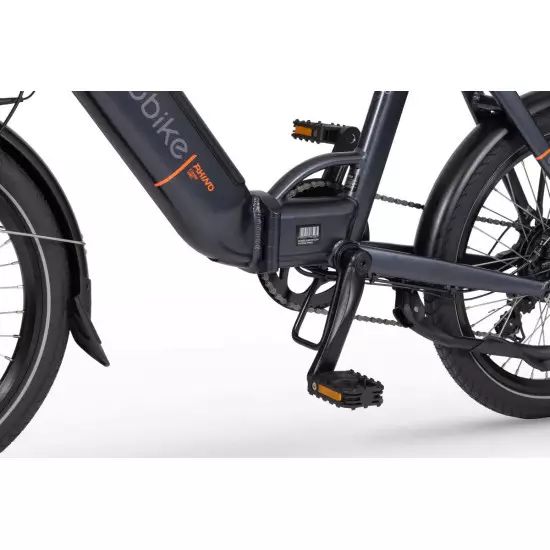

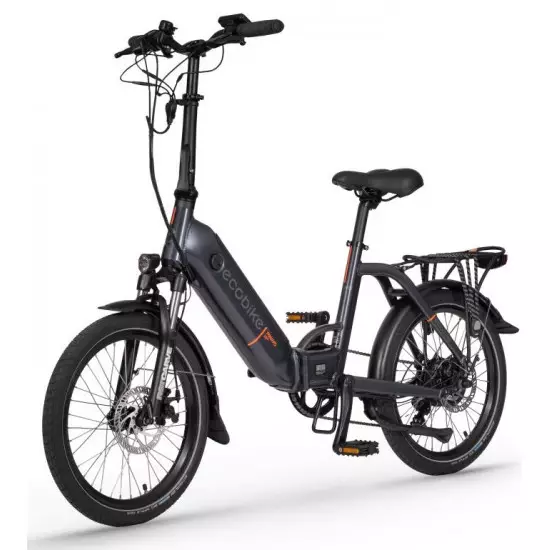

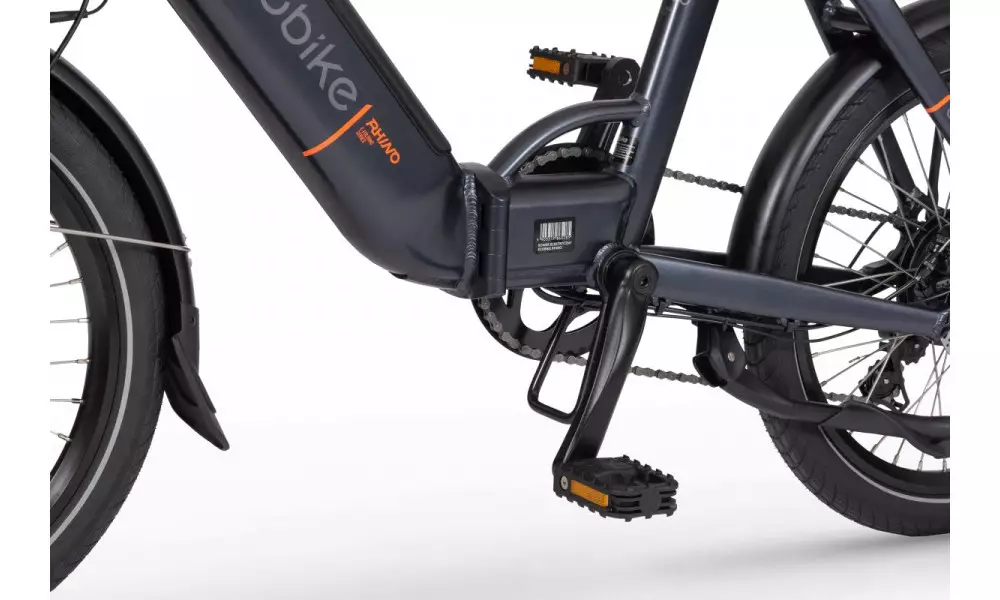

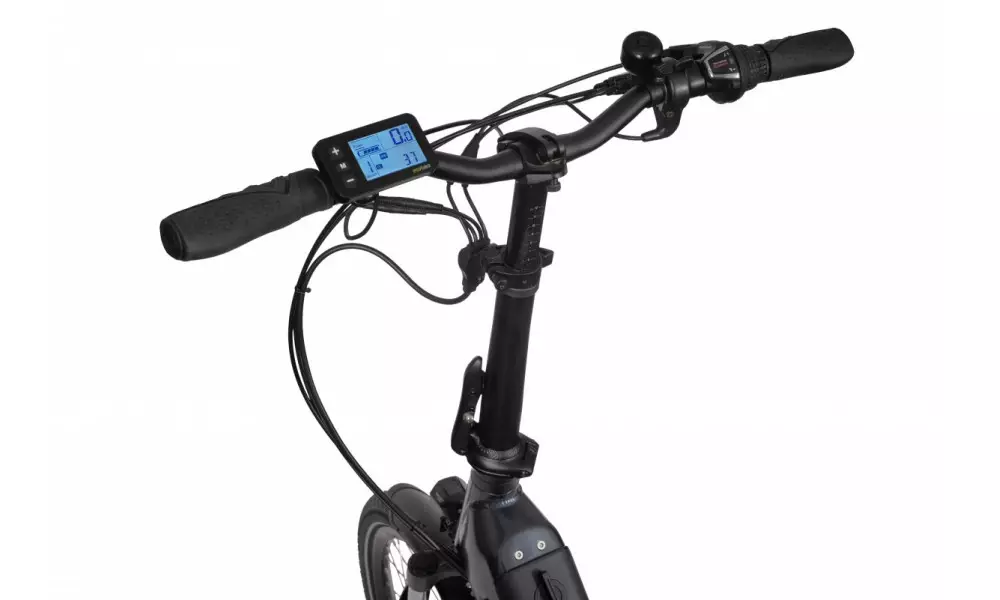

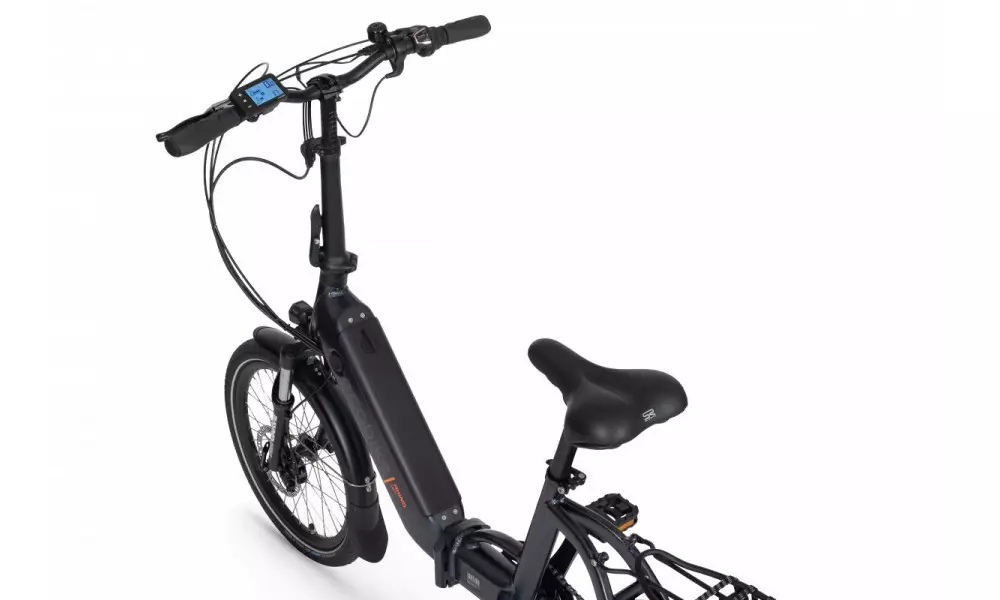

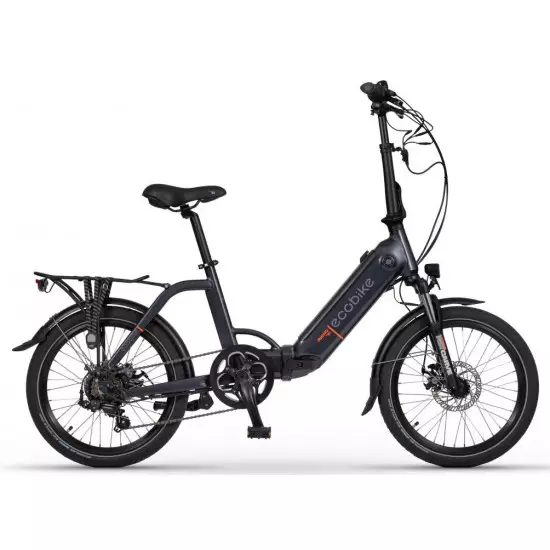

Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. A sophisticated design, reliable technology and functionality are the main elements from which Rhino has been created. The frame is the main innovation compared to other foldable electric bicycles. Thanks to a fully integrated battery, completely placed in a new, solid construction, we have obtained excellent ergonomics, and the bike looks great. It has become more convenient to insert and remove the battery. There are two configurations to choose from: 14.5 and 16 Ah. Rhino's electric system is based on a technology appreciated by users. The proven Bafang motor works in the rear wheel's hub, with the support of a modern controller. The assistance is managed via an easy-to-use LCD display. Apart from many possibilities of setting the motor work, it also shows a lot of necessary information about the entire system and user activity. The whole is complemented by durable Shimano accessories, RST Carve shock absorber and IMPAC tires that are durable and provide great comfort.
Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.
14.5Ah: 75-125 km (MAX POWER - MAX ECO)
16AH(LG): 100-130 km (MAX POWER - MAX ECO)
Voltage: 36 V
Mount: rear wheel hub
Motor assisted speed: 30 km/h (Limited to 25 km/h in accordance with EU standard EN 15194)
Torque: 35 Nm
Motor's brand: BAFANG
Power: 250 W
Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 320 W
Fuses: 30 A
Lifespan: 700 charges
Charging time: 4-8 hours
Voltage: 36 V
Charger: 220-240V/42V / 2A / D type
Cells brand: Greenway / LG
Smart BMS (Battery Managment System)
Battery can be removed for charging
CHARGING TIME: 4-8 hours

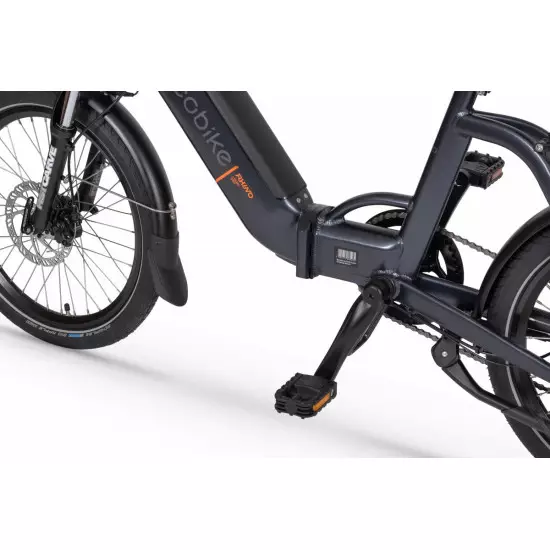

FRAME: Hydroformed aluminium
FRAME SIZE: 15"
FORK: RST CARVE-P-20, suspension
BRAKES: Tektro MD M300 mechanical
CHAIN: KMC Z7 106 L
CHAINWHEEL: Prowheel 46T
REAR DERAILLEUR: Shimano MF-TZ500 14-28T 6-speed
FREEWHEEL: Shimano MF-TZ500 14-28T 6-speed
HANDLEBAR: Promax HB-T305, aluminium, diameter in stem fixing spot (center): 25.4mm
HUBS: Front hub: JOY 751DSE / Rear Hub: Engine
PEDALS: VP F55 foldable
RIMS: 20", reinforced
SADDLE: Selle Royal Freeway
SEAT POST: Promax 30.4 / 350 mm
SHIFTERS: Shimano Revoshift 6-speed
SPOKES: stainless steel, SAPIM 13G / Front wheel: 178 mm / Rear wheel: 136 mm
TYRES: Schwalbe Big Apple 20 x 2.0 (50-406) / Impac BigPac TwinSkin 20 x 2.0
WEIGHT: 21,8 kg
MUDGUARDS: For front and rear wheel, with u-stays
GRIPS: VELO VLG-519AD2
KICKSTAND: Rear, adjustable length, aluminium

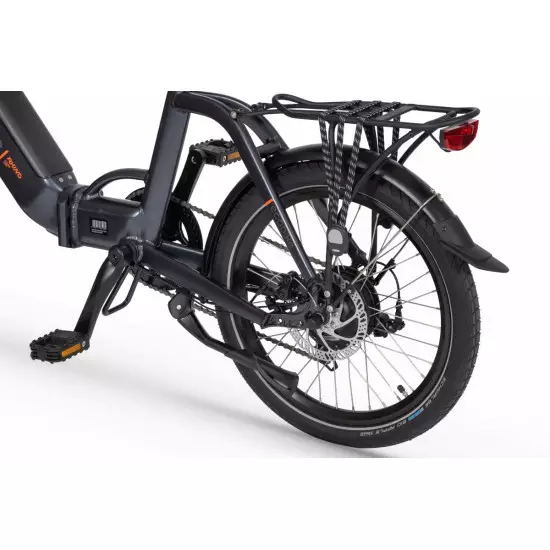

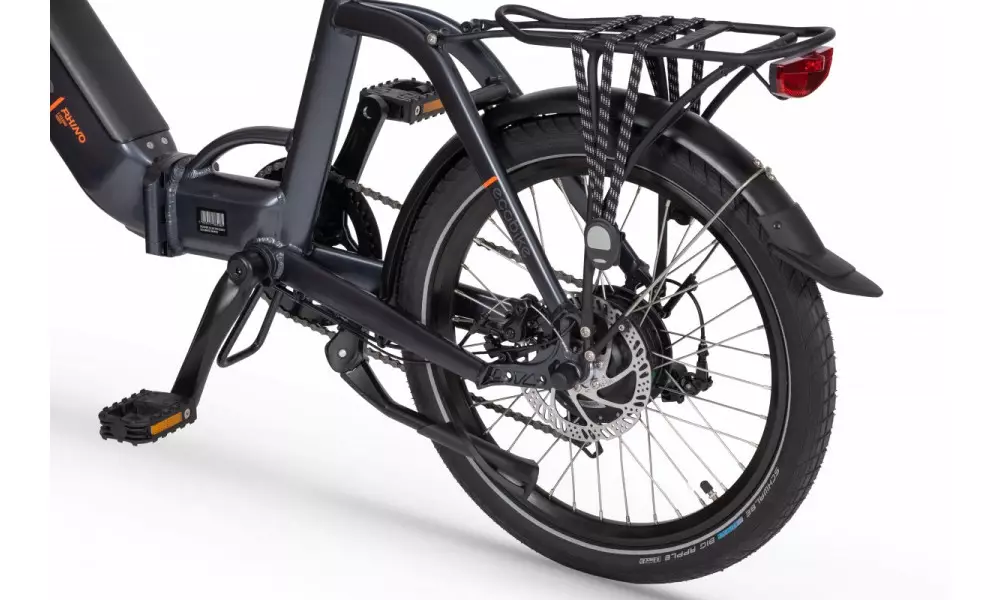

CARRIER: Aluminium, max.: 25kg, with carrier straps
LIGHTS: Rear Light: Spaninga RL1900XE / Front Light: Spaninga KENDO XE
Maximum load: 125 kg
Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
Lifespan - stated number can be lower if stored and used improperly
Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
