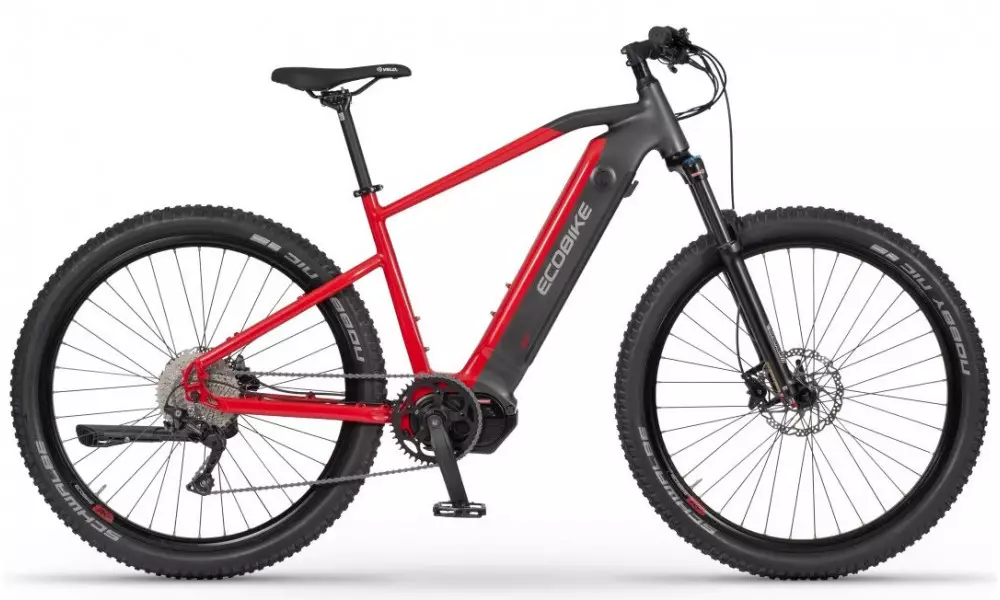

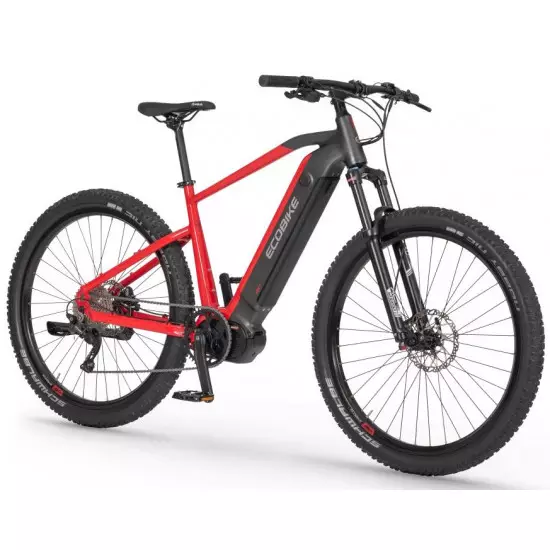

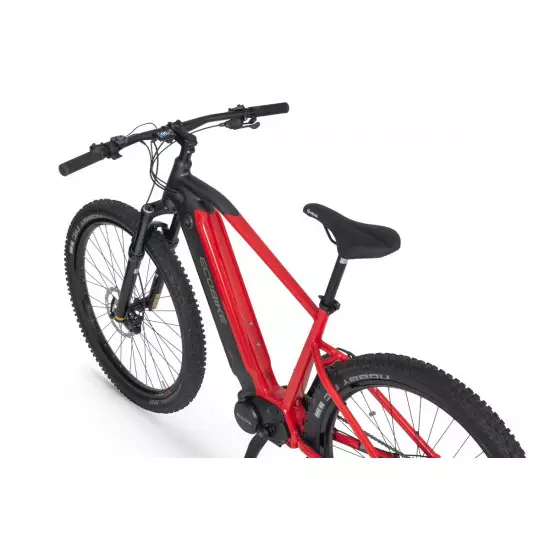

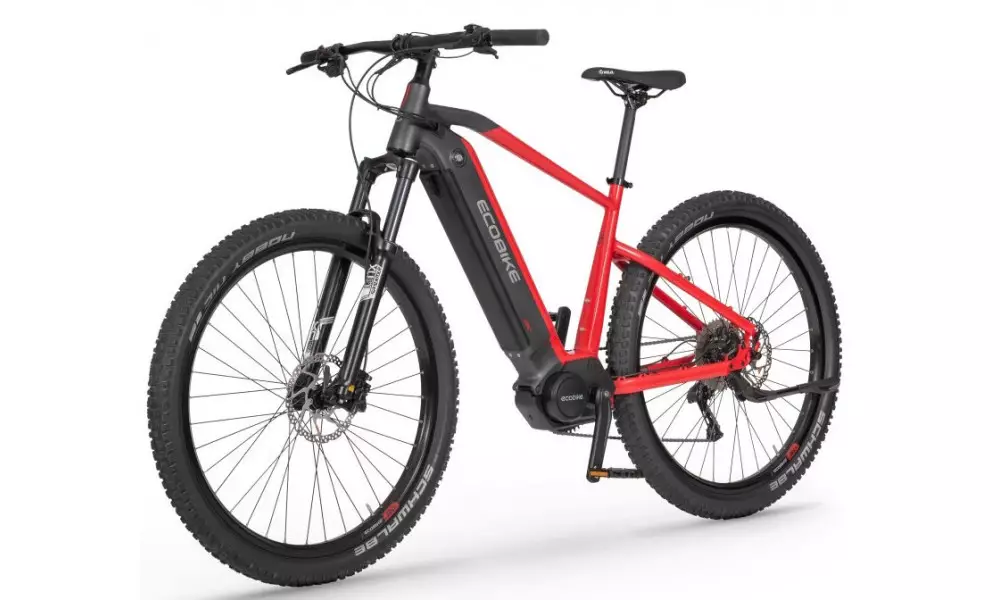

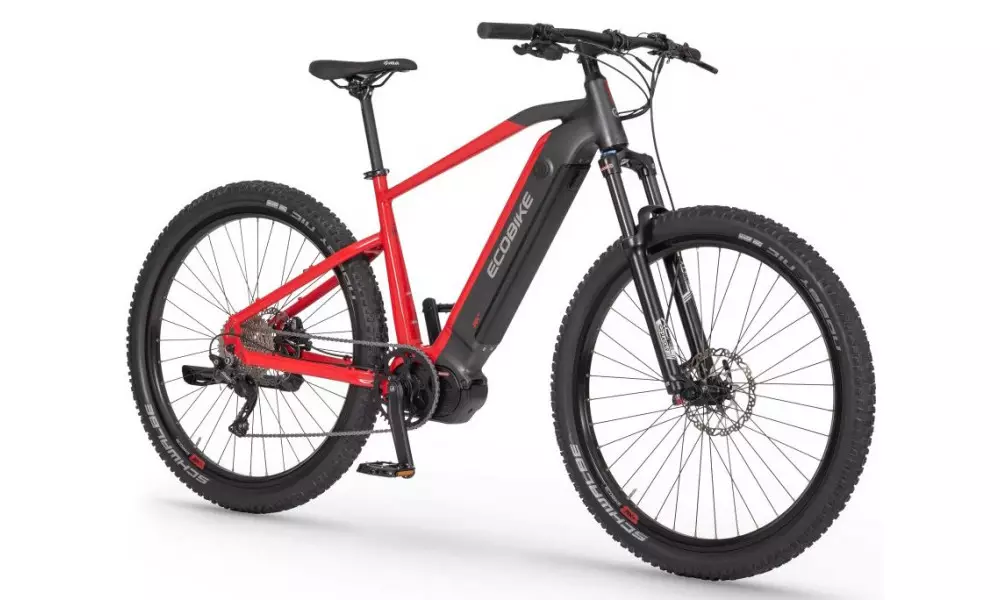

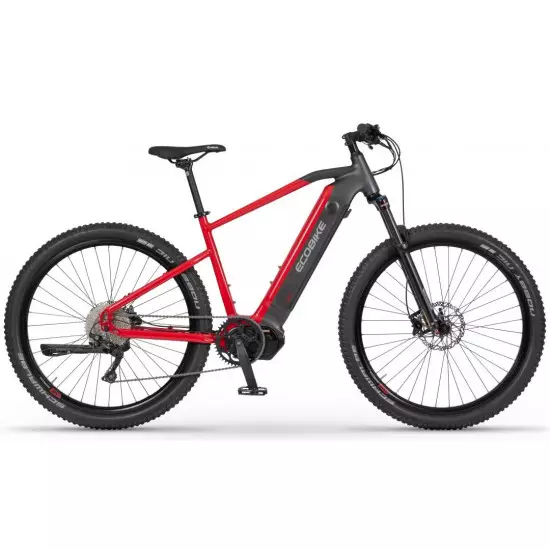

Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. Forget about all you haven't been able to achieve before. Choose a destination, and the technology will make sure you are exactly where you want. Meet the new RX500 model and see, how easy today is what seemed impossible yesterday. Ecobike RX500 is an MTB e-bike equipped with the most advanced solutions available on the market. The heart of the bike is the Ananda middrive, which develops a maximum power of 960W, and its torque reaches up to 136 Nm. Such power in two-wheelers so far has been only available for motorcycles. That is why you will overcome any hill with amazing ease. Places you have never reached by bike will become a new direction of your adventures, and even a simple ride will provide you with a lot of emotions. The energy used by the electric drive system comes from a 48V LG battery. You can choose two options: 13 Ah with 624 Wh, 14.5Ah or 17.5 Ah with 840 Wh. Interconnected intelligent engine and battery systems will ensure that you can enjoy your ride as long as possible. The battery has a SMART BMS system that constantly monitors its operation and records the charging circuits. The system is supported by a display with a color screen. It has been equipped with a dusk sensor that automatically adjusts the screen backlight to the conditions in which you are moving. Its friendly interface ensures intuitive navigation between individual functions and settings. Advanced technology requires an appropriate setting, but ergonomics and safety are the key. Frame concept makes the bike look great - the integrated battery is almost invisible, and the motor discreetly reveals its hidden potential. So that the good impression is not spoiled by the feeling of driving, we paid a lot of attention to the geometry. The optimal weight distribution was achieved by placing the motor at the right angle and placing the battery at the bottom of the structure. The RX500 is equipment for special adventures, so we used the SunTour XCR-AIR LOR travel 120 mm shock absorber and large wheels with wide Schwalbe Nobby Nic 29 x 2.6 tires for good traction in difficult conditions. A powerful middrive requires a solid shifting gear - the chain is shifted by a 10-speed SRAM GX derailleur. The Ecobike RX500 makes exploring difficult terrains easier than ever!
Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.
48V/13Ah: 60-100 km (MAX POWER - MAX ECO)
48V/14AH(LG): 60-135 km (MAX POWER - MAX ECO)
17.5AH(LG): 90-150 km (MAX POWER - MAX ECO)
Voltage: 48 V

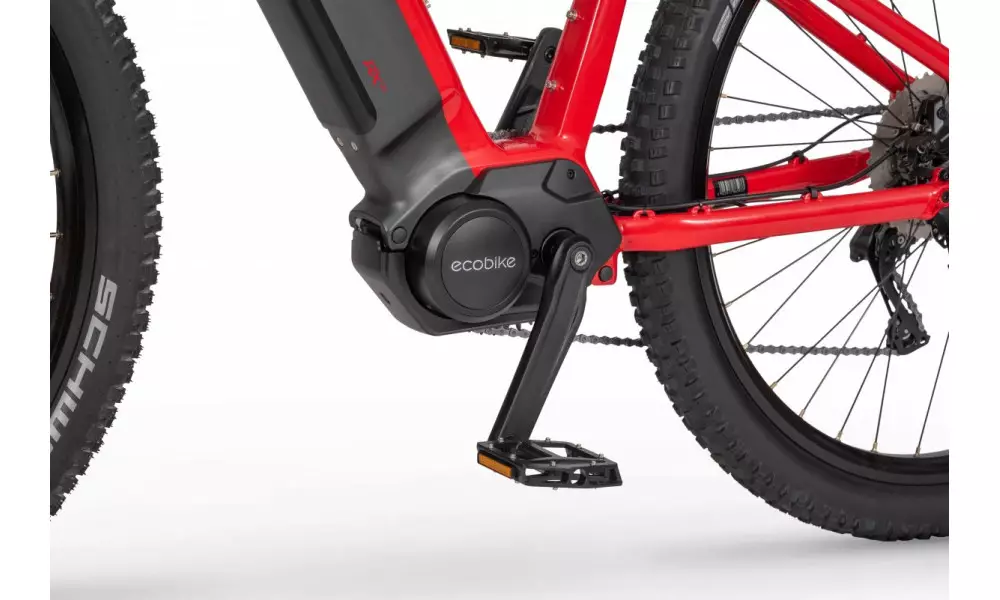

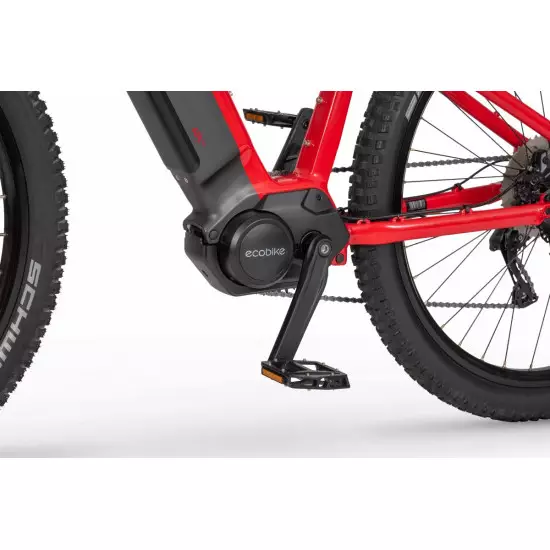

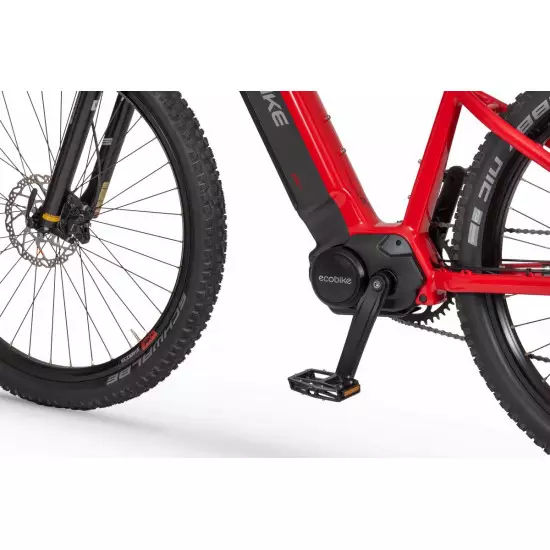

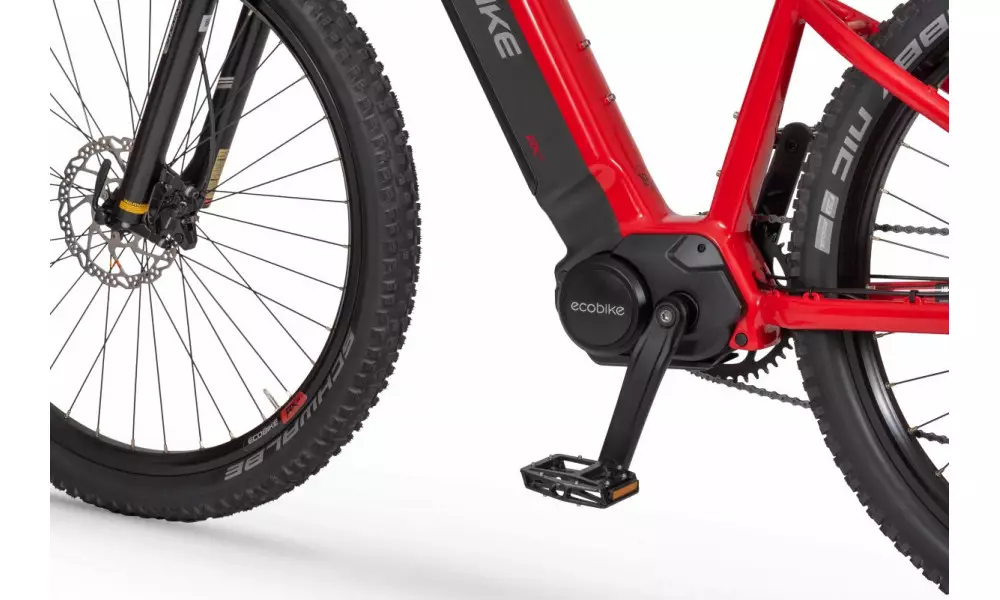

Mount: Central (mid-drive)
Motor assisted speed: 50 km/h (Limited to 25 km/h in accordance with EU standard EN 15194)
Torque: 130 Nm
Motor's brand: ANANDA
Power: 250 W
Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 780 W
Lifespan: 700 charges
Voltage: 48 V
Charger: 100-240V/54.6V 3A D type
Cells brand: LG
Smart BMS (Battery Managment System)
Battery can be removed for charging
CHARGING TIME: 7-8 hours

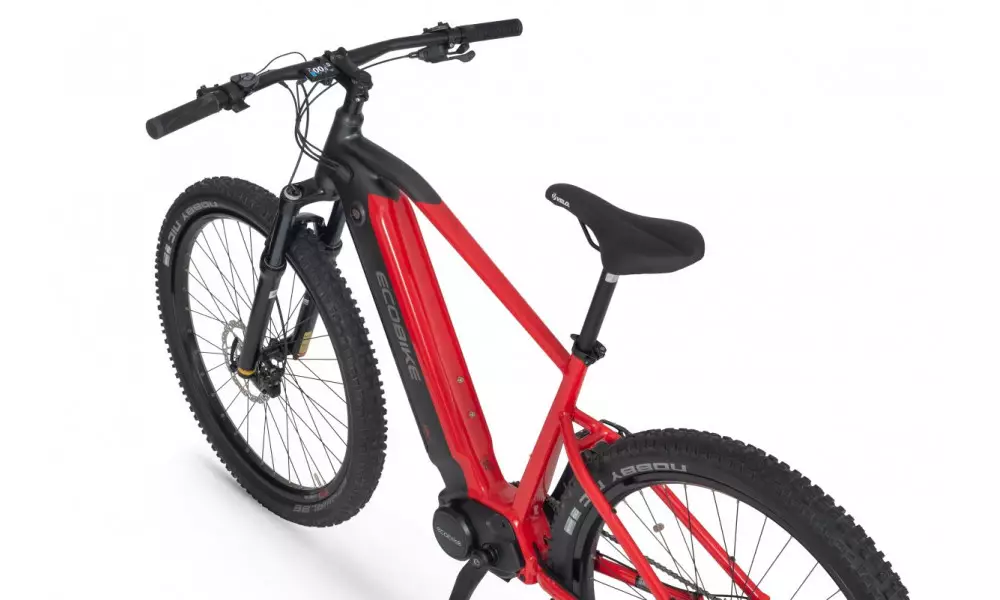

FRAME: Hydroformed aluminium
FRAME SIZE: 19" / 21"

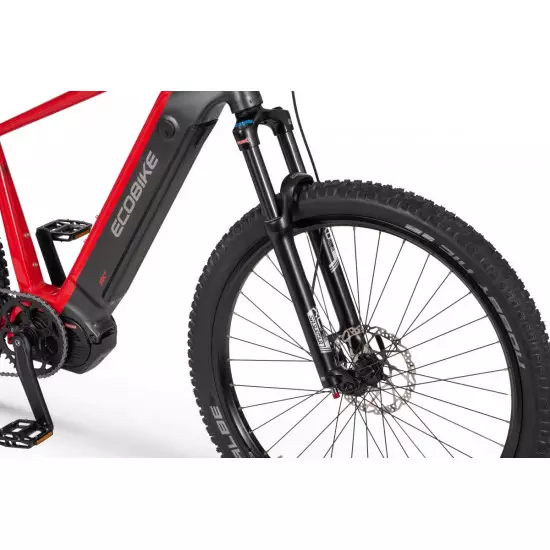

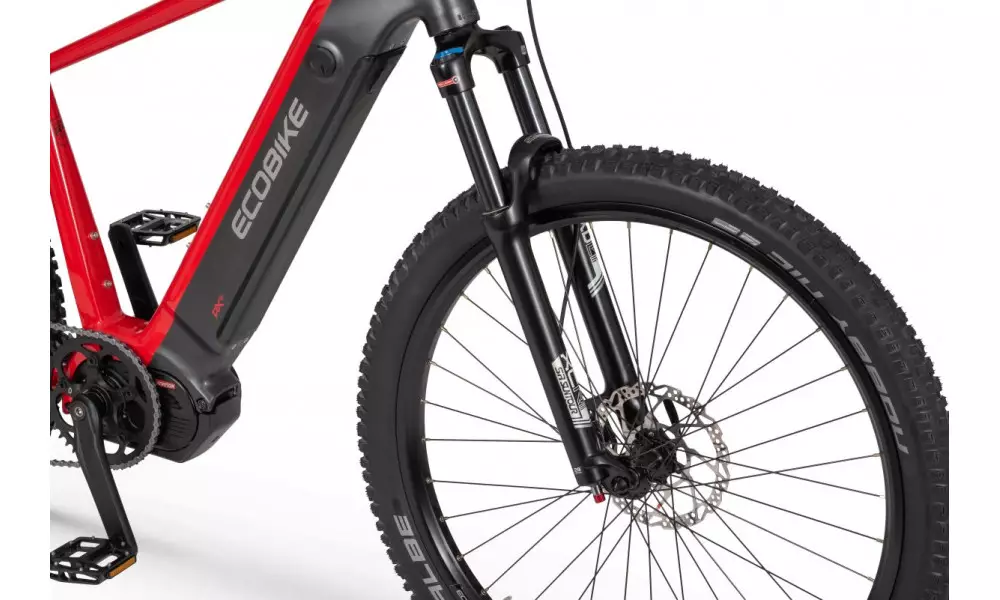

FORK: SunTour XCR-AIR LOR travel 120 mm
BRAKES: Shimano BL-MT400 hydraulic disc
CHAIN: KMC e10
CHAINWHEEL: 1-speed, 44T

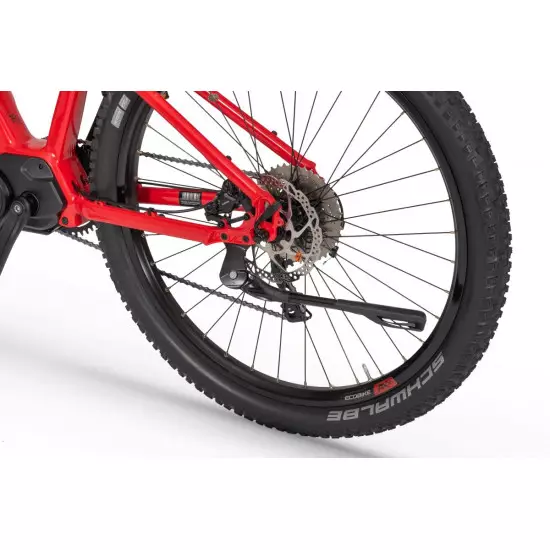

REAR DERAILLEUR: Shimano DEORE 10-speed

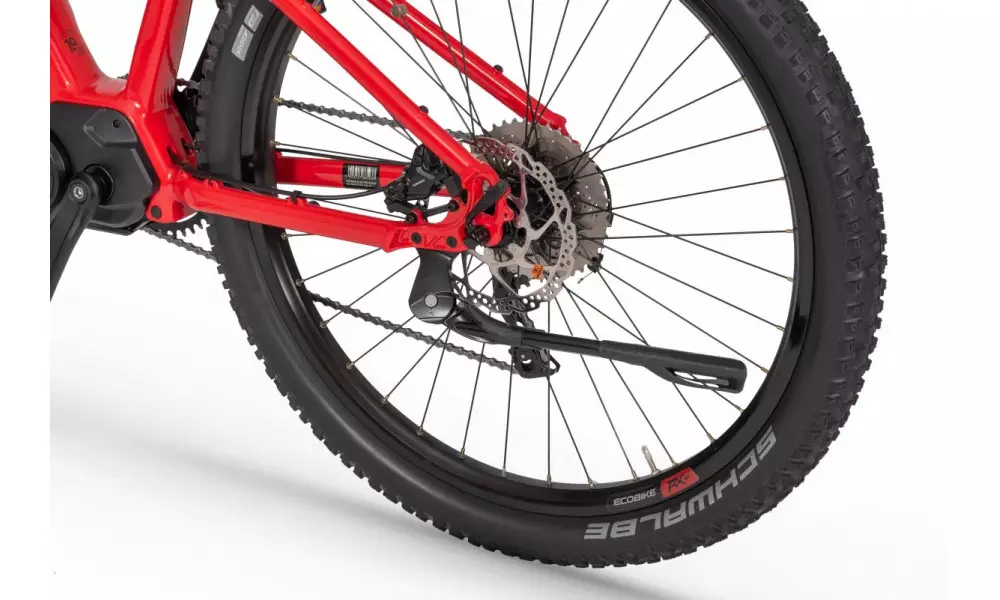

FREEWHEEL: Shimano DEORE CS-M4100-10 10-speed 11-42T

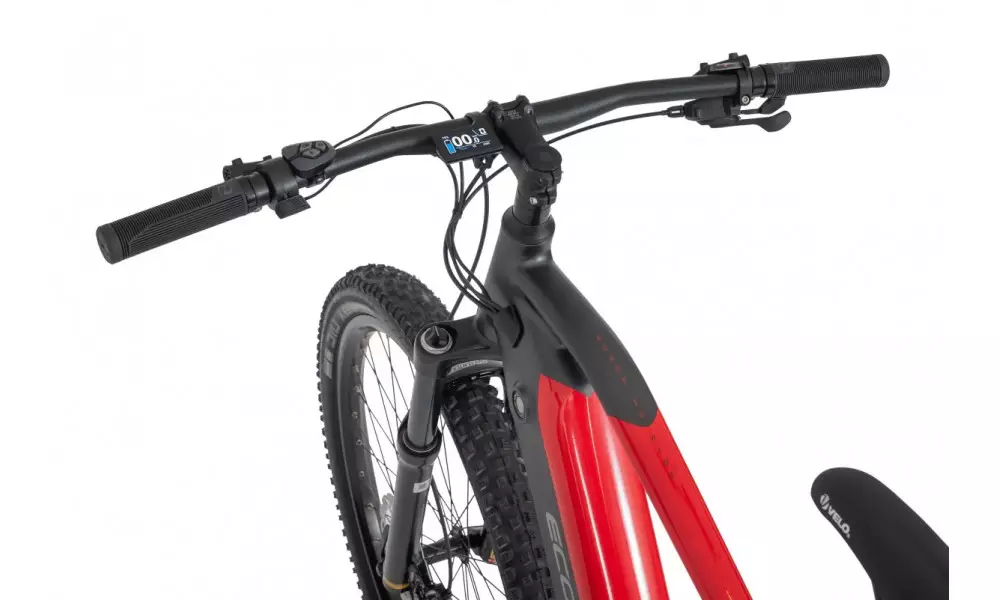

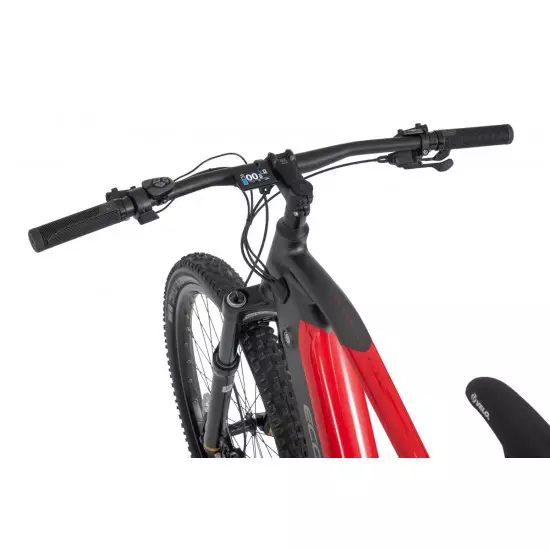

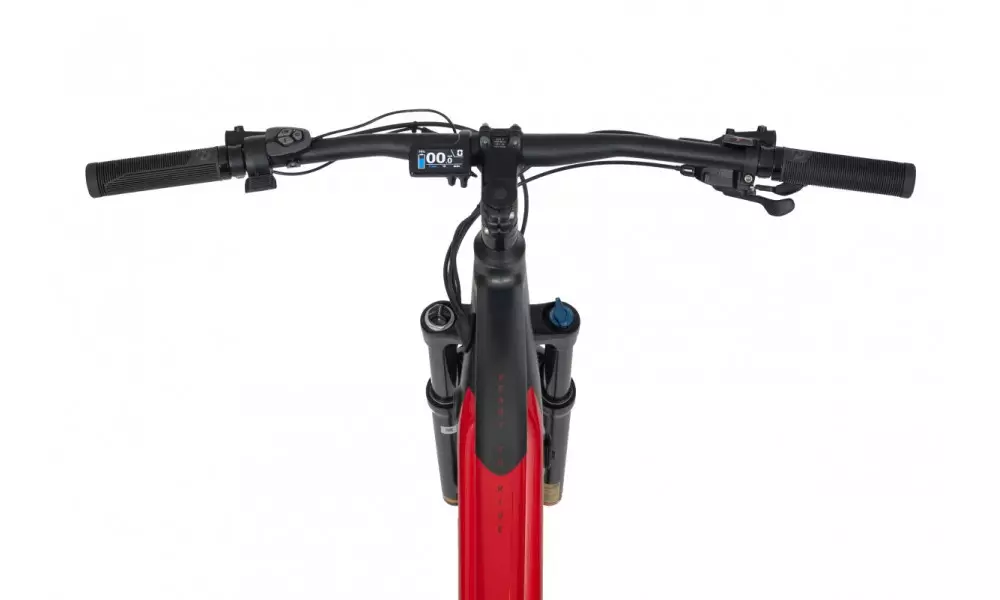

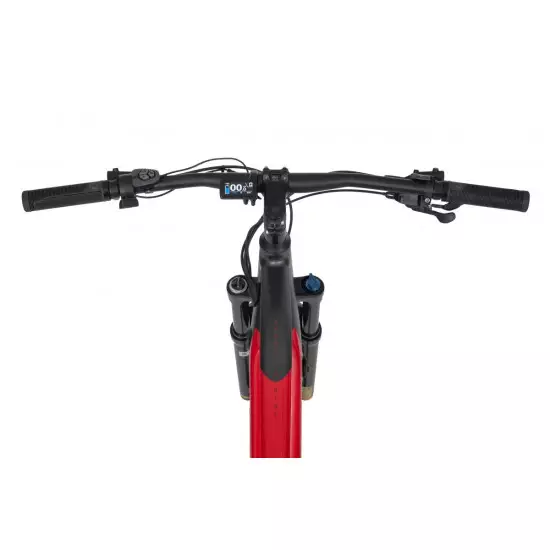

HANDLEBAR: Zoom MTB-AL-312BT, aluminium, riser 12mm, diameter in stem fixing spot (center): 31.8mm, length: 720mm
STEM: Promax MA-47, aluminium, fork steerer: 28,6mm, handlebar diameter: 31,8mm, length: 90mm)
HUBS: Front hub: Shimano HB-TX505,36H CENTER LOCK / Rear Hub: Shimano FH-TX505-8 CENTER LOCK
RIMS: 29", reinforced
SADDLE: VELO VL-3363
SEAT POST: ZOOM SP-C255, diameter: 27.2mm, length: 350mm
SHIFTERS: Shimano DEORE 10-speed
SPOKES: stainless steel
TYRES: Schwalbe Nobby Nic 29 x 2.60 (65-622)
WEIGHT: 26.5 kg
GRIPS: Herrmans RIB single lock
Maximum load: 125 kg
Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
Lifespan - stated number can be lower if stored and used improperly
Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
- Toote nimi
- Elektrijalgratas Ecobike RX 500 29" 48V 2023
- Toote kood
- Raami materjal
- Eesmine amortisaator
- Tagumine amortisaator
Jalgratas tarnitakse tootja originaalpakendis (tavaliselt eemaldatud esiratta, juhtraua, sadulaga), mis tagab kaupade ohutuse ladustamisel ja transportimisel. Ostes sellises pakendis jalgratta, peab Ostja ise või tema valitud rattameister selle sobivalt kasutamiseks ette valmistama – kokku panema, ühendama ja reguleerima.
Enne väljasaatmist valmistatakse jalgratas ette sõitmiseks – pannakse kokku, reguleeritakse ja pingutatakse. See tarnitakse pakendatuna spetsiaalsesse pappkarpi. Peale jalgratta kättesaamist tuleb vaid ühendada ja kinnitada pedaalid, seadistada juhtraud ning sadul õigesse asendisse ja saabki sõitu alustada. Laste jalgratastele võib olla vaja kinnitada ka abirattad ja -varras, kui need on komplektis. Täiendavalt ostetud tarvikute ning aksessuaaride paigaldamine ei sisaldu teenuse hinnas.
