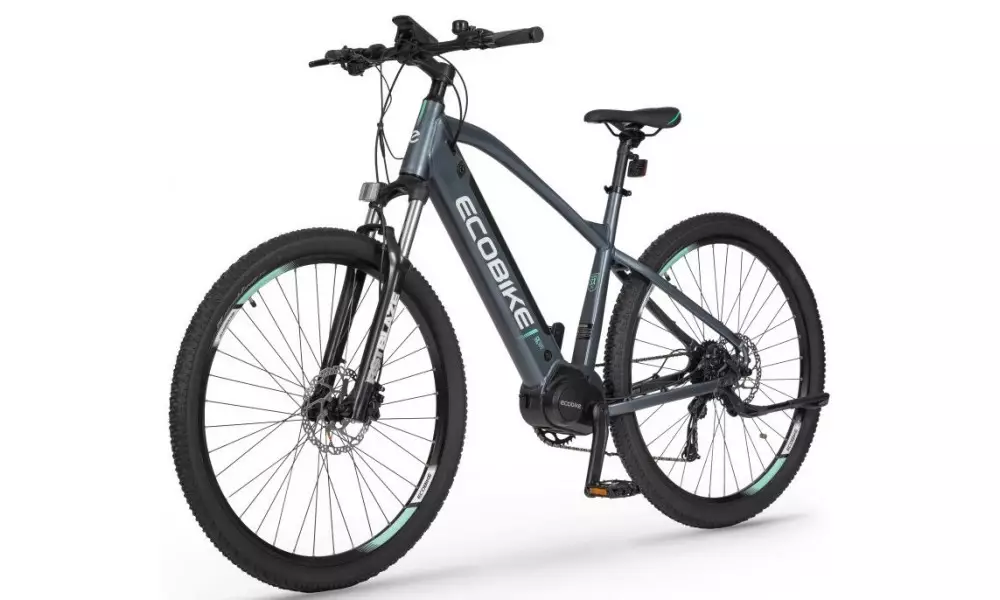

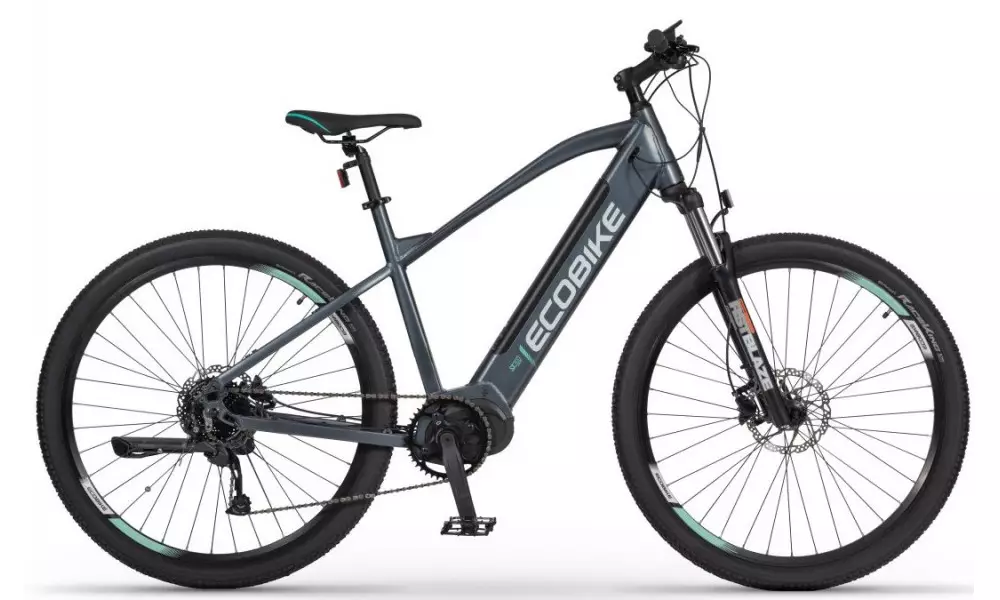

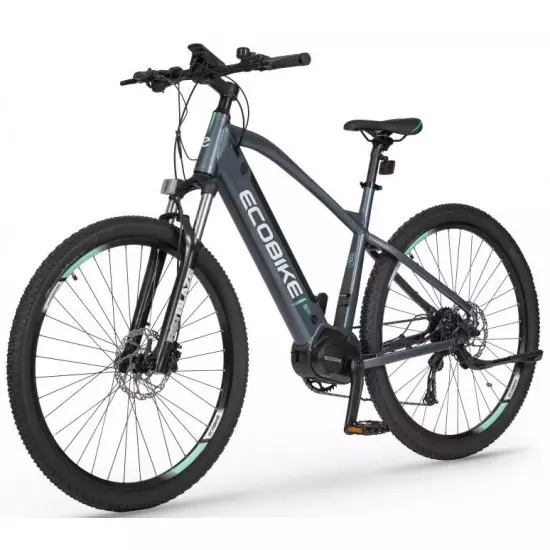

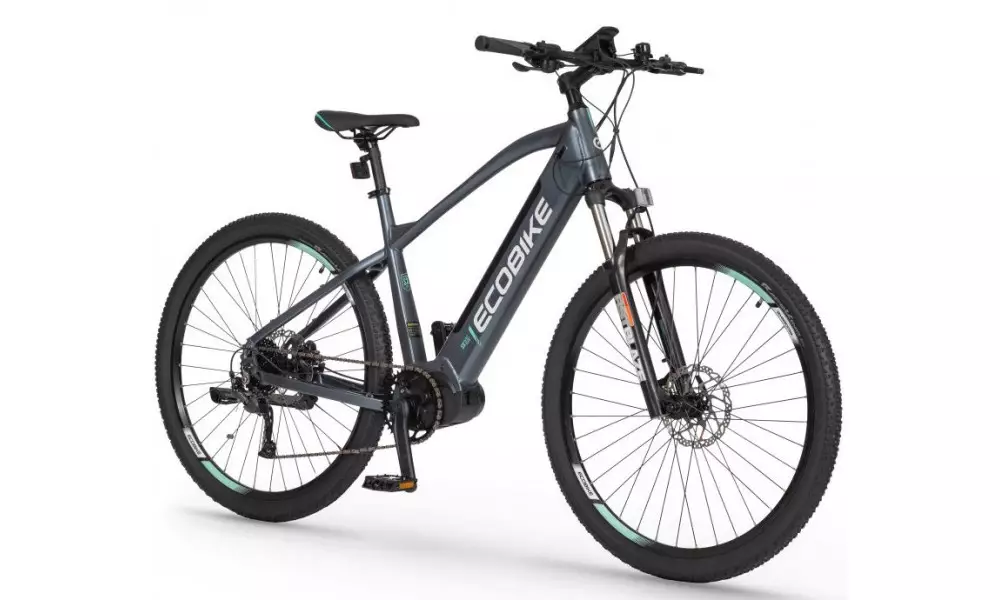

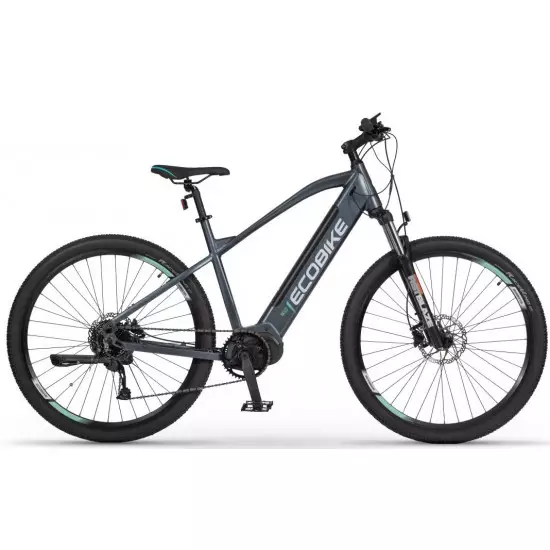

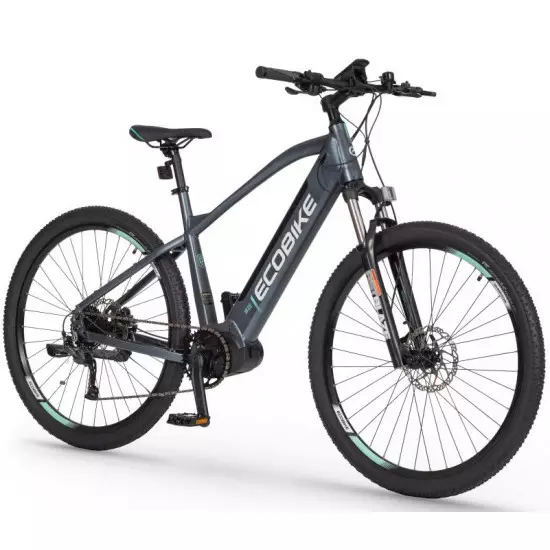

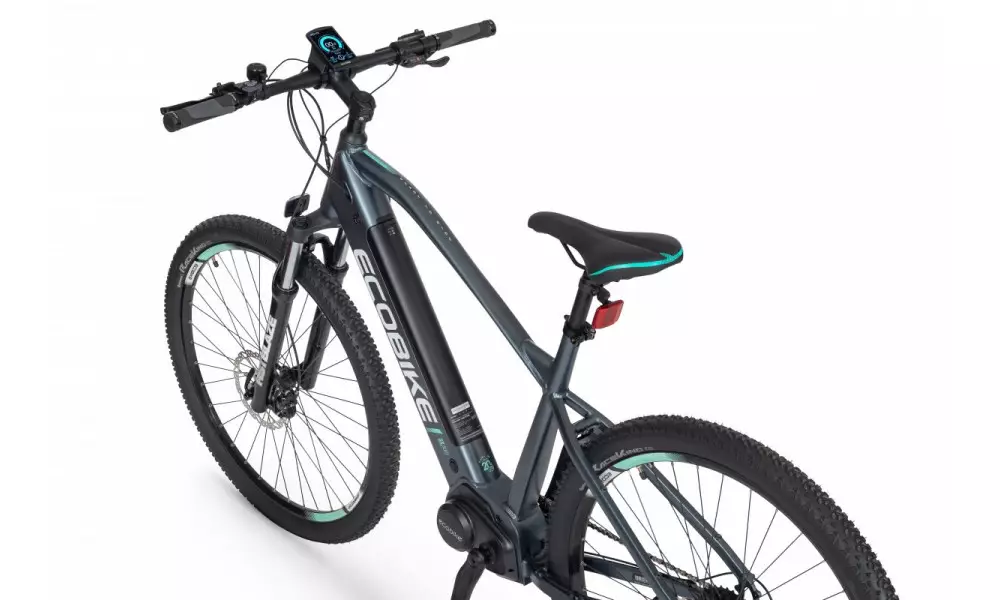

Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. Meet the Ecobike SX300. An e-bike MTB that combines the continuation of fantastic performance with the design of the future. The Ecobike SX300 is characterized by a unique design. The new frame design makes the e-bike immediately eye-catching, but it also works perfectly in practice. The battery is an integral part of the frame, completely lost in it, and the geometry ensures great comfort, good weight distribution and safety. Electric system is based on the technology with a central motor by Ananda, proven and appreciated for years by users of our bikes, which generates as much as 100 Nm of torque. It helps to overcome even difficult slopes without any problems and riding it is a pleasure. The system is powered by LG battery. You can configure your bike with batteries of capacities of 10.4, 11.6Ah Ah or 14 Ah 48V. The Smart BMS technology we use ensures the effective operation of the battery and contributes to its longer life. The system is supported by a control panel with a colour display. It has been equipped with a dusk sensor that automatically adjusts the screen backlight to the conditions in which you are moving. Its friendly interface ensures intuitive navigation between individual functions and settings. The motor and battery have been placed carefully to maintain the best possible weight distribution. At Ecobike, we use good components from proven suppliers. We've achieved superb traction by using Continental Race King 29x2.20 tires and an excellent shock absorbing RST Blaze TNL front fork. An e-bike with a powerful motor requires a solid derailleur - in this case we chose a Shimano with 9 gears. In difficult conditions, the brakes are the basis of safety. The SX300 uses Shimano hydraulic disc brakes. Ecobike SX300 will allow you to discover not only beautiful places, but above all new possibilities!
Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.
48V/10.4 AH: 50-80 km (MAX POWER - MAX ECO)
48V11.6Ah: 55-85 km (MAX POWER - MAX ECO)
48V/14AH(LG): 60-135 km (MAX POWER - MAX ECO)
Voltage: 48 V

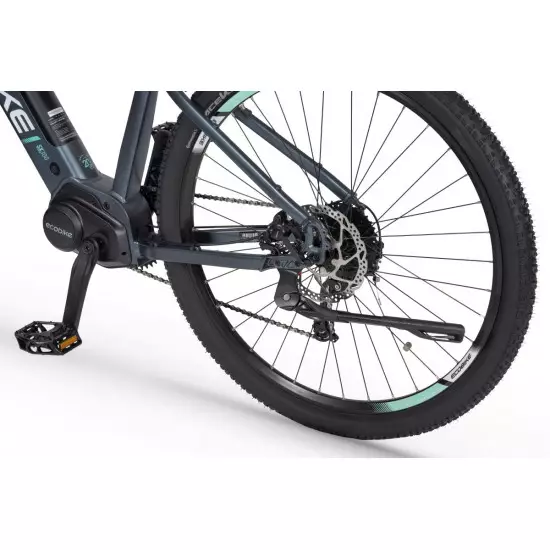

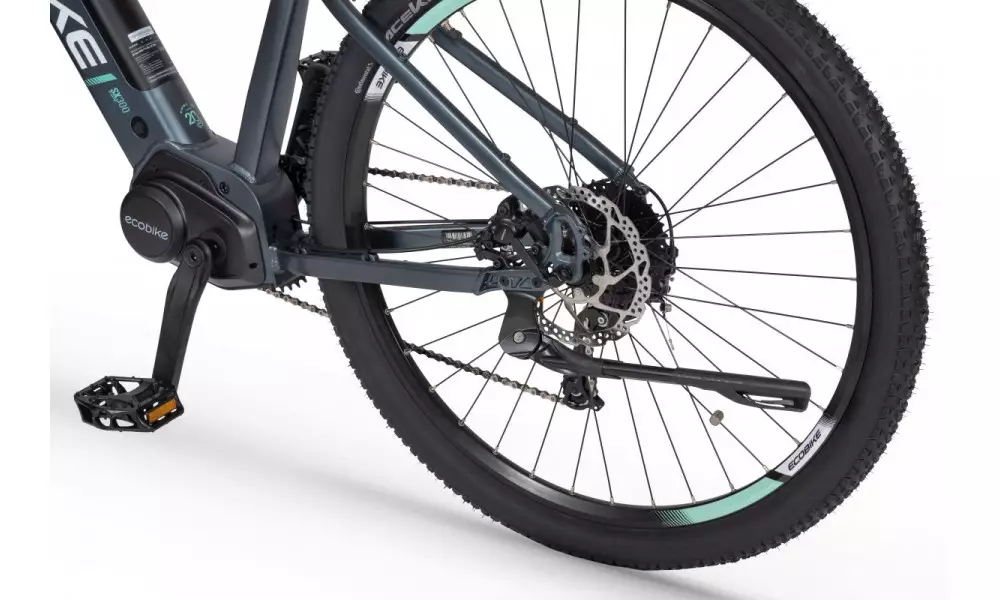

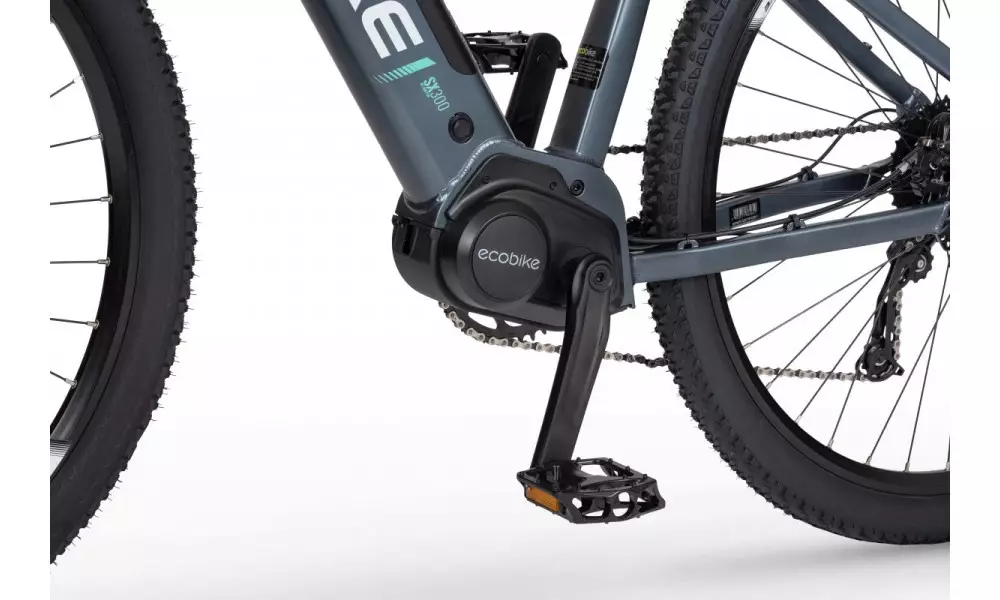

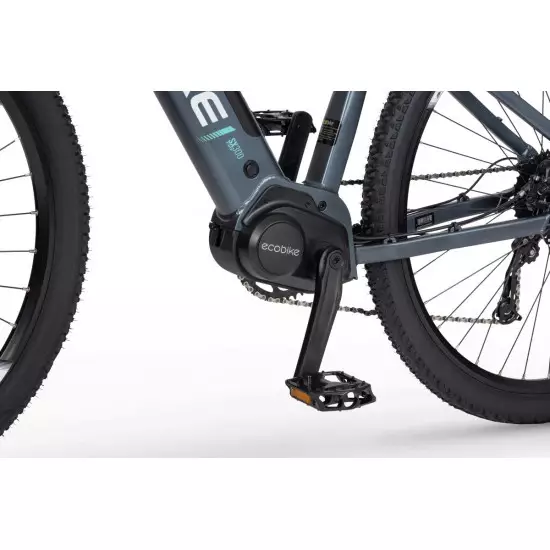

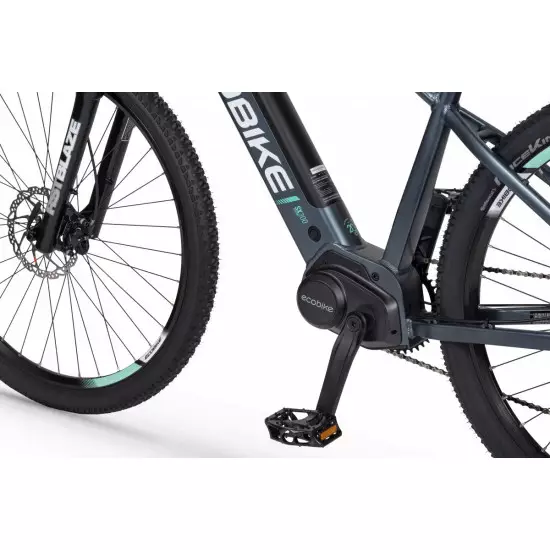

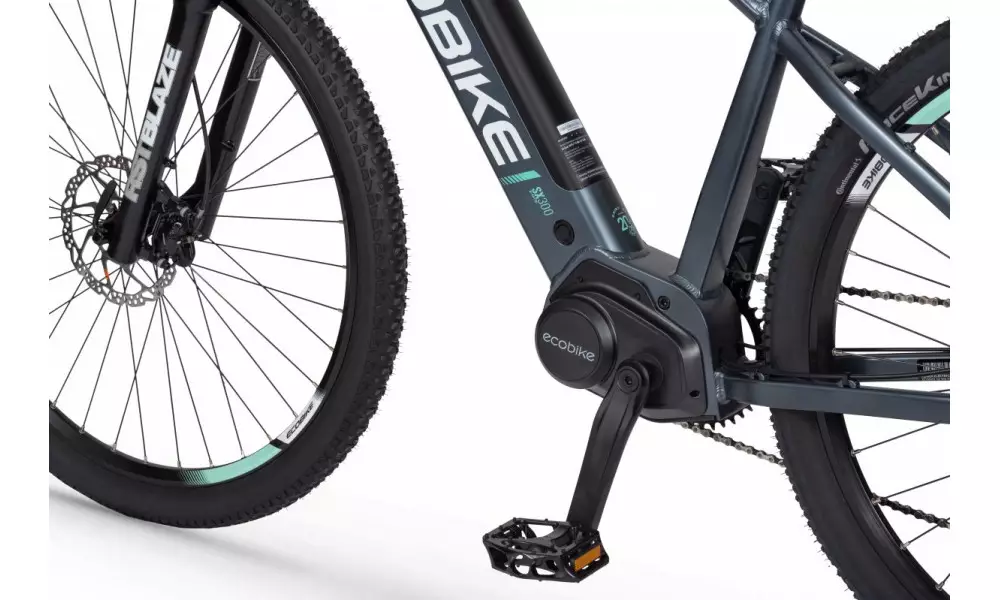

Mount: Central (mid-drive)
Motor assisted speed: 40 km/h (Limited to 25 km/h in accordance with EU standard EN 15194)
Torque: 100 Nm
Motor's brand: Ananda
Power: 250 W
Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 600 W
Fuses: 30 A
Lifespan: 700 charges
Charging time: 4-8 hours
Voltage: 48 V
Charger: 100-240V / 54.6V / 2A / D type
Cells brand: LG
Smart BMS (Battery Managment System)
Battery can be removed for charging
CHARGING TIME: 4-8 hours
FRAME: Hydroformed aluminium
FRAME SIZE: 20"

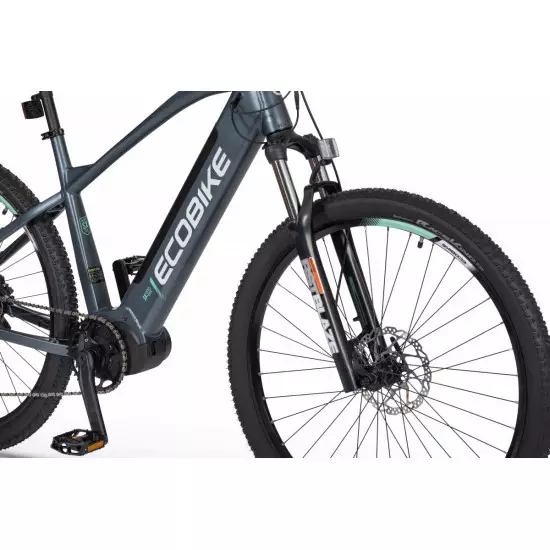

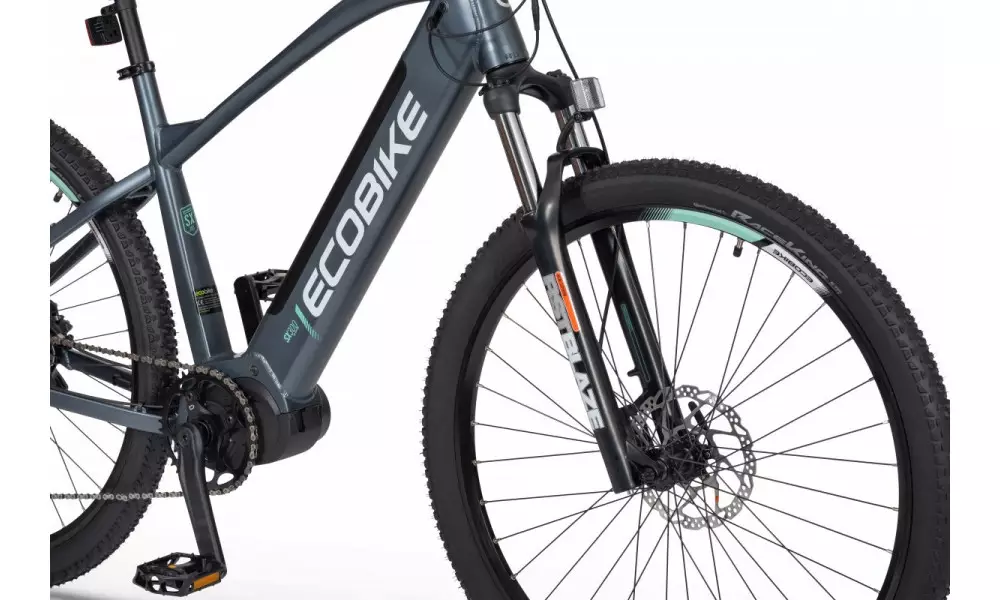

FORK: RST BLAZE TNL, travel: 100mm, suspension
BRAKES: Shimano MT200 hydraulic disc
CHAIN: KMC X9
CHAINWHEEL: 1-speed, 42T
REAR DERAILLEUR: Shimano Alivio 9-speed
FREEWHEEL: Shimano HG-200 11-36T 9-speed

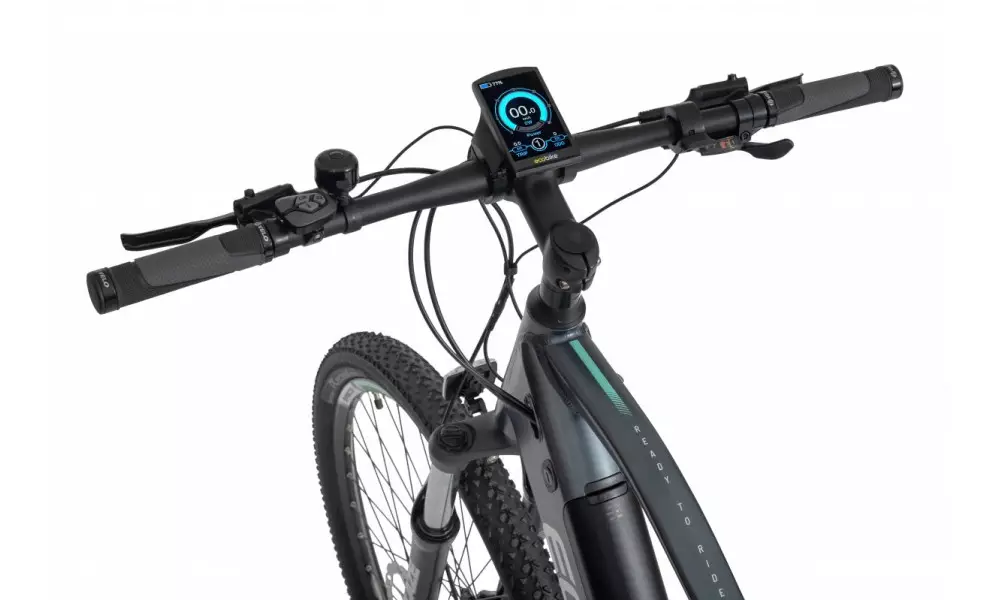

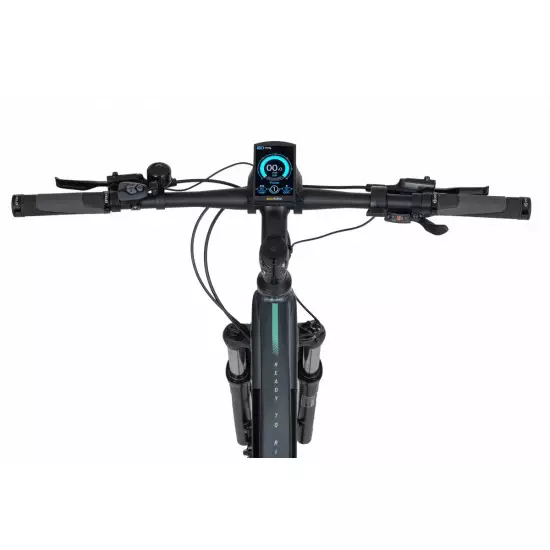

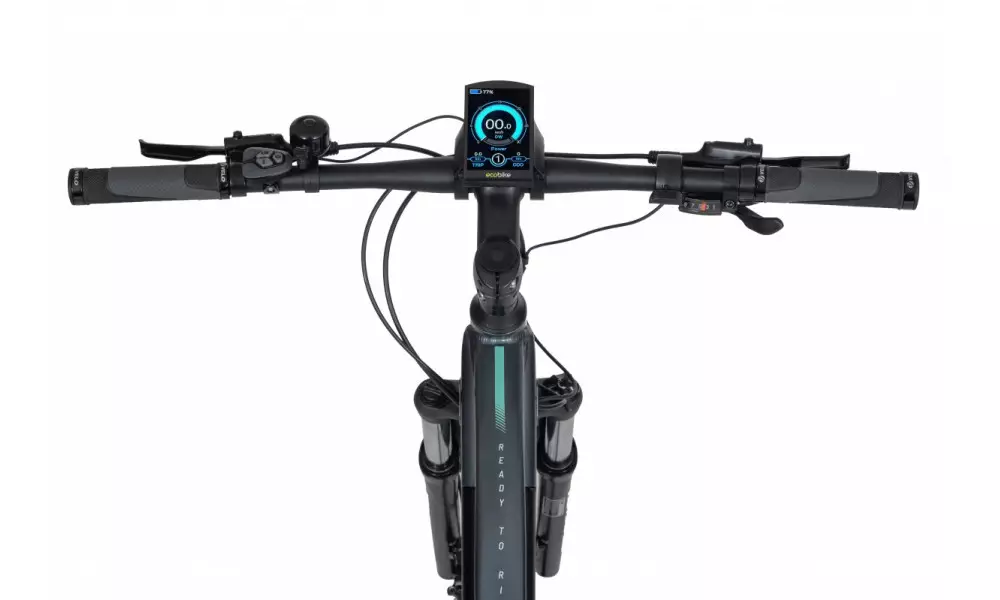

HANDLEBAR: Zoom MTB-AL-312BT, aluminium, riser 12mm, diameter in stem fixing spot (center): 31.8mm, length: 720mm
STEM: Promax MA-47, aluminium
HUBS: Front hub: Shimano HB-TX505 / Rear Hub: Shimano HB-TX505
RIMS: 29", reinforced
SADDLE: VELO VL-3363
SHIFTERS: Shimano Altus 9-speed
SPOKES: stainless steel, SAPIM
TYRES: Continental Race King 29 x 2.10 (54-622)
WEIGHT: 24,5 kg
GRIPS: VELO VLG-776
KICKSTAND: Rear, adjustable length, aluminium
Maximum load: 125 kg
Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
Lifespan - stated number can be lower if stored and used improperly
Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
- Toote nimi
- Elektrijalgratas Ecobike SX 300 29" 48V 2023 cool grey
- Toote kood
- Raami materjal
- Eesmine amortisaator
- Tagumine amortisaator
Jalgratas tarnitakse tootja originaalpakendis (tavaliselt eemaldatud esiratta, juhtraua, sadulaga), mis tagab kaupade ohutuse ladustamisel ja transportimisel. Ostes sellises pakendis jalgratta, peab Ostja ise või tema valitud rattameister selle sobivalt kasutamiseks ette valmistama – kokku panema, ühendama ja reguleerima.
Enne väljasaatmist valmistatakse jalgratas ette sõitmiseks – pannakse kokku, reguleeritakse ja pingutatakse. See tarnitakse pakendatuna spetsiaalsesse pappkarpi. Peale jalgratta kättesaamist tuleb vaid ühendada ja kinnitada pedaalid, seadistada juhtraud ning sadul õigesse asendisse ja saabki sõitu alustada. Laste jalgratastele võib olla vaja kinnitada ka abirattad ja -varras, kui need on komplektis. Täiendavalt ostetud tarvikute ning aksessuaaride paigaldamine ei sisaldu teenuse hinnas.
