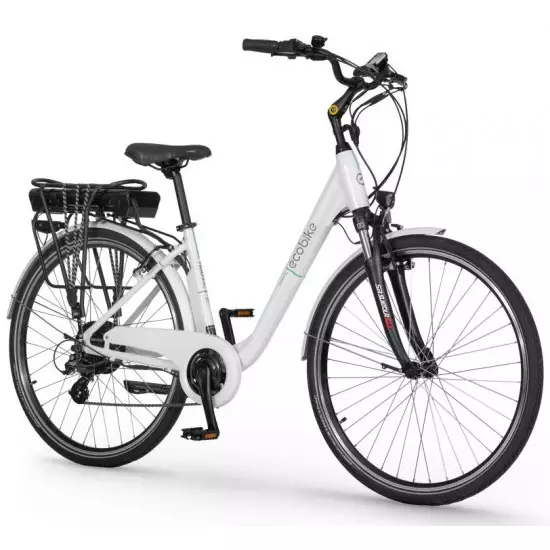

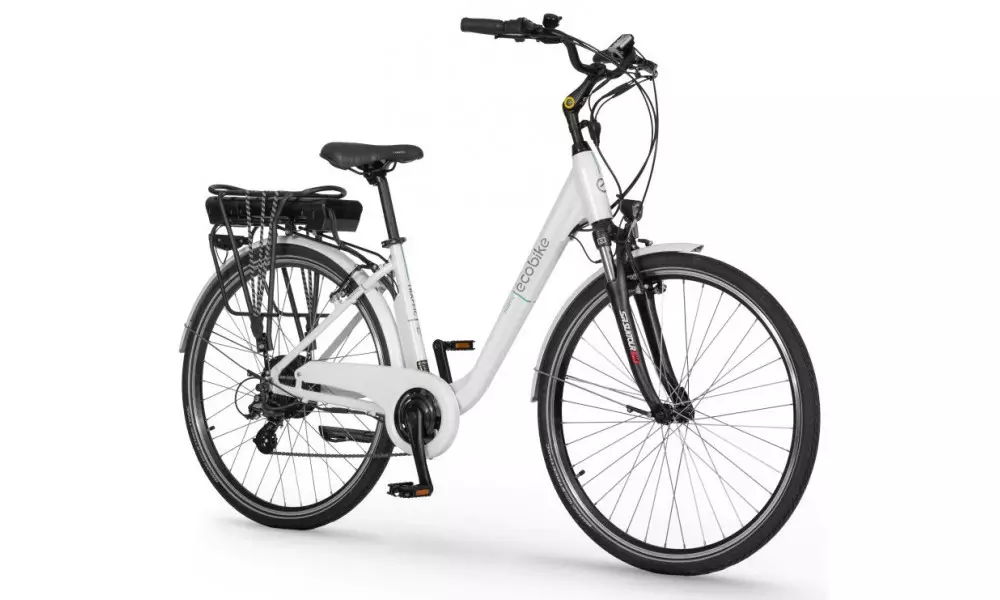

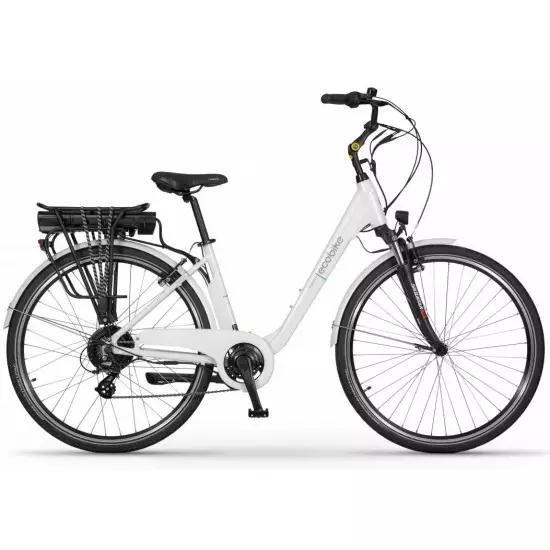

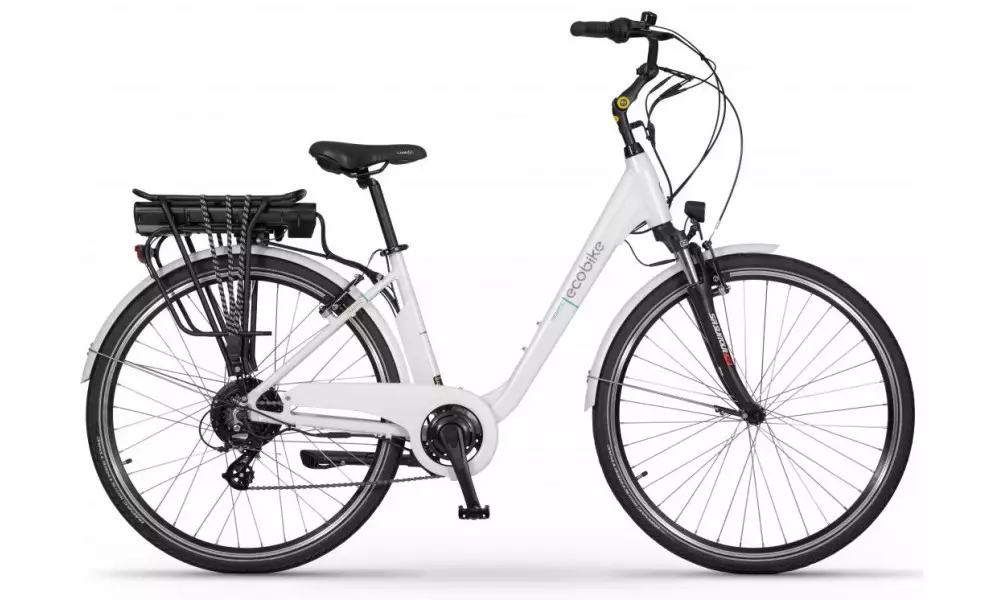

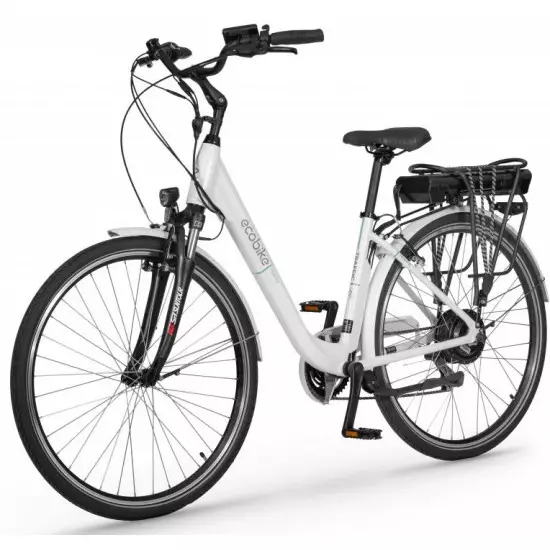

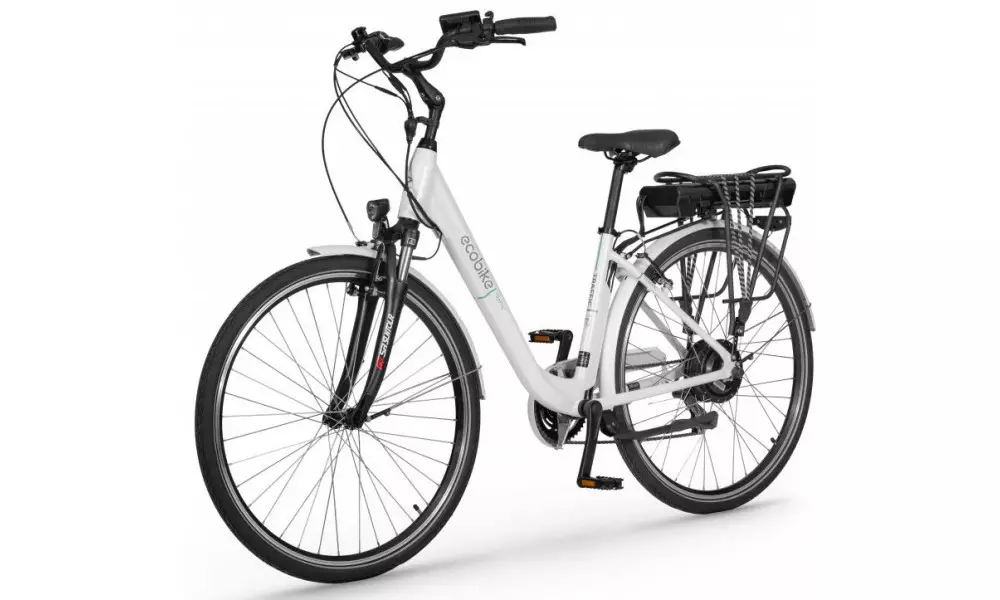

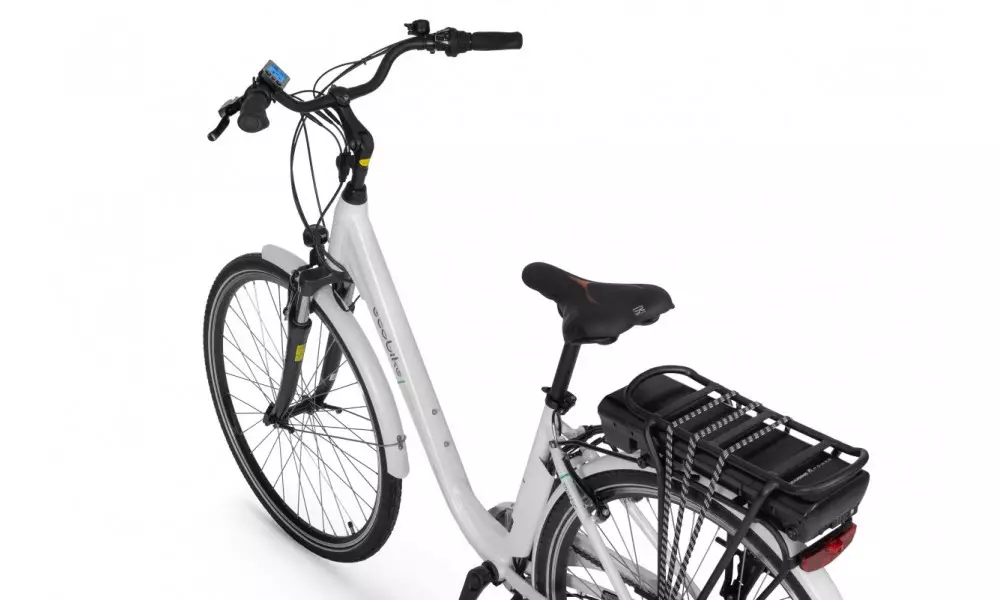

Elektrijalgratas Ecobike Traffic 28" 2023 white

Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. Traffic is a version equipped with an LCD screen for more demanding users, which provides a much wider range of electrical support configurations and a lot of useful information. There is a USB port for charging smartphone or other devices. A low frame improves the comfort of getting on and off the bike. Traffic is based on proven technology that users appreciate for many years. The bike is powered by the BAFANG 250W unit, which we have been using for years, located in the rear hub, supported by a rack-based battery. You can choose 11.6 / 13 / 14.5 / 17.5 AH variant. An interesting fact is the new Smart BMS technology used in batteries, which provides batteries with even better performance and allows you to enjoy trouble-free working for a longer time. In addition, the bike will meet expectations regarding comfort and safety. Traffic is equipped with complete lighting powered by the main battery, Shimano Tourney gears, SunTour CR8V suspension fork, adjustable stem, fenders, and a comfortable Selle Royal saddle.

DISTANCE:

Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.

11.6Ah: 55-85 km (MAX POWER - MAX ECO)

13Ah: 60-100km (MAX POWER - MAX ECO)

14.5Ah: 75-125 km (MAX POWER - MAX ECO)

17.5AH(LG): 90-140 km (MAX POWER - MAX ECO)

ENGINE:

Voltage: 36 V

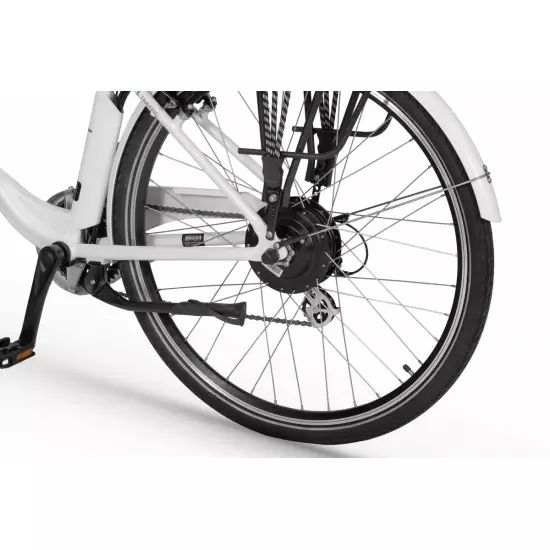

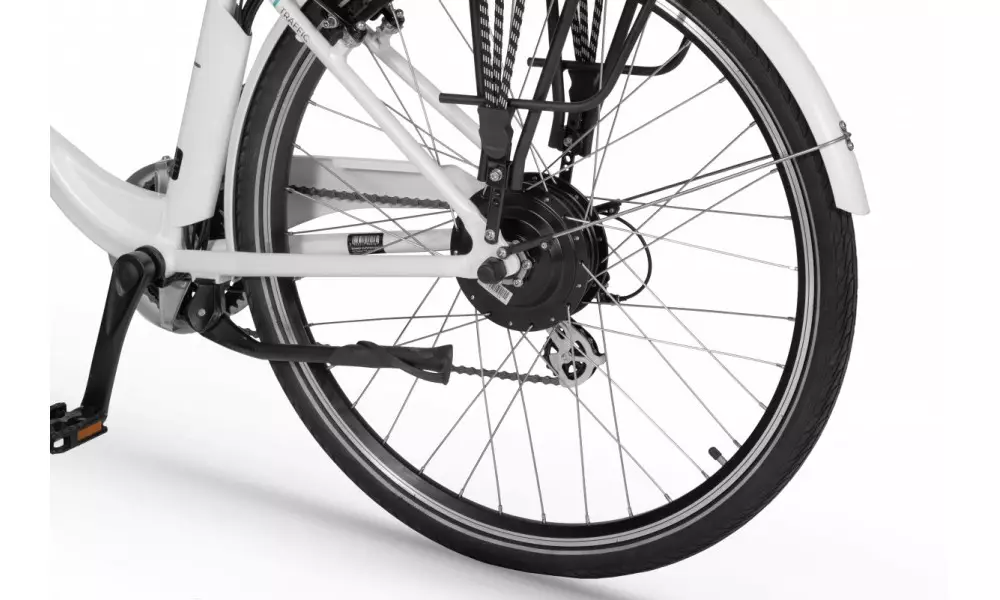

Mount: rear wheel hub

Motor assisted speed: max. 35 km/h (Limited to 25 km/h)

Torque: 45 Nm

Motor's brand: BAFANG

Power: 250 W

Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 540W

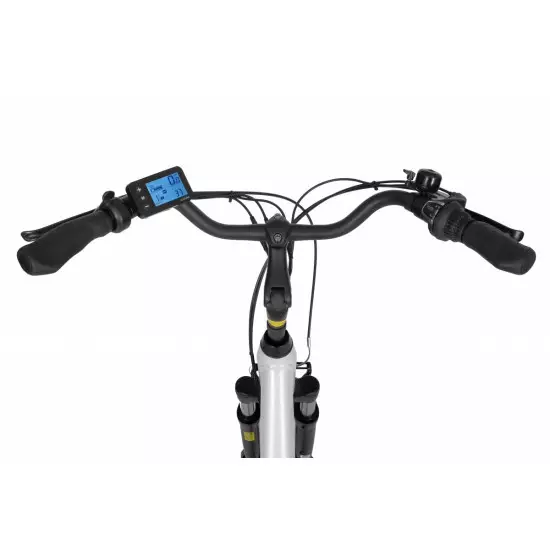

Computer: C300U

BATTERY:

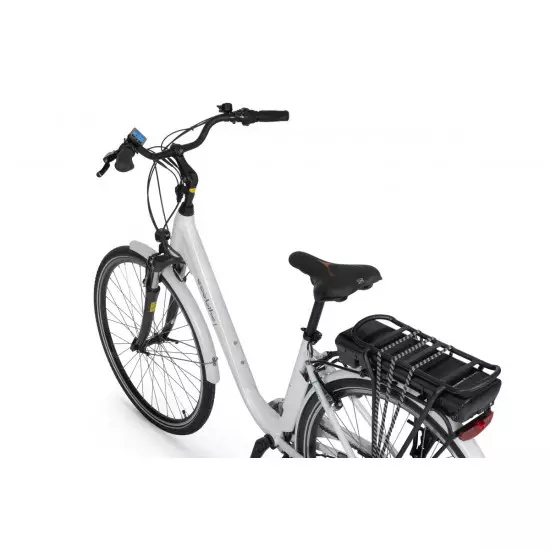

In carrier

Fuses: 30 A

Lifespan: 700 charges

Charging time: 4-8 hours

Type: Li-ion

Voltage: 36 V

Charger: 220-240W / 42V / 2A / D type

Cells brand: LG / Greenway

Smart BMS (Battery Managment System)

Battery can be removed for charging

CHARGING TIME: 4-8 hours

FRAME: Aluminium

FRAME SIZE: 17"

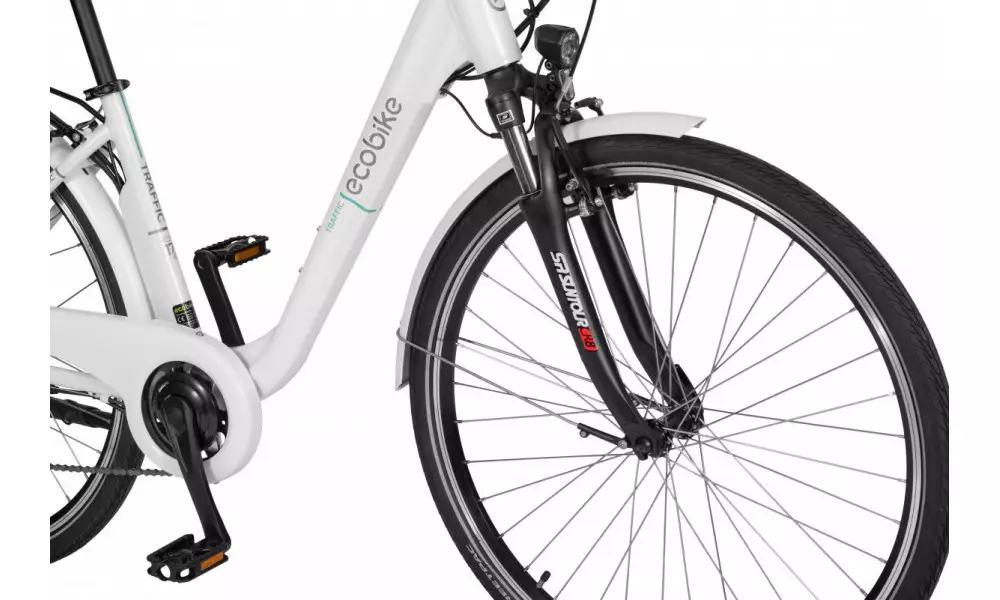

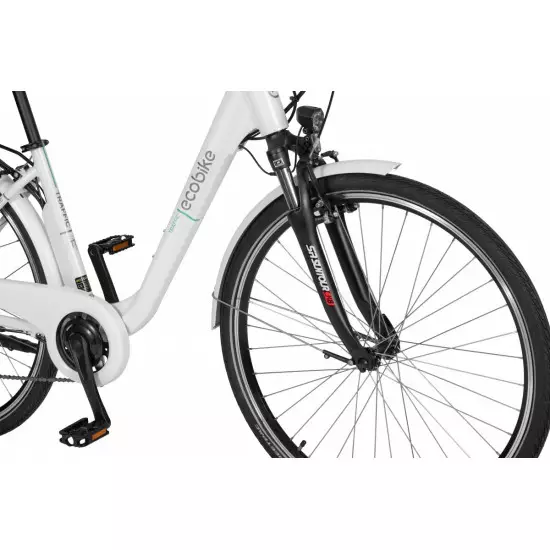

FORK: SR Suntour CR8V, travel: 63mm, suspension

BRAKES: V-brake Promax TX117

CHAIN: KMC Z7

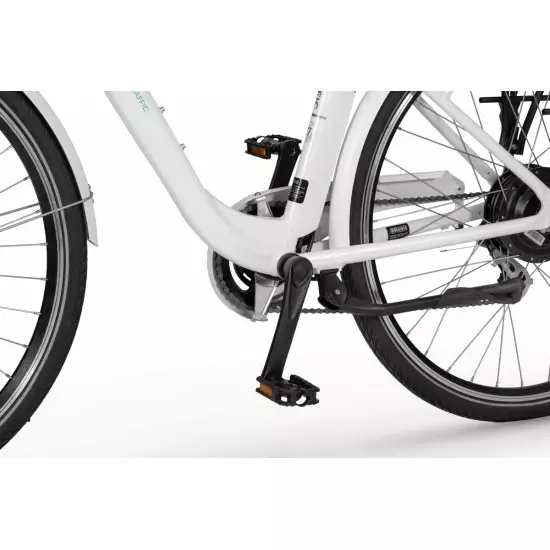

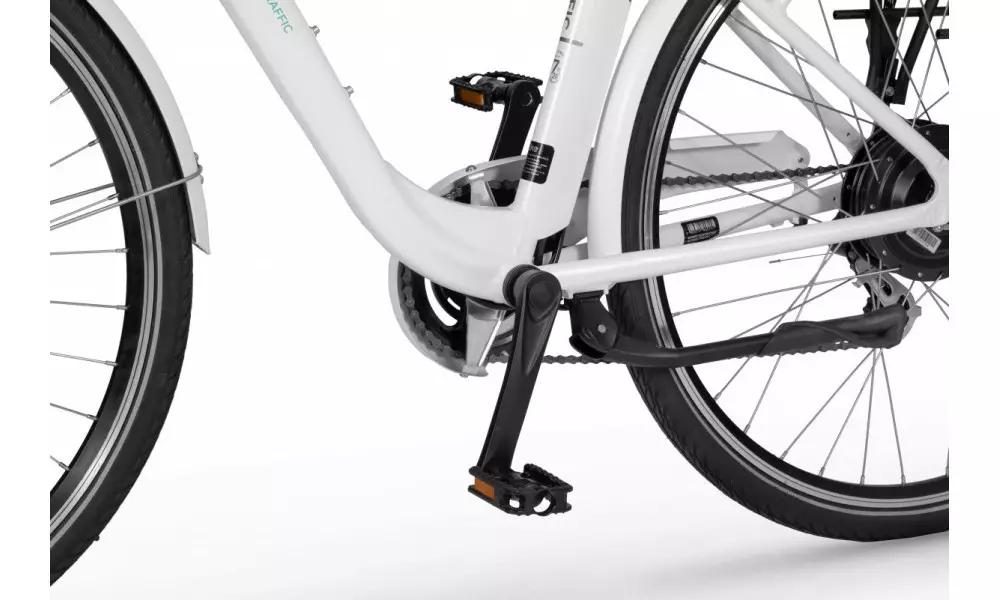

CHAINWHEEL: Prowheel PRO A42 1-speed, teeth: 42T, crank arm length: 170 mm

REAR DERAILLEUR: Shimano Altus 7-speed

FREEWHEEL: Shimano MF-TZ500 14-28T 7-speed

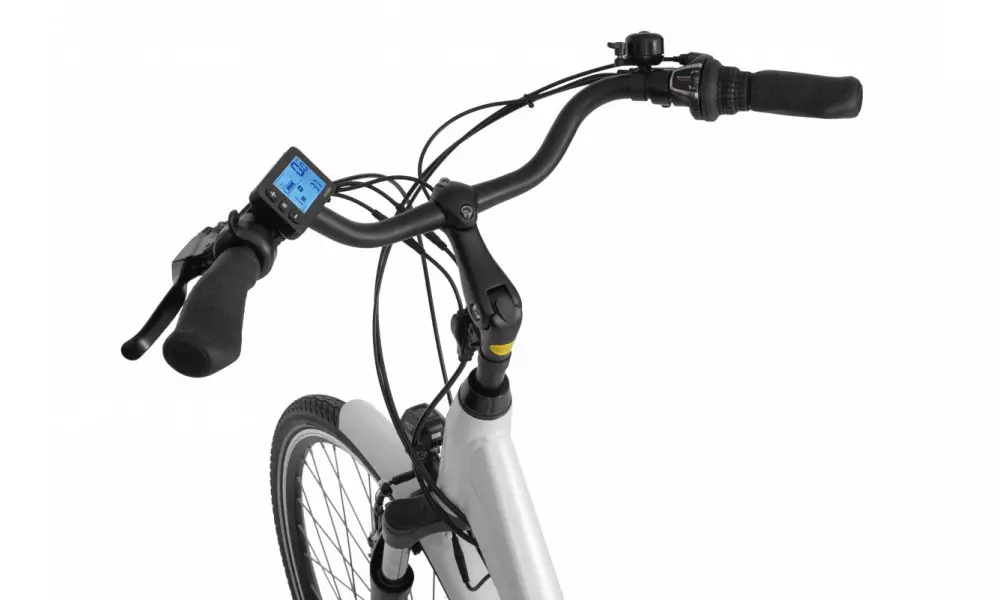

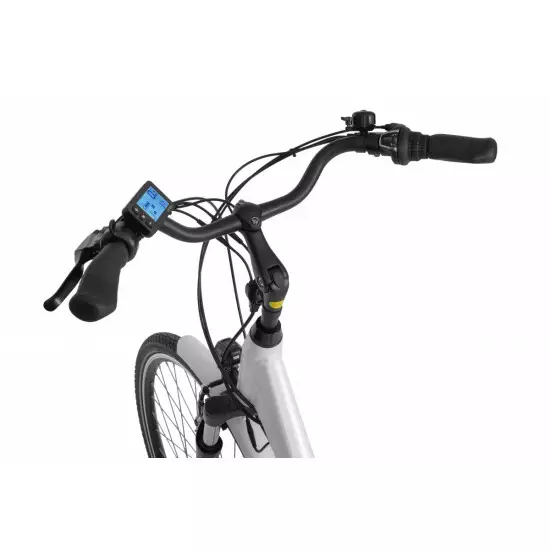

HANDLEBAR: Promax HB-T320, Aluminium, riser type with 45 degree backsweep for comfortable riding position, diameter in stem fixing spot (center): 25.4mm, length: 600mm

STEM: Promax MQ-525, aluminium, adjustable

HUBS: Front hub: Joytech 751DSE / Rear Hub: Engine

PEDALS: WELLGO

RIMS: 28", triple-chamber rims

SADDLE: Selle Royal Lookin Basic-A230

SEAT POST: Diameter: 27.2mm, length: 350mm

SHIFTERS: Shimano RevoShift 7-speed

SPOKES: SAPIM 13G / Front wheel: 288 mm / Rear wheel: 247 mm

TYRES: Rubena Flash Brown 28 x 1.75 (47-622)

WEIGHT: 22 kg

SPEEDS: 7

MUDGUARDS: For front and rear wheel, with u-stays

GRIPS: VELO VLG-519AD2

KICKSTAND: Center, adjustable length, aluminium

CARRIER: Aluminium, max.: 25kg, with carrier straps

LIGHTS: Rear Light: Spaninga RL1900XE / Front Light: Spaninga KENDO XE

GEOMETRY:

Length: 182 cm

Distance from saddle to stem: 57 cm

Height (max saddle-ground): 102 cm

Height (max handlebar-ground): 104 cm

Height (stem-ground): 101 cm

Height (seatpost clamp-ground): 84 cm

Height (frame overstep-ground): 38 cm

Maximum load: 125 kg

Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.

Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.

Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.

Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.

Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.

Lifespan - stated number can be lower if stored and used improperly

Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.

Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.

IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
