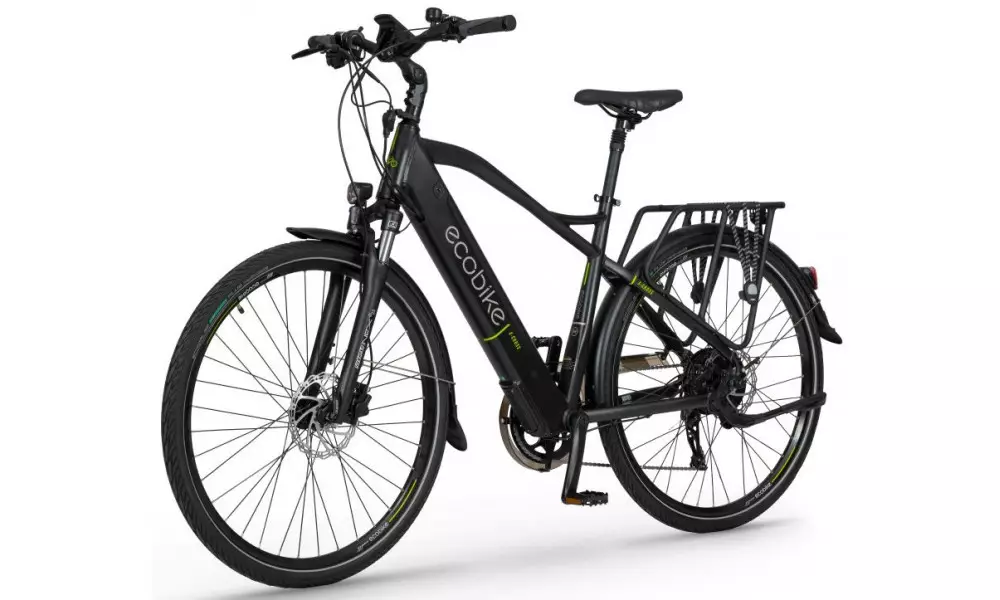

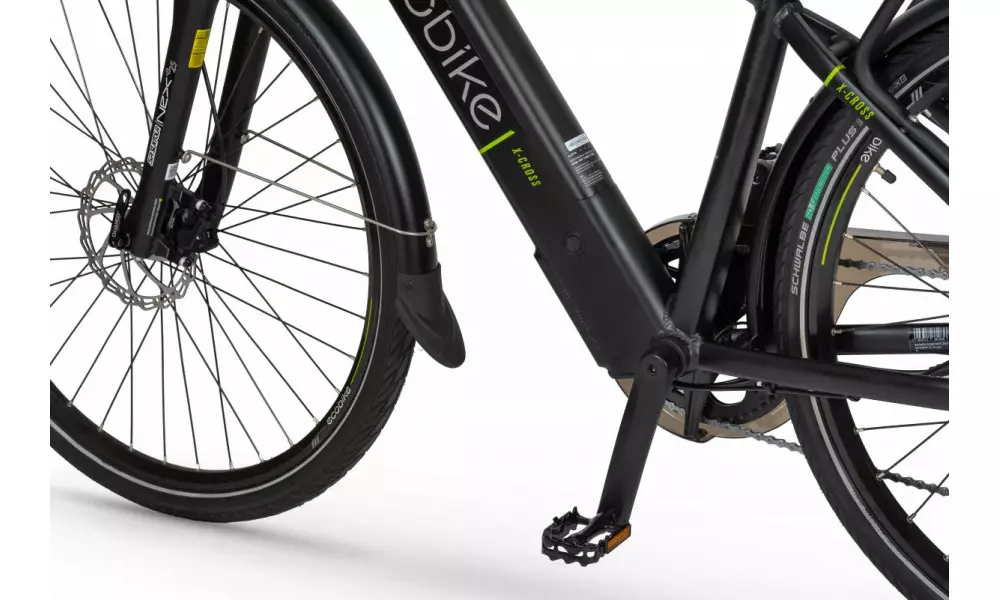

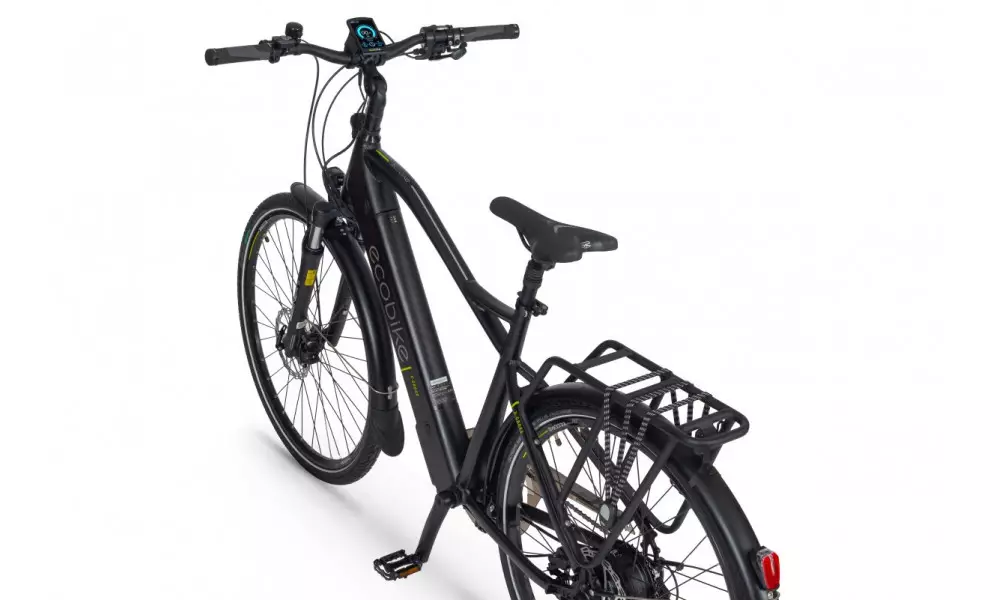

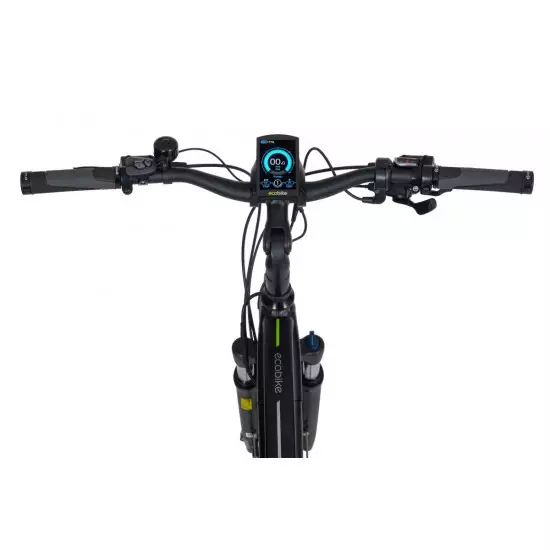

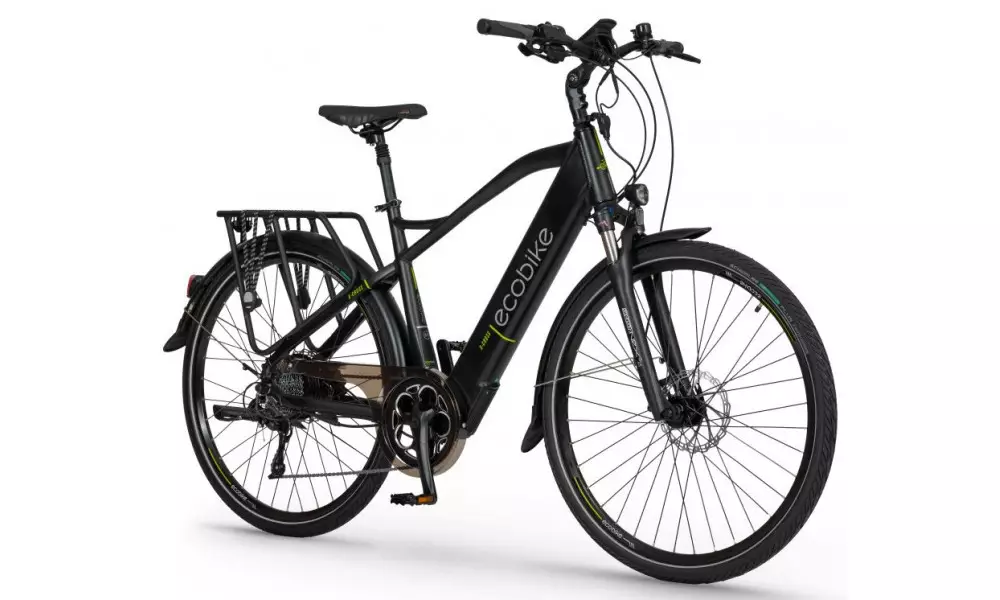

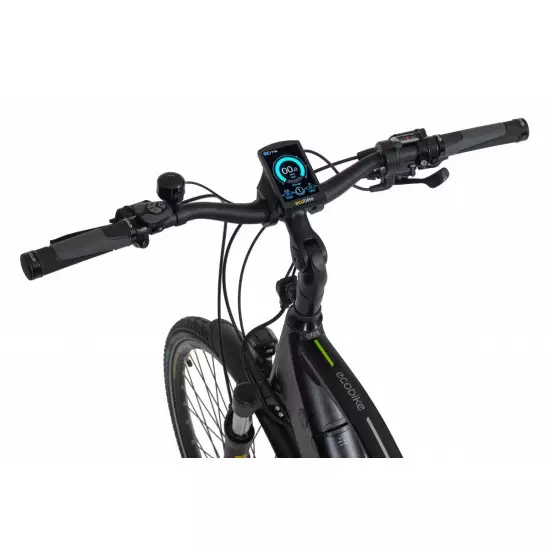

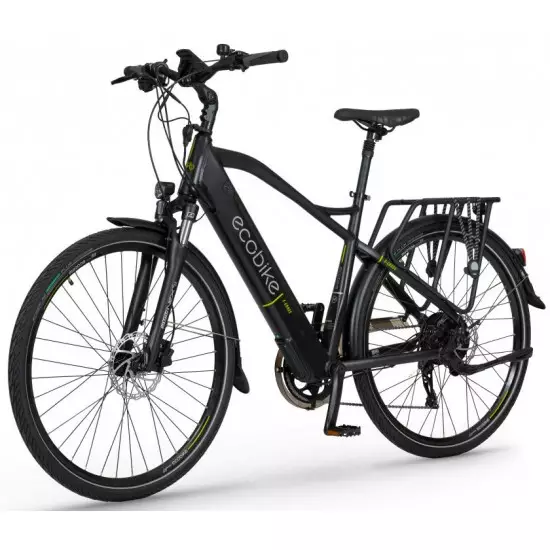

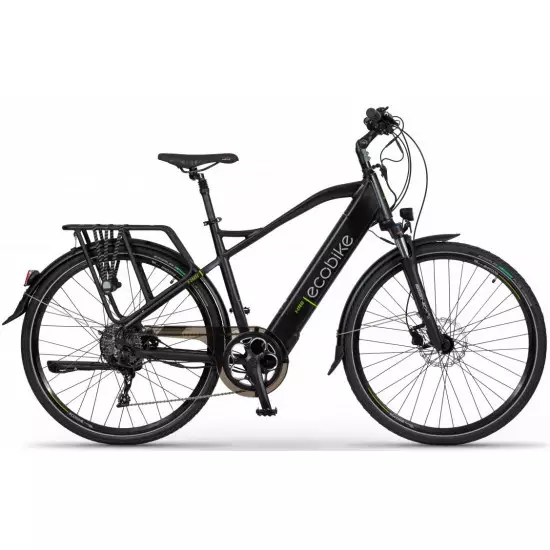

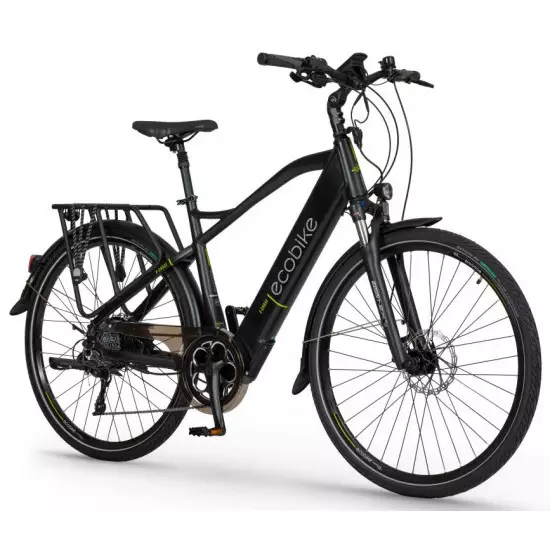

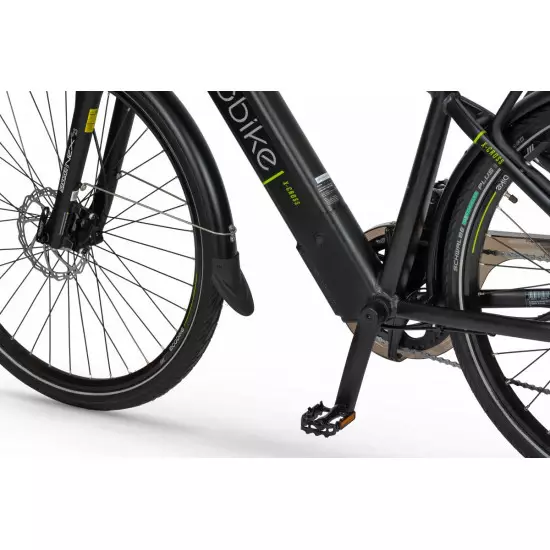

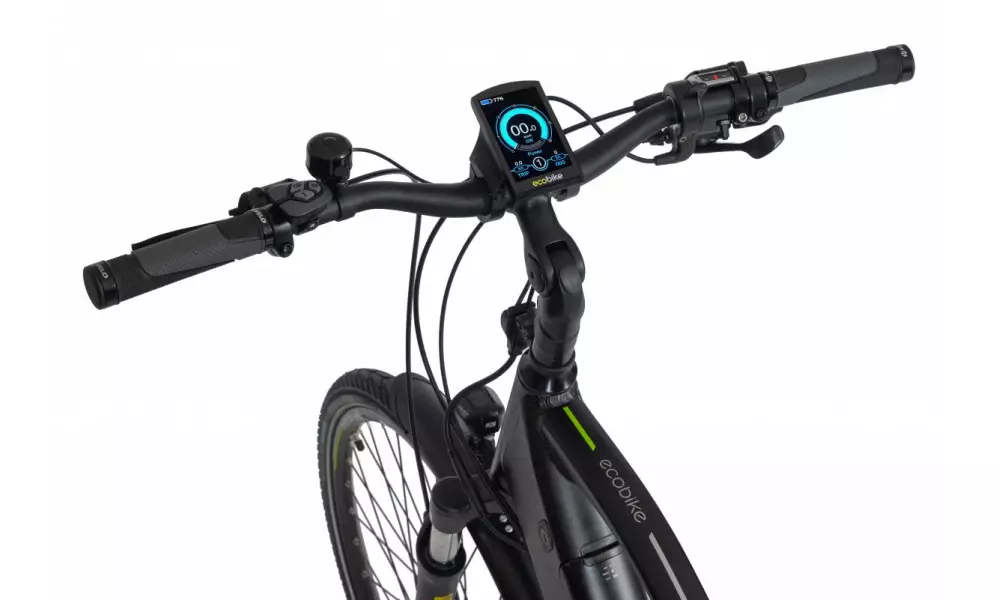

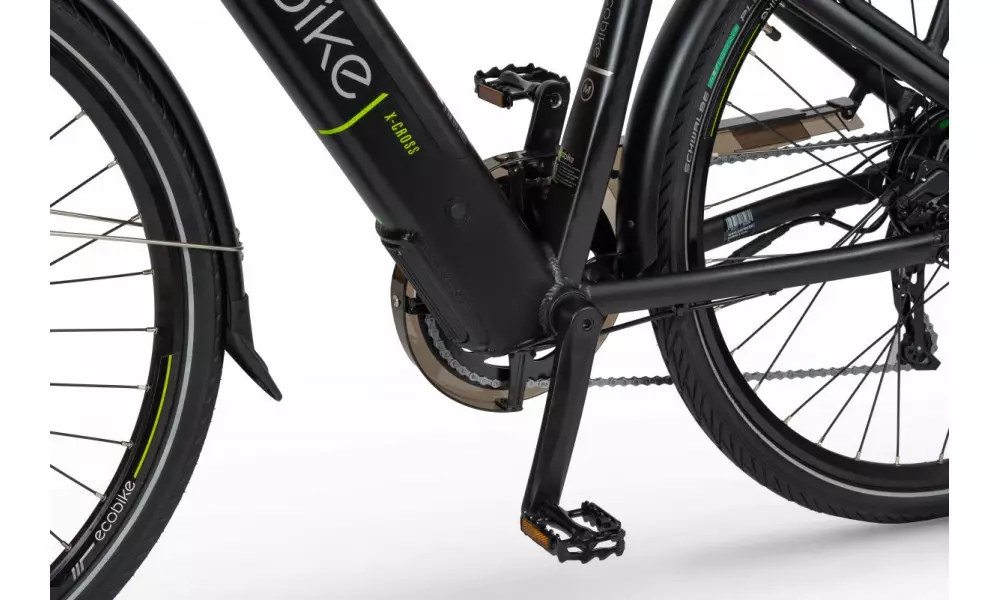

Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent. The new, solid frame construction we use, will provide you with a comfortable position, and the battery completely hidden into it gives the whole thing unique style. The new ergonomics ensure a better grip of the battery as well as easier insertion and removal. You can choose between 13 Ah, 16Aah or 17,5 Ah. The electrical system is a proven technology that has been used by us for years. It has been placed in the rear wheel hub Bafang motor. A powerful and reliable unit allows you to easily climb hills and even works well on very long journeys. A modern controller is responsible for the appropriate regulation of motor performance for your comfort and safety. You will especially like the control panel with a color display. It has been equipped with a dusk sensor that automatically turns on the bicycle lighting after dark. The user-friendly interface ensures easy, intuitive operation, and there are even more functions at your disposal and configurable electric assist. A solid trekking bike should have durable equipment. In the X-Cross bike we used Microshift gears and Alhonga brakes, a SunTour NEX E25 fork dedicated to electric bikes, or reinforced Schwalbe Energizer Plus tires. You will need fenders and a rack, a comfortable gel seat and complete lighting - we've also taken care of it all.
Capacity and range (Can be selected when ordering. If desired option is not shown, it may be sold out). IMPORTANT: distance is not MINIMUM-MAXIMUM range! Both values, for example 60-110km, are maximum distance depending on selected assist mode: [POWER]-[ECO] km. There is no minimum distance!, because it depends on many different factors. More info bellow.
13Ah: 60-100 km (MAX POWER - MAX ECO)
16AH(LG): 100-130 km (MAX POWER - MAX ECO)
17.5AH(LG): 90-140 km (MAX POWER - MAX ECO)
Voltage: 36 V

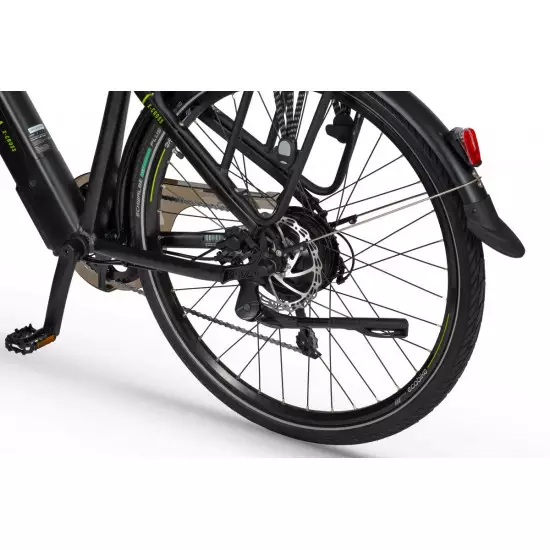

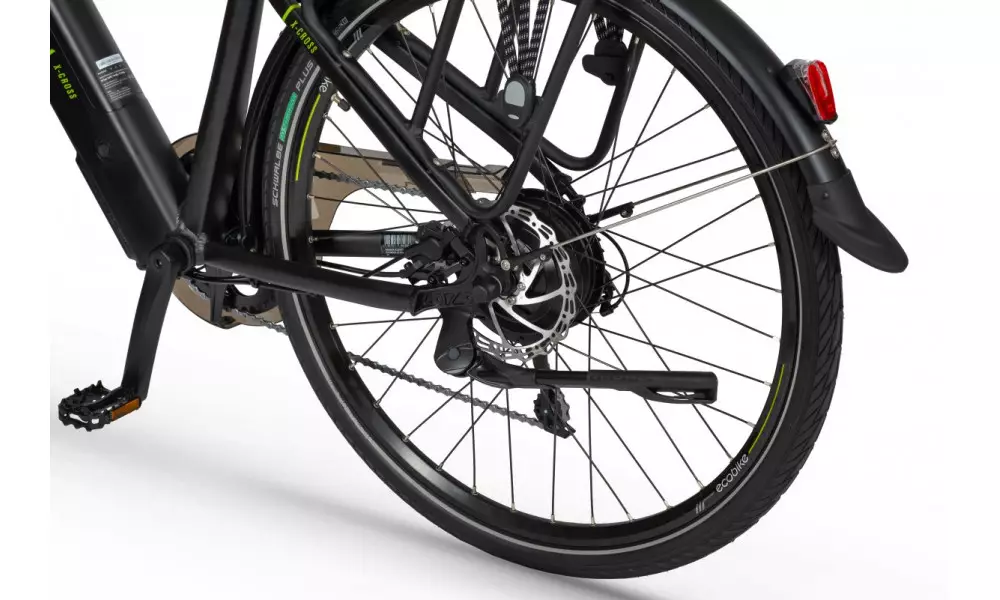

Mount: rear wheel hub
Motor assisted speed: 35 km/h (Limited to 25 km/h in accordance with EU standard EN 15194)
Torque: 45 Nm
Motor's brand: BAFANG
Power: 250 W
Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 540 W
Fuses: 30 A
Lifespan: 700 charges
Voltage: 36 V
Charger: 220-240V/42V / 2A / D type
Cells brand: LG
Smart BMS (Battery Managment System)
Battery can be removed for charging
CHARGING TIME: 4-8 hours
FRAME: Hydroformed aluminium
FRAME SIZE: 20"

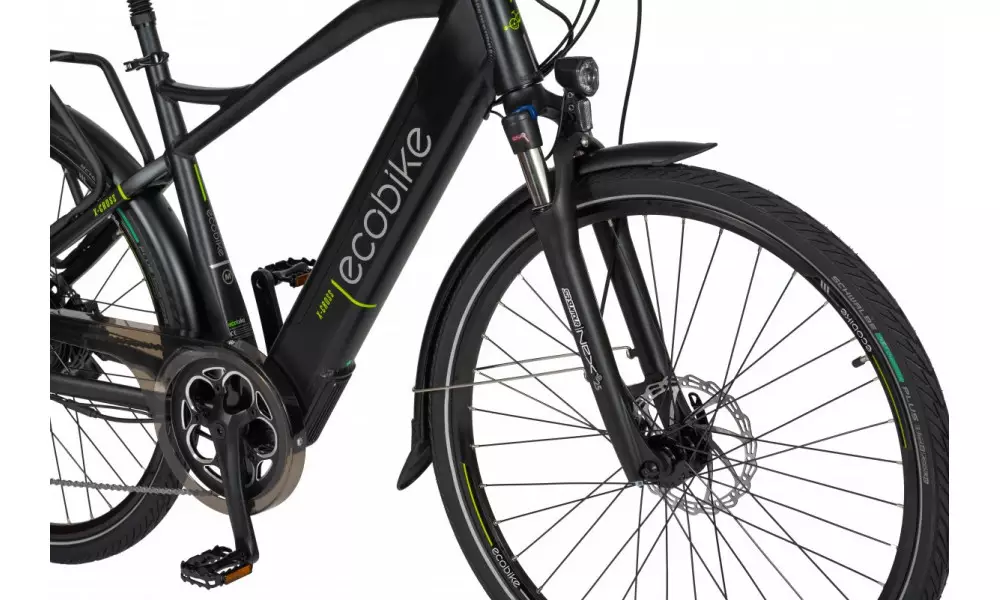

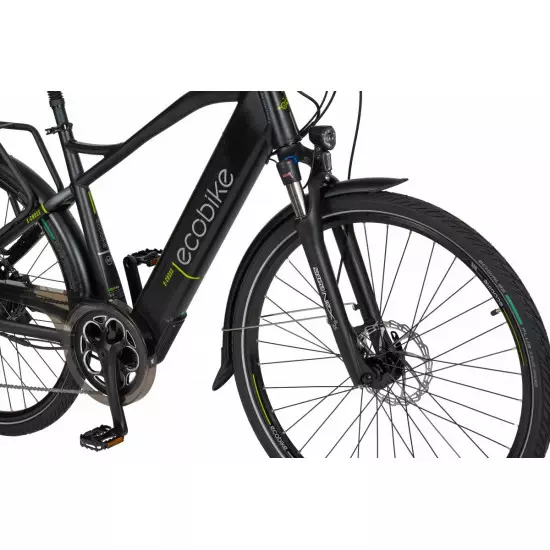

FORK: SR Suntour SF15 NEX-E25 LO, travel: 63mm, suspension
BRAKES: Alhonga HJ-HT472 hydraulic disc
CHAIN: KMC X9

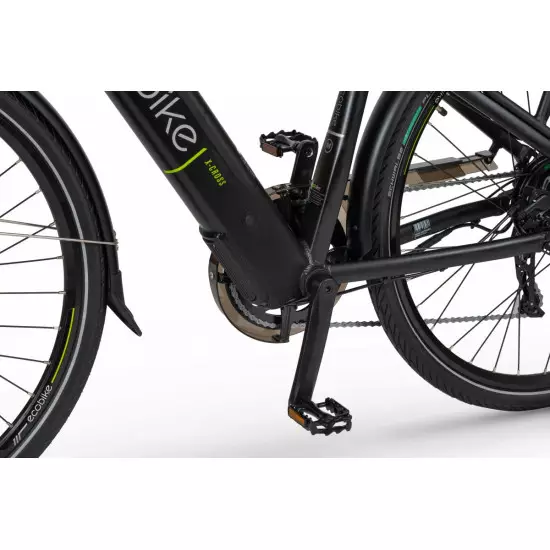

CHAINWHEEL: Topwheel Ounce 248A, 1 speed, teeth: 48T, crank arm length: 170mm
REAR DERAILLEUR: Shimano ALTUS 9-speed
FREEWHEEL: Shimano CS-HG200-9 9-speed 11-36
HANDLEBAR: Promax HB-3188, aluminium, diameter in stem fixing spot (center): 31.8mm
STEM: Promax MA-595S, aluminium, adjustable
HUBS: Front hub: KT-K68F-QR 13G 36H 9x100mm / Rear Hub: Engine
RIMS: 28", reinforced
SADDLE: Selle Royal LOOKIN
SEAT POST: Promax SP-886, suspension, diameter: 27.2mm, length: 350mm
SHIFTERS: Shimano Altus SL-M2000 9-speed
SPOKES: stainless steel, SAPIM
TYRES: Schwalbe ENERGIZER PLUS 28 x 1.75 (47-622)
WEIGHT: 26,7 kg
MUDGUARDS: For front and rear wheel, with u-stays
GRIPS: VELO VLG-776
KICKSTAND: Rear, adjustable length, aluminium
CARRIER: Aluminium, max.: 25kg, with carrier straps
LIGHTS: Rear Light: Spaninga MLL XE / Front Light: Spaninga KENDO XE
Length: 183.5 cm
Distance from saddle to stem: 61 cm
Height (max saddle-ground): 101 cm
Height (max handlebar-ground): 115 cm
Height (seatpost clamp-ground): 72.5 cm
Height (frame overstep-ground): 44 cm
Maximum load: 125 kg
Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
Lifespan - stated number can be lower if stored and used improperly
Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
IMPORTANT (last updated: 2023-03-16): Despite Covid-19 situation in most countries have normalized – the effects of this pandemic are still present. Due to sustained extremely high levels of demand in conjunction with the intense pressure on delivery chains, some parts may be replaced with alternatives of equivalent value, so bicycle will be assembled with them. Those parts may have different color, model, manufacturer and/or size, diameter for some parts (handlebar/stem/seatpost). To keep overall technical level the same, manufacturer will use technically identically matching alternatives. Changes in the production process are made during planned production, so producers do not always have the ability or obligation to give advance notice about these changes. As a result, we may not always be able to change the description and/or photo in time. If bicycle has some parts that does not match the description below and there are no compatibility/technical issues – manufacturer will not replace it! In the worst case, i.e. if a compromise cannot be found between the two parties - if you as a consumer are not happy with the replacement - the bike can be returned, but it must be unused.
