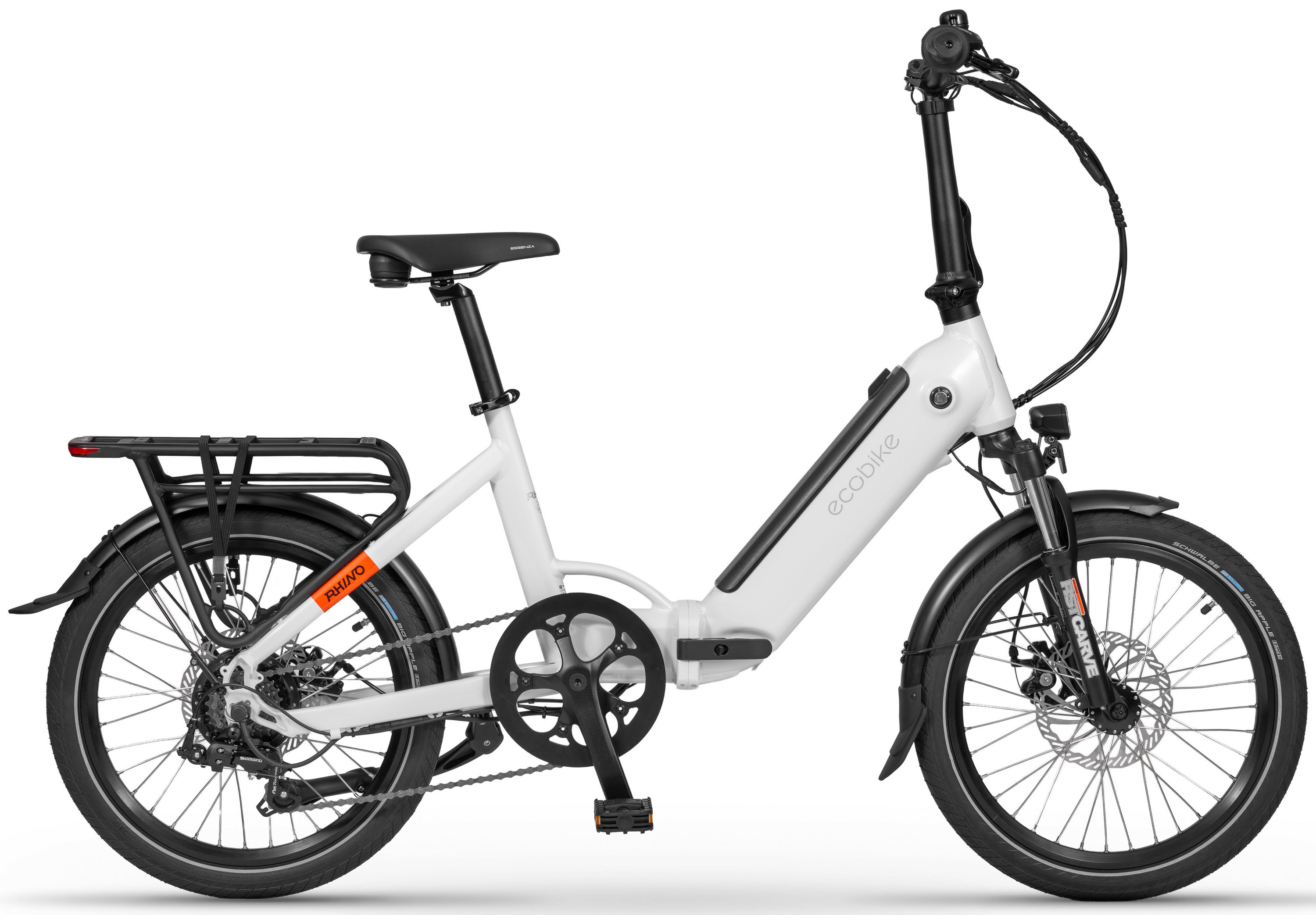

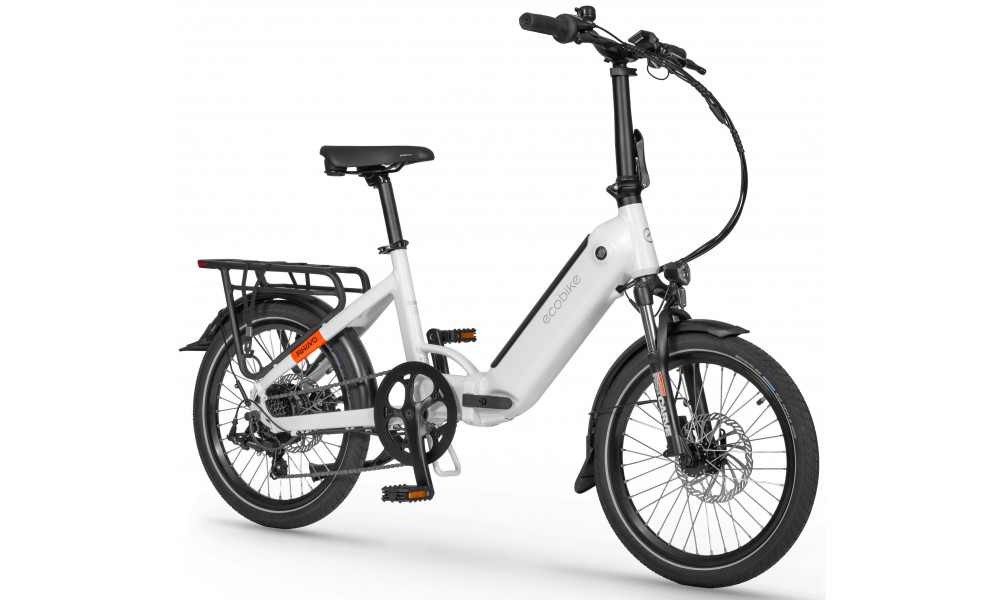

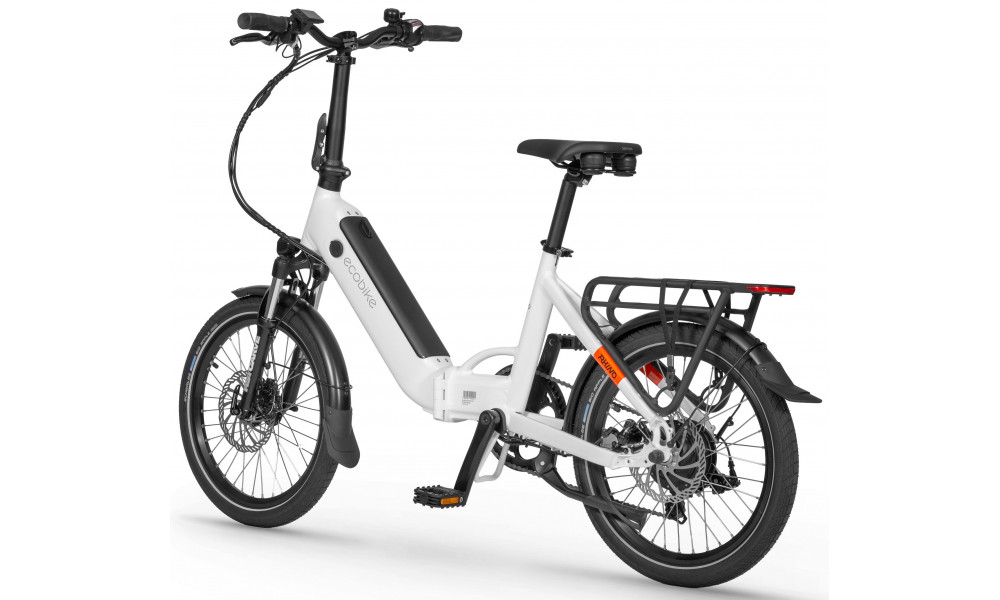

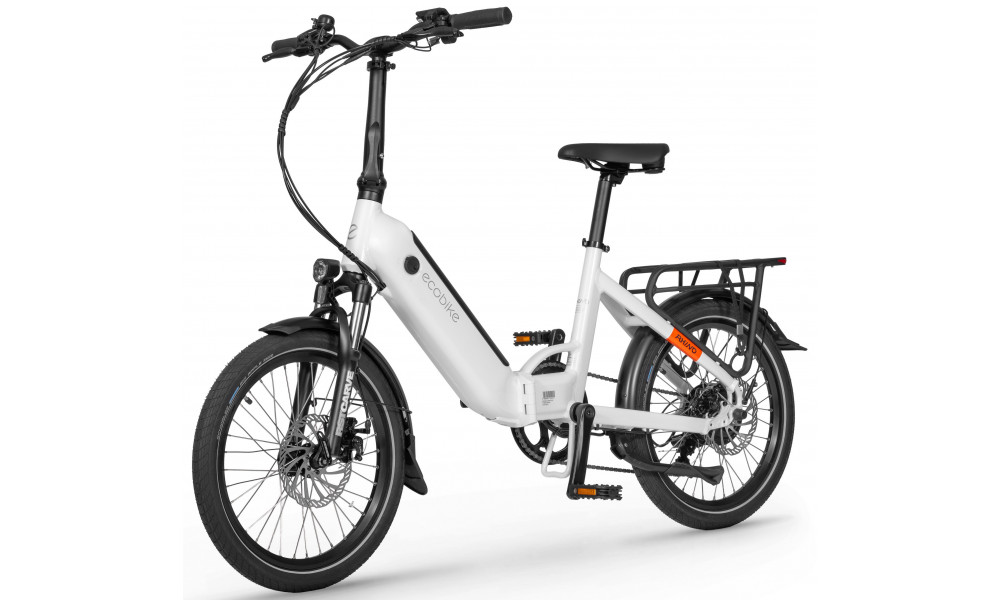

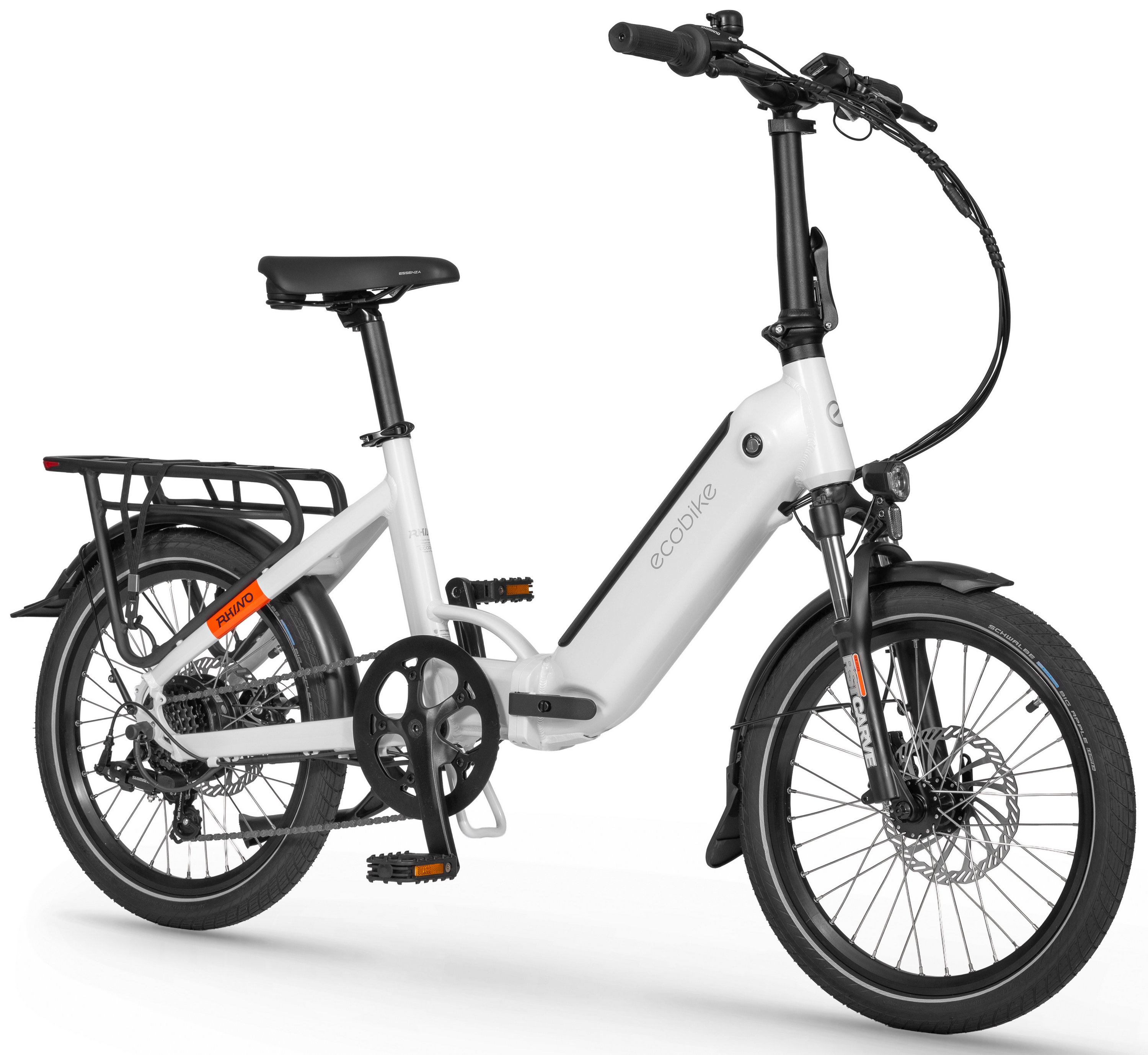

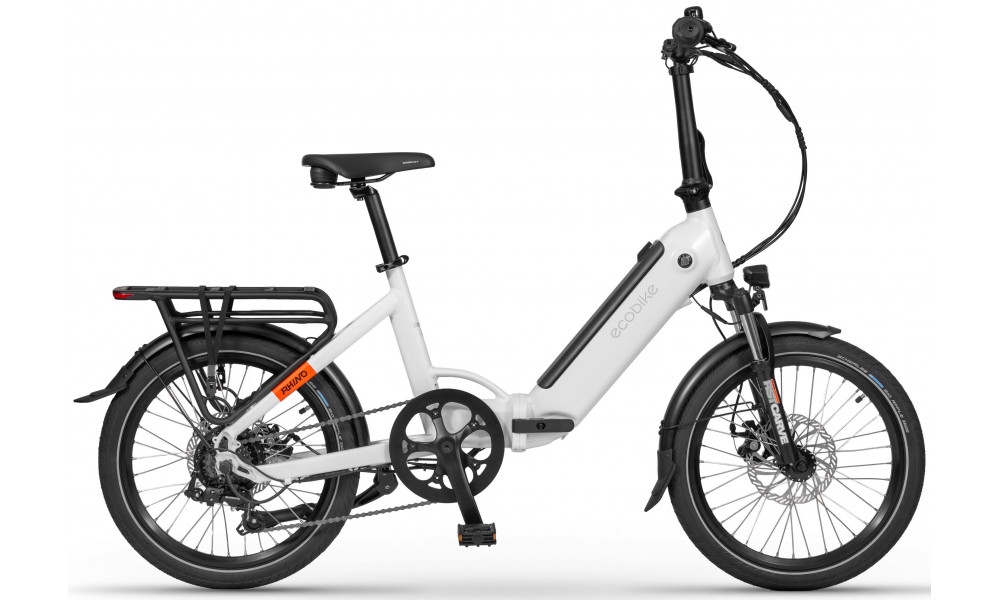

Kirjeldus - Elektrijalgratas Ecobike Rhino Arctic White 504Wh
Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent.

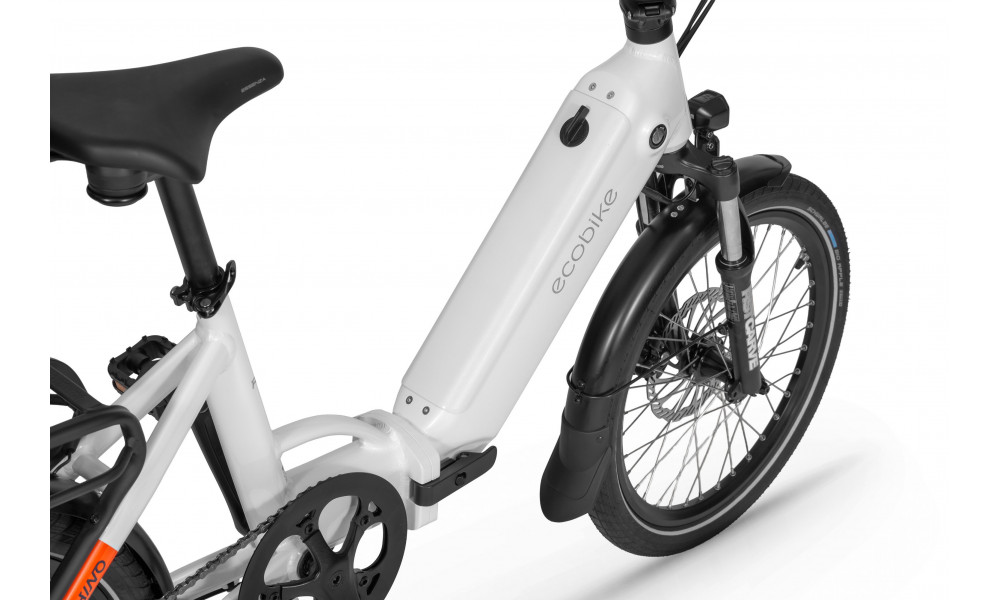

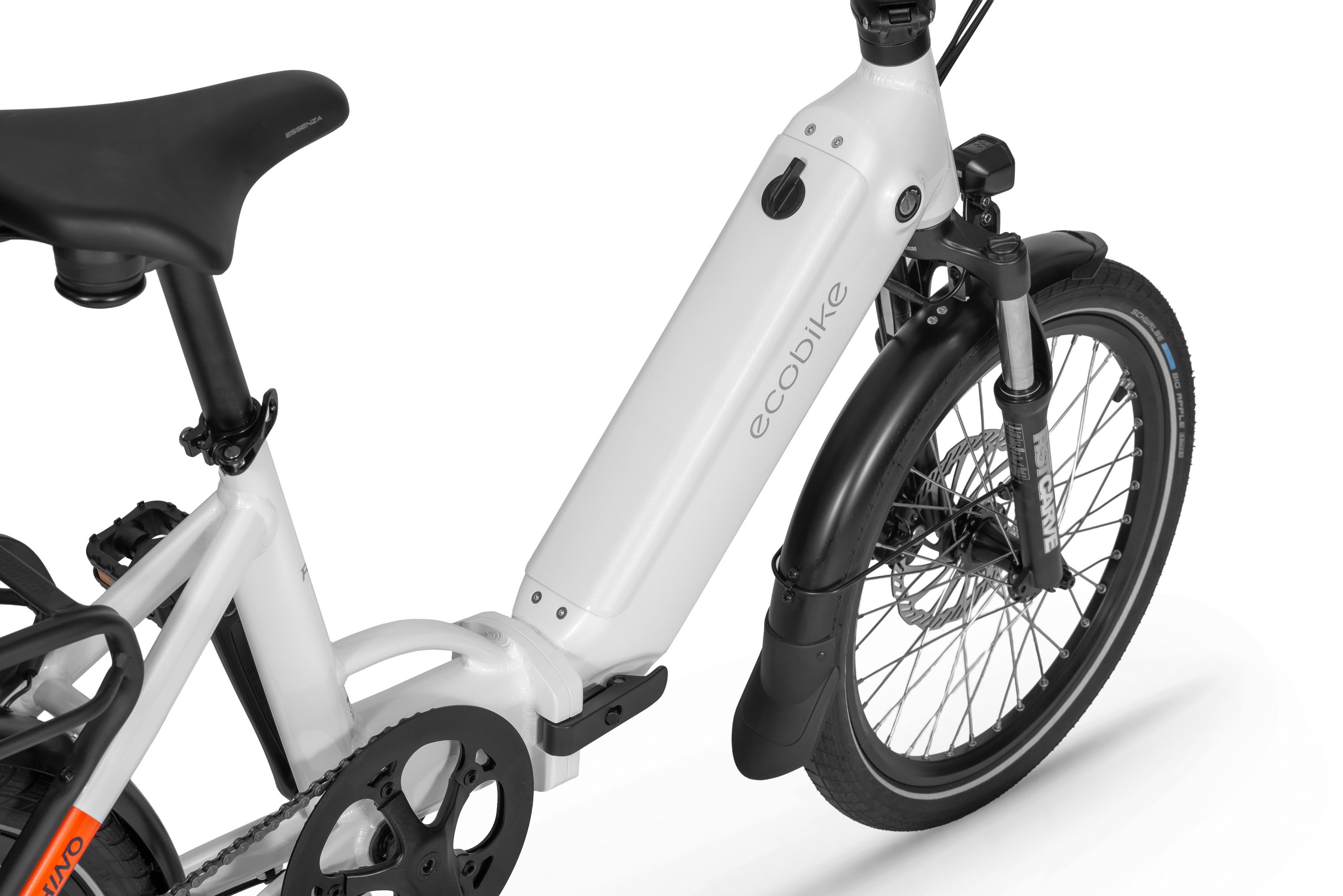

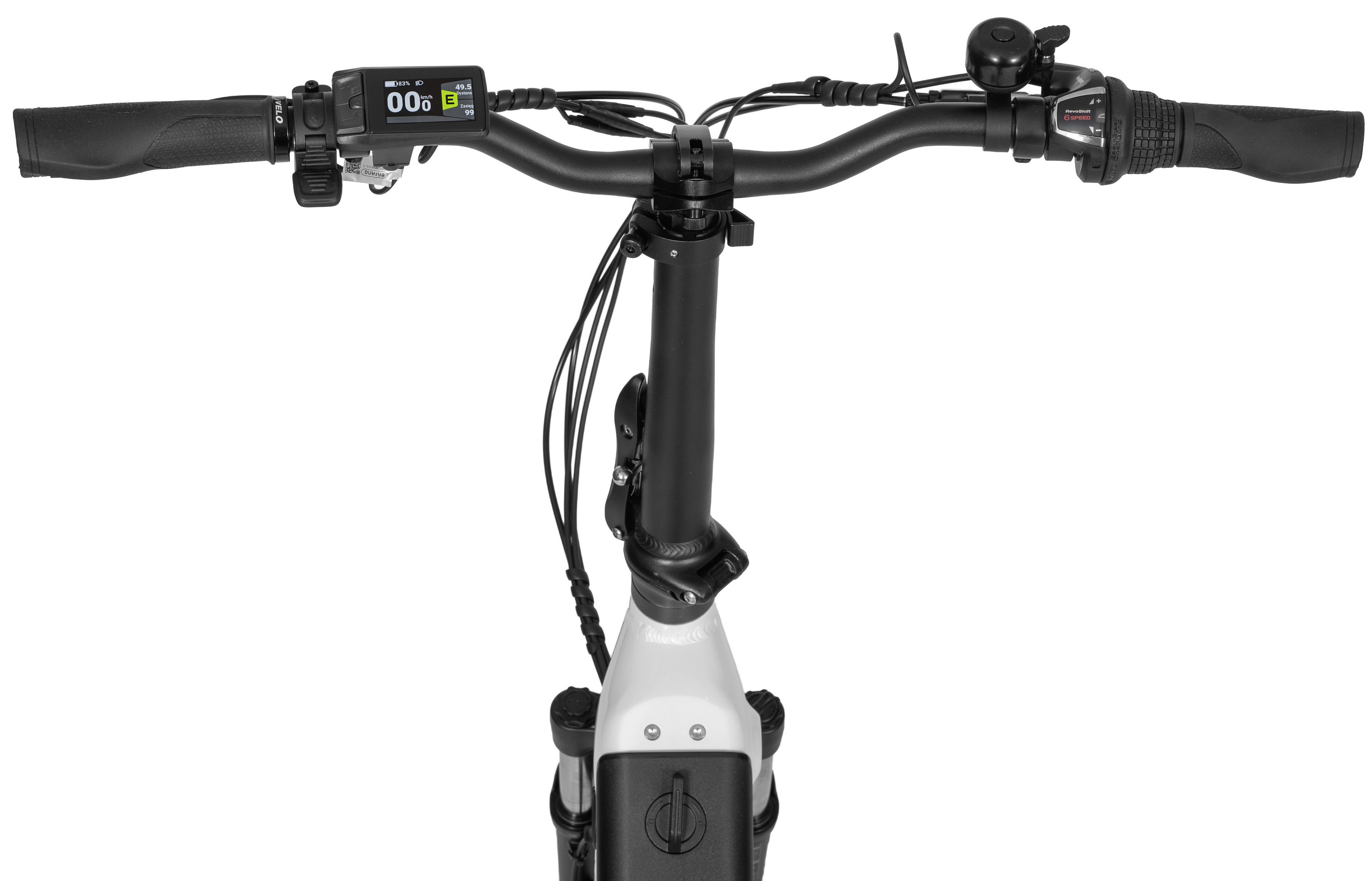

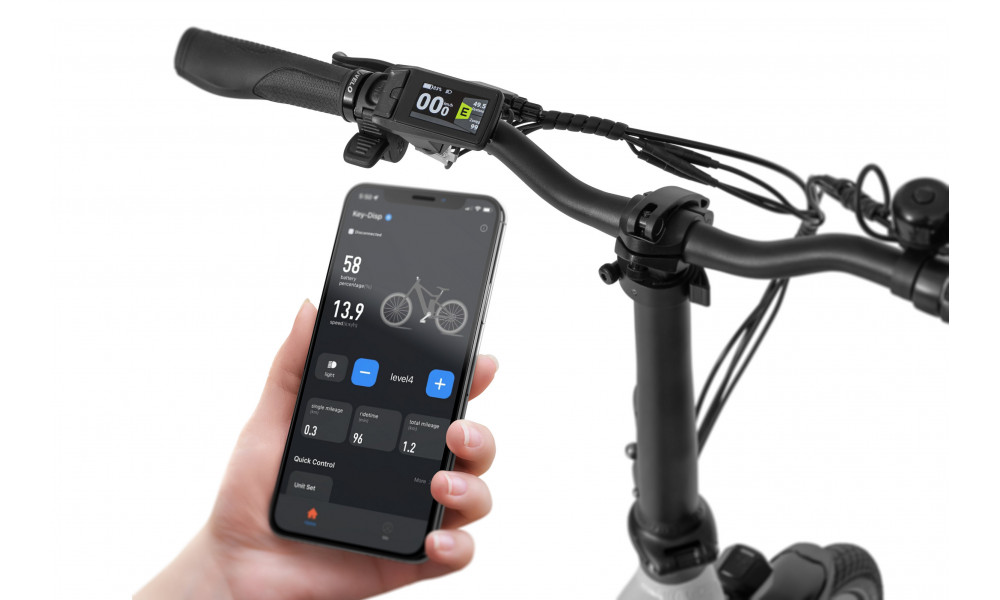

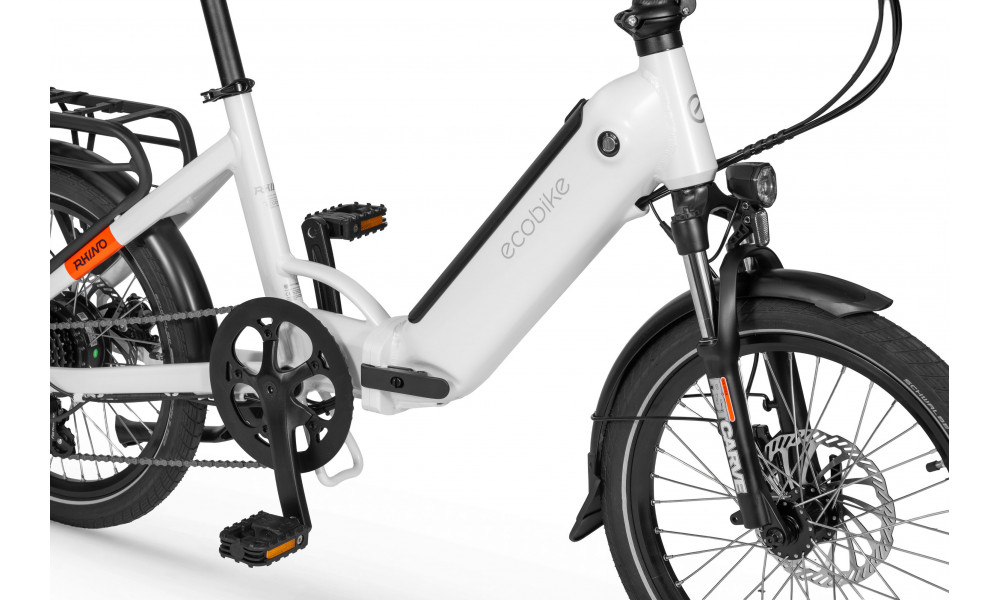

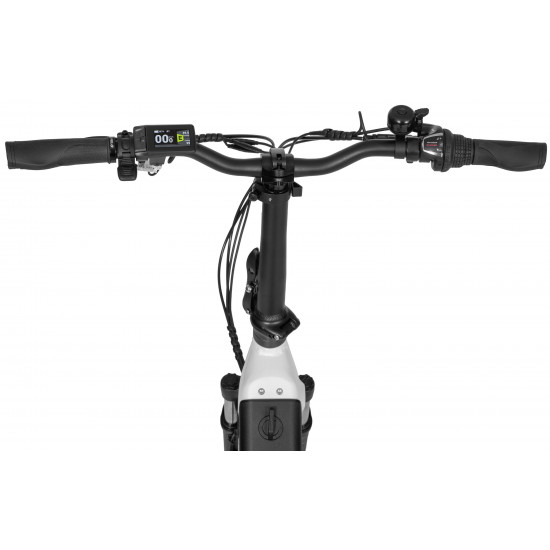

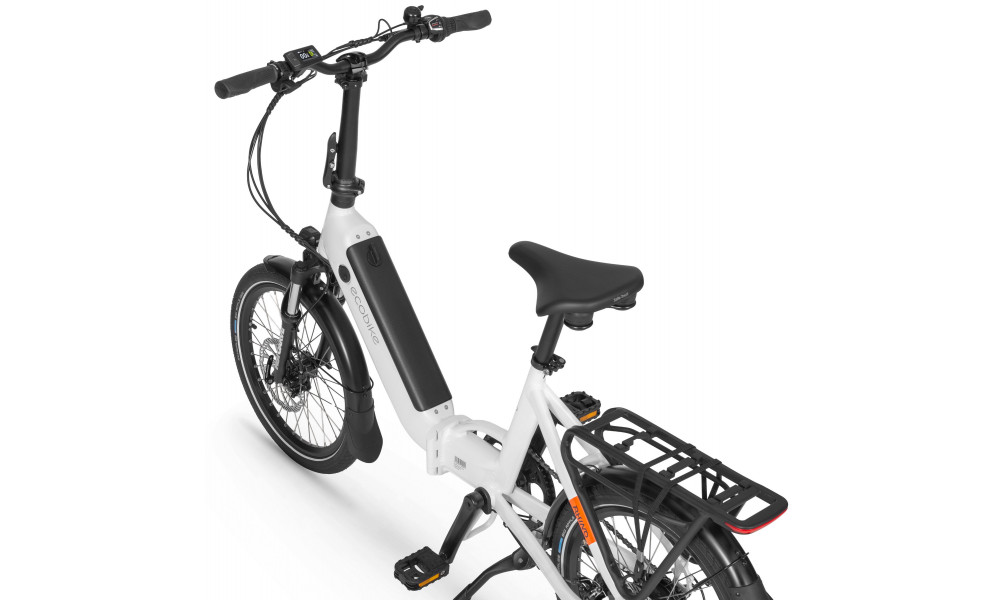

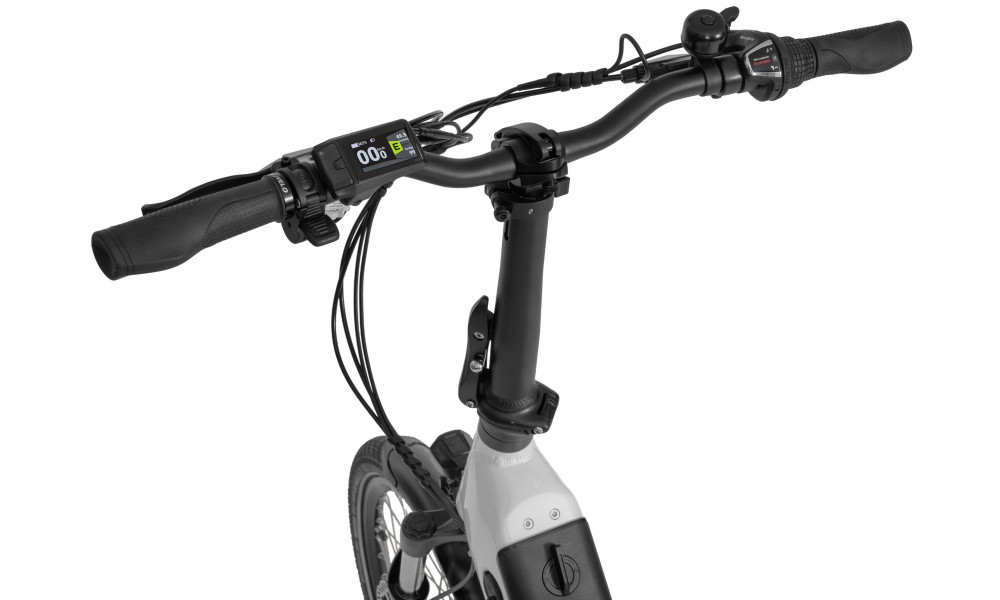

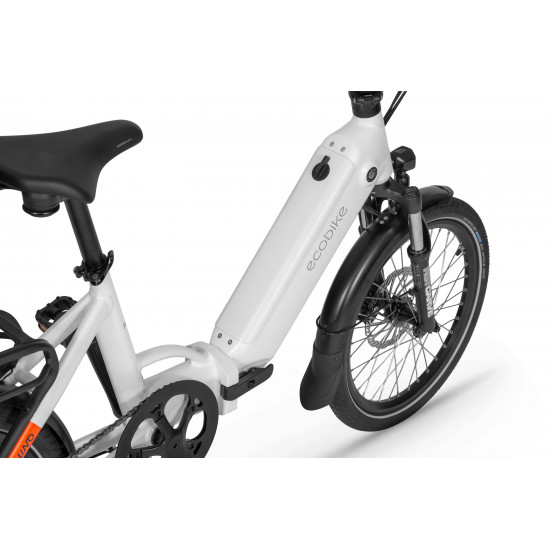

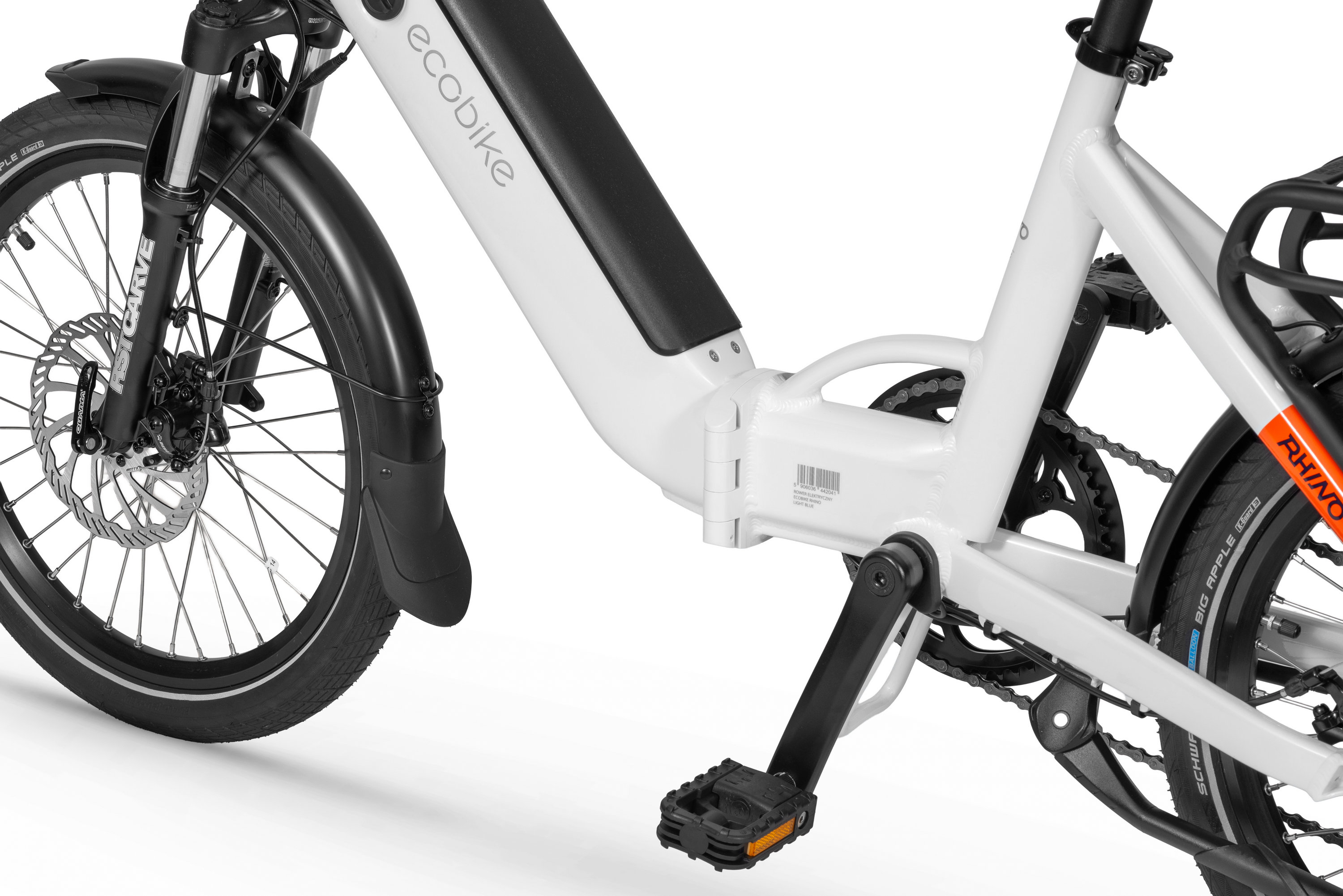

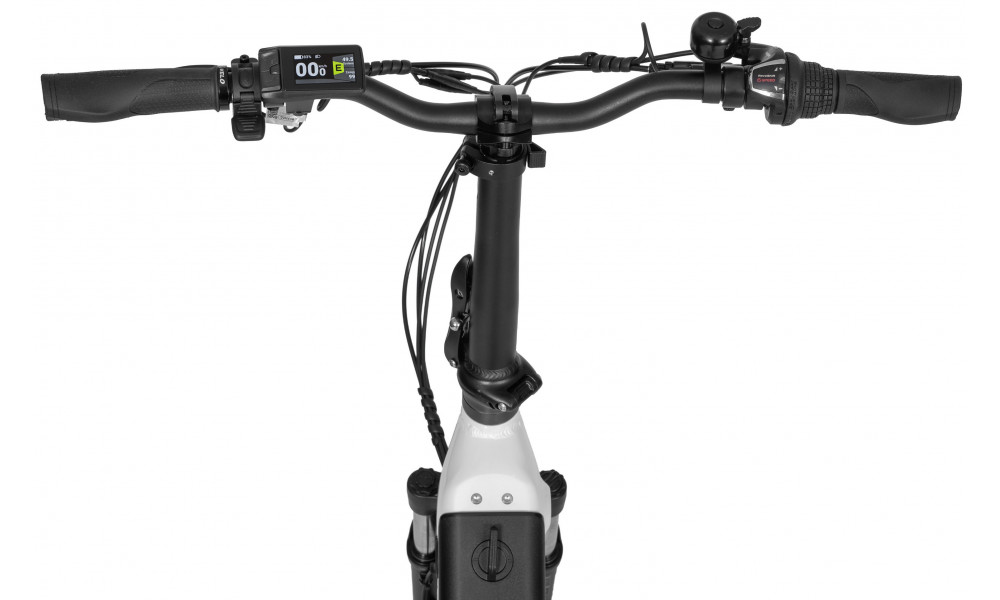

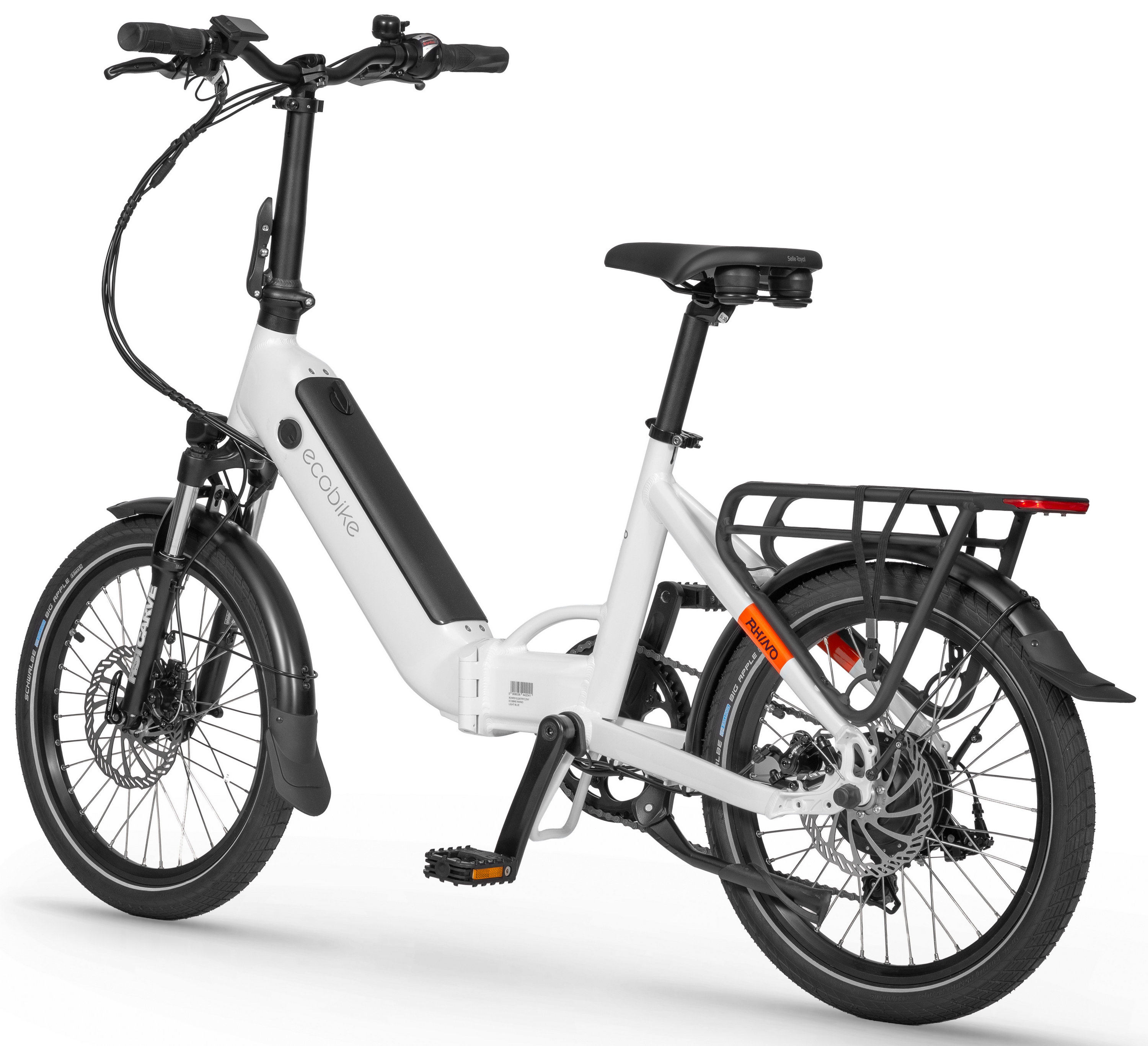

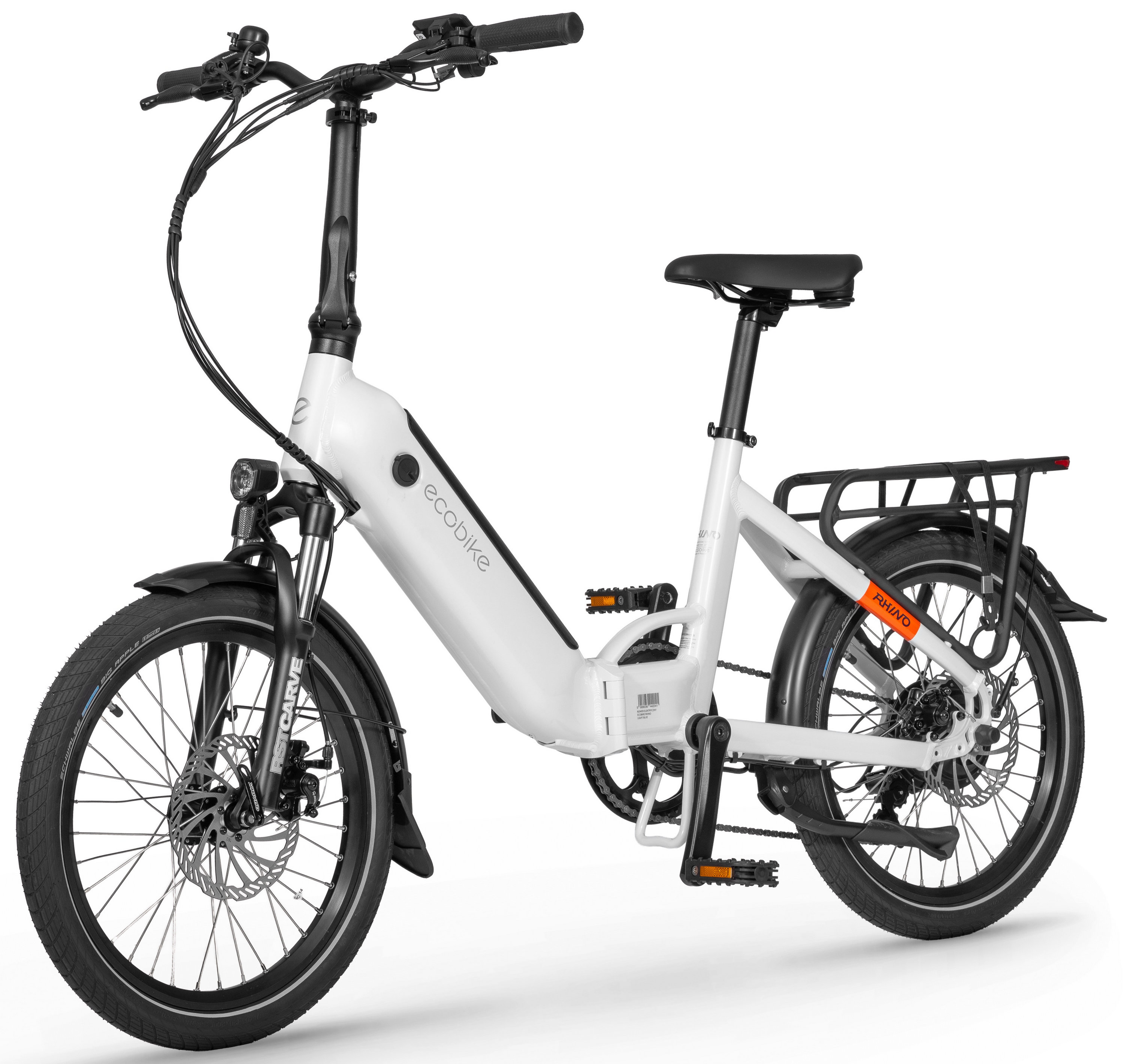

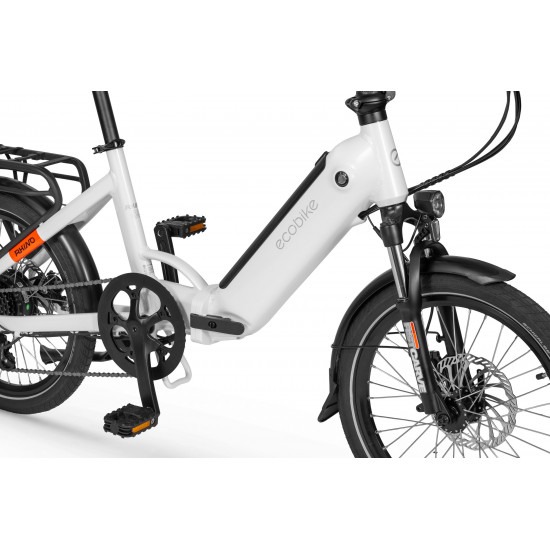

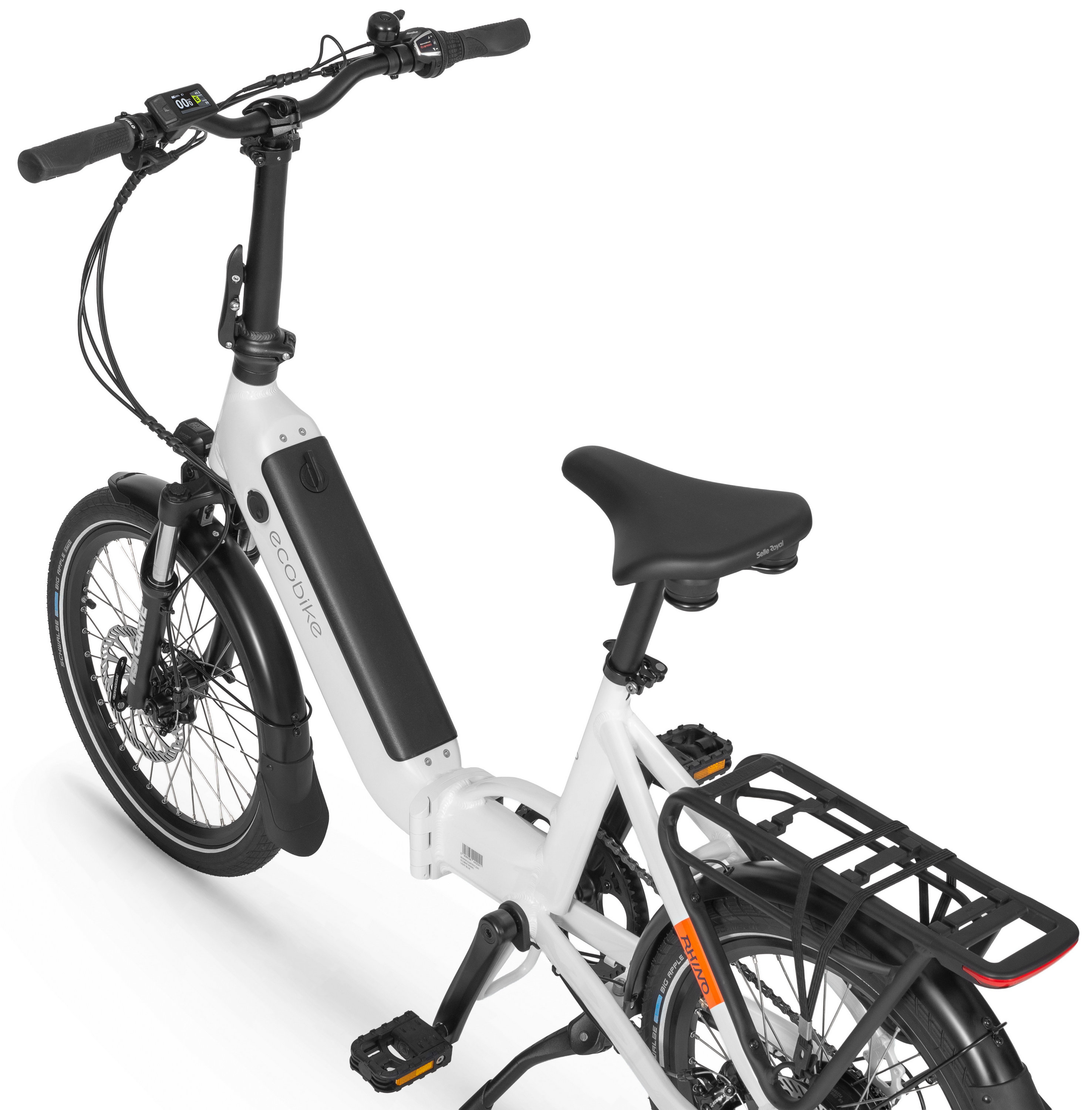

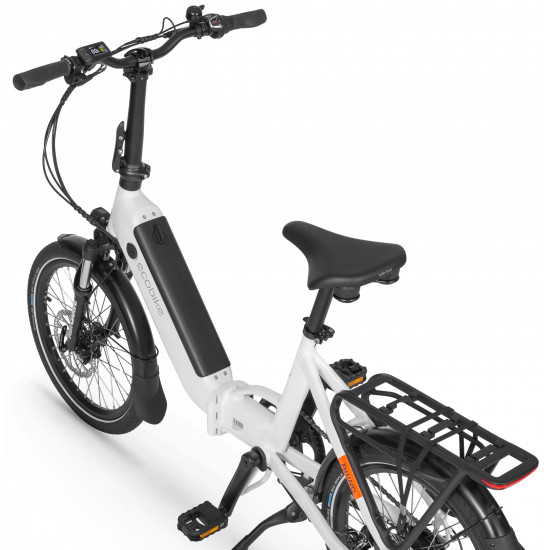

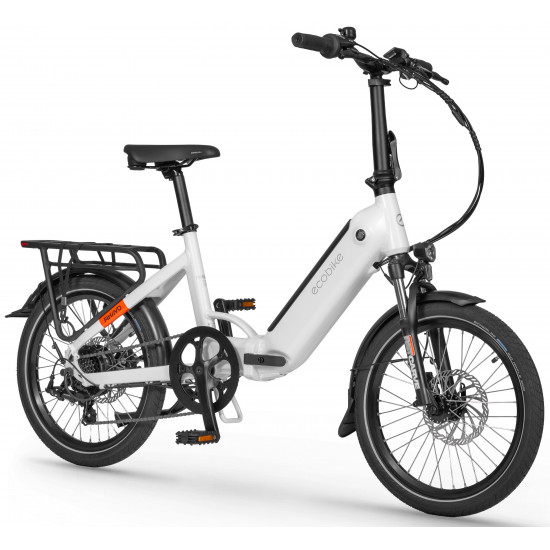

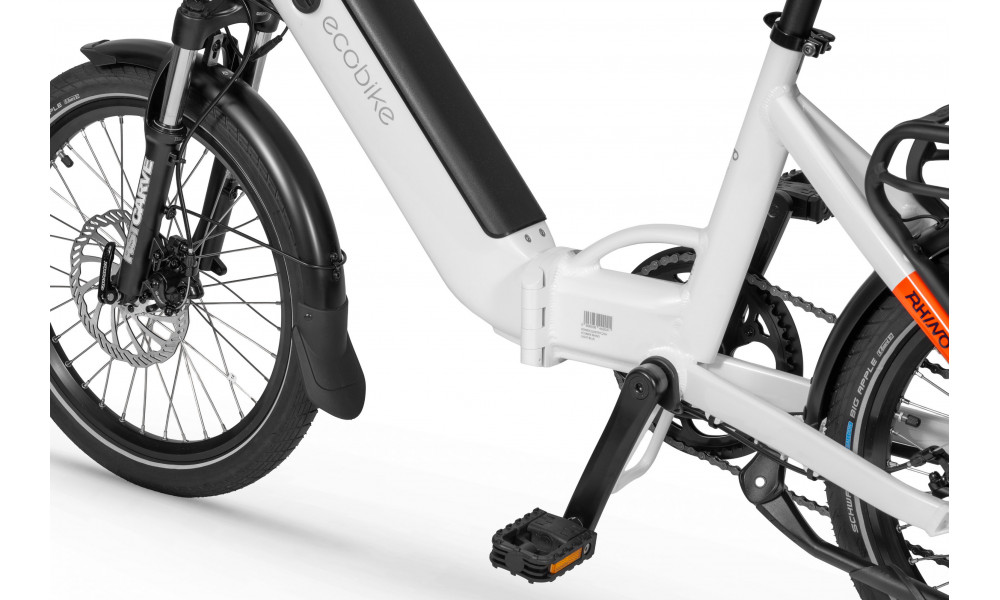

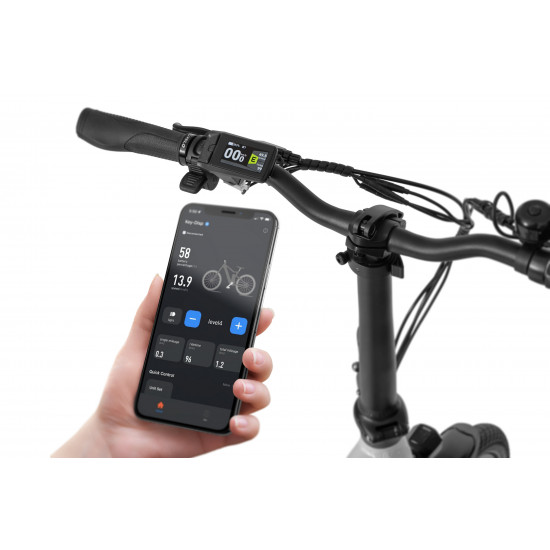

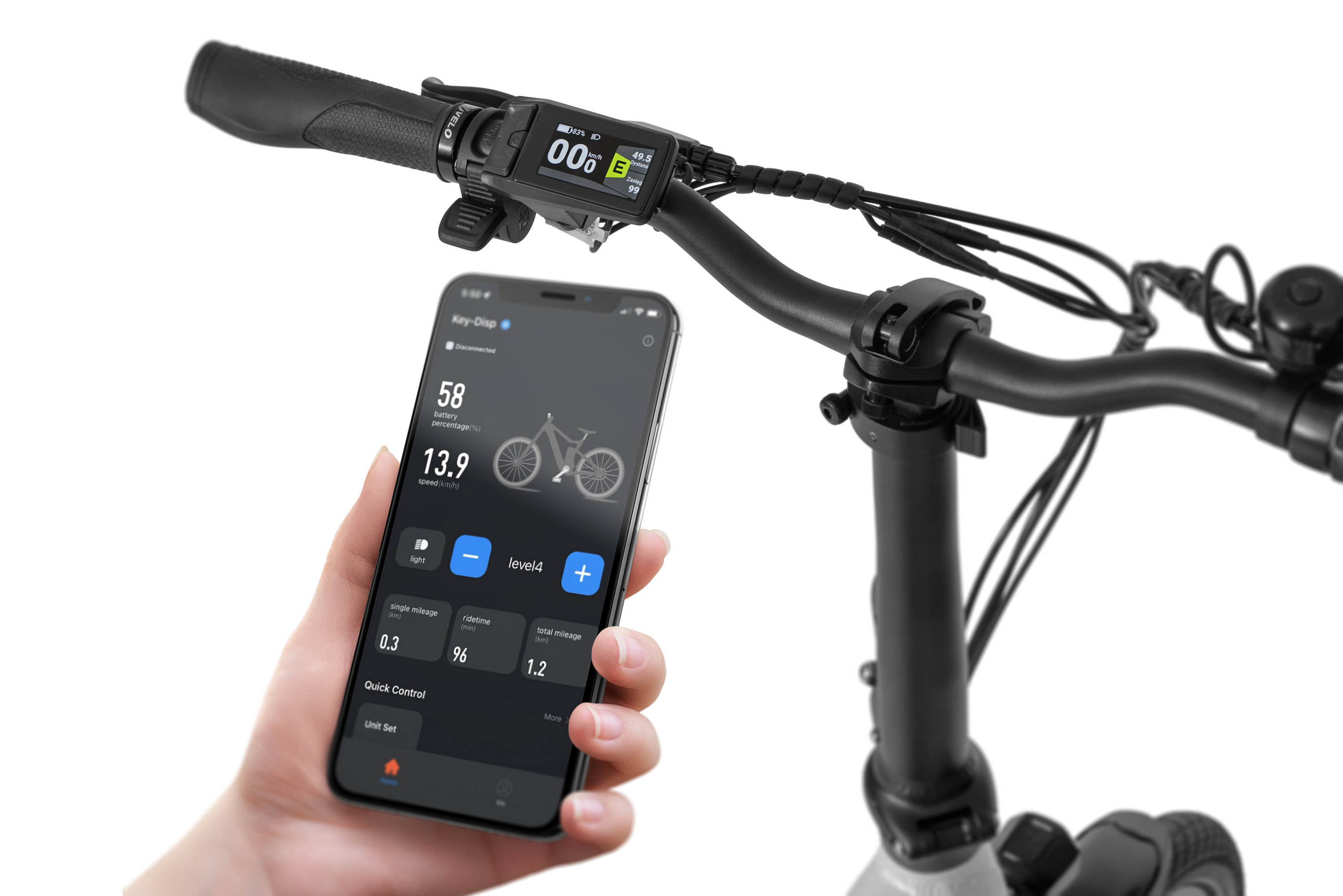

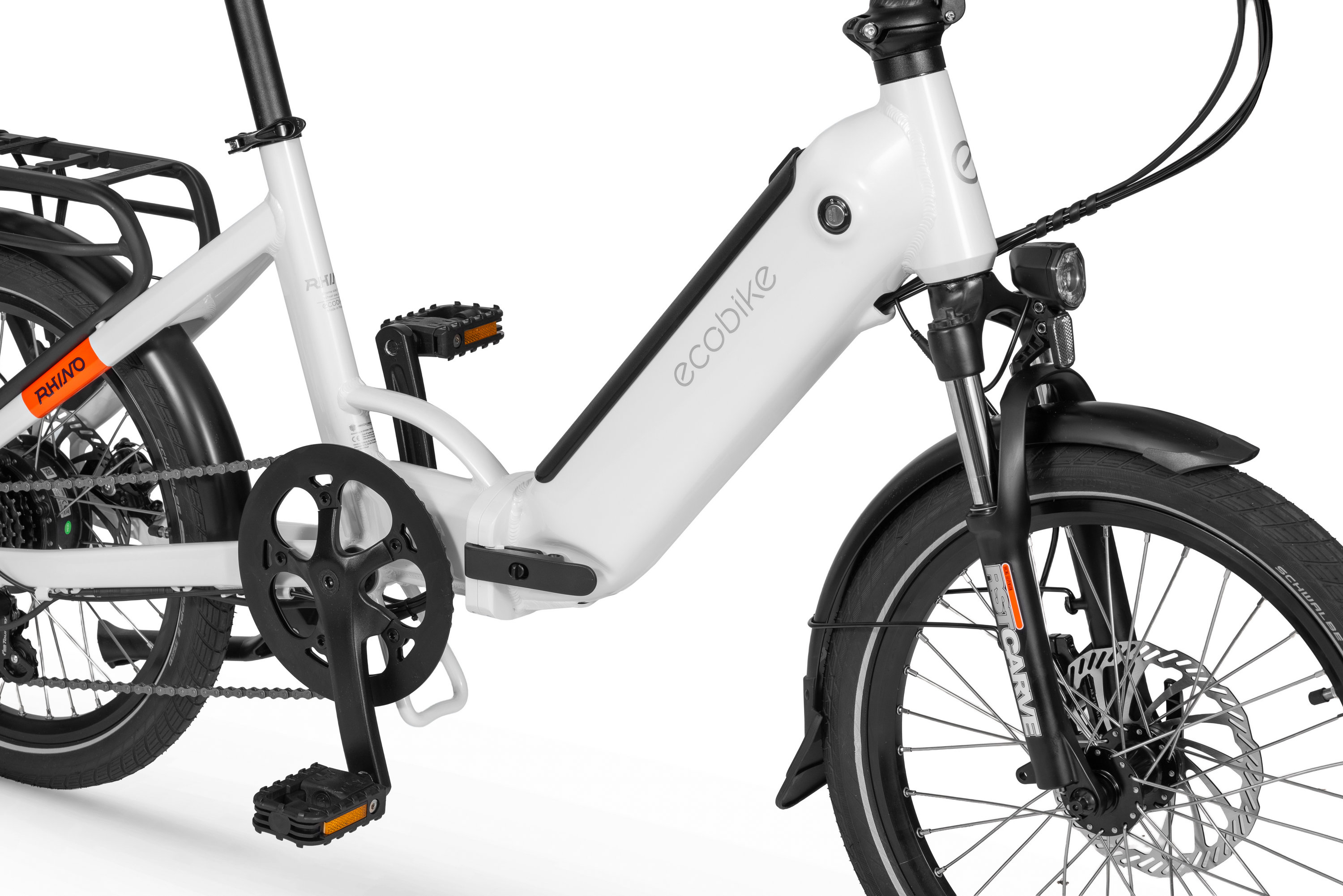

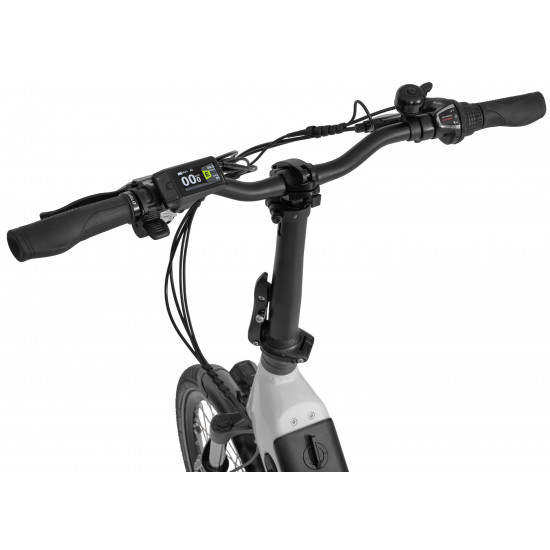

A sophisticated design, reliable technology and functionality are the main elements from which Rhino has been created. The frame is the main innovation compared to other foldable electric bicycles. Thanks to a fully integrated battery, completely placed in a new, solid construction, we have obtained excellent ergonomics, and the bike looks great. It has become more convenient to insert and remove the battery. Rhino's electric system is based on a technology appreciated by users. The proven Bafang motor works in the rear wheel's hub, with the support of a modern controller. The assistance is managed via an easy-to-use LCD display. Apart from many possibilities of setting the motor work, it also shows a lot of necessary information about the entire system and user activity. The whole is complemented by durable Shimano accessories, RST Carve shock absorber and IMPAC tires that are durable and provide great comfort.
- Capacity and range:
- 504 Wh: MAX 120 km
- Voltage: 36 V
- Mount: rear wheel hub
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 32 Nm
- Motor's brand: BAFANG
- Power: 250 W

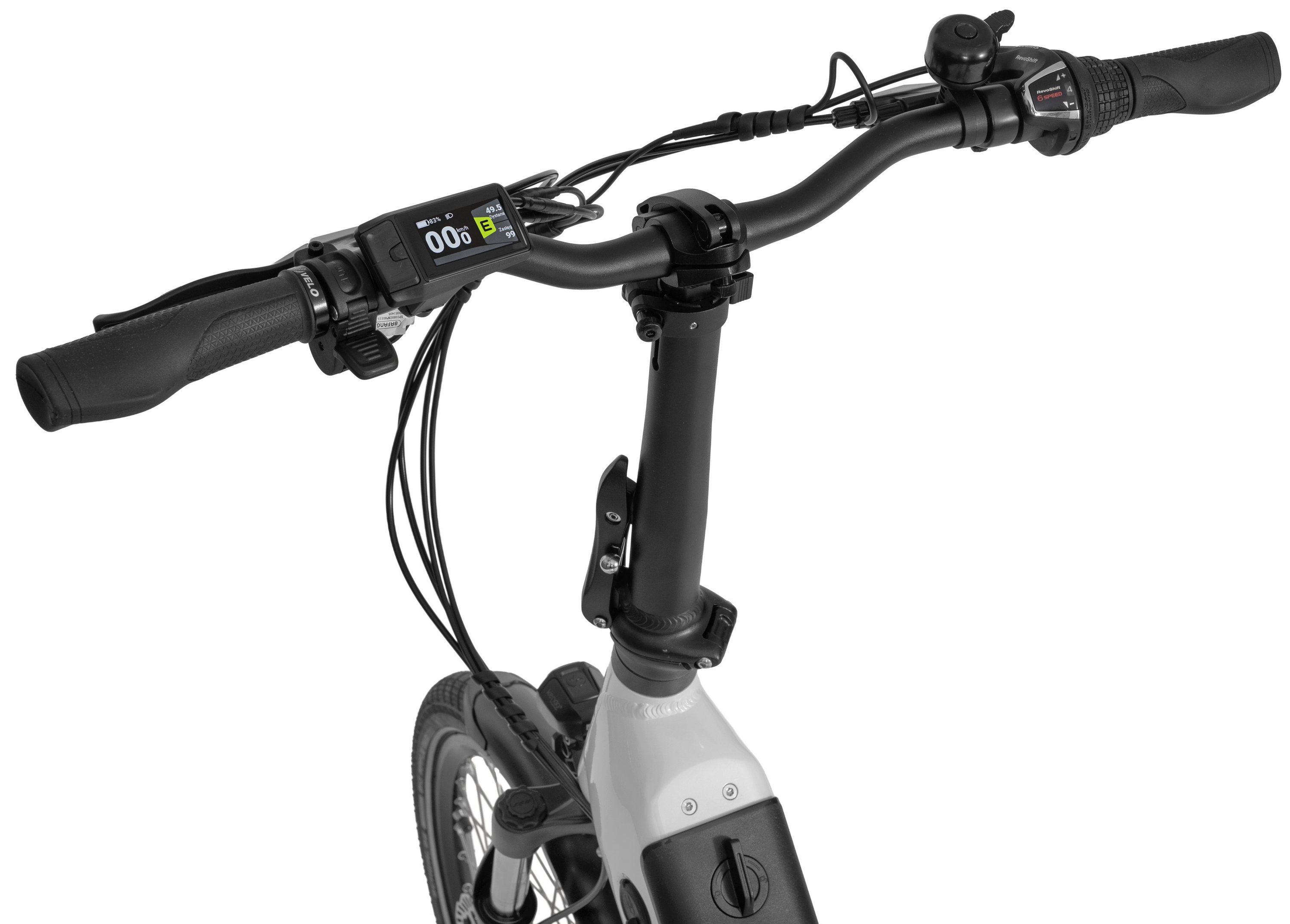

- Computer: DP C080
- Lifespan: 700 charges
- Charging time: 4-8 hours
- Type: Li-ion
- Voltage: 36 V
- Charger: 100-240V / 42V 2A
- Cells brand: EVE
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 4-8 hours
- FRAME: Hydroformed aluminium
- FRAME SIZE: 15.5"
- FORK: RST CARVE-D-20, 50 mm travel
- BRAKES: Bangeal MB 500, mechanic disc brakes
- CHAIN: KMC z7, 108L

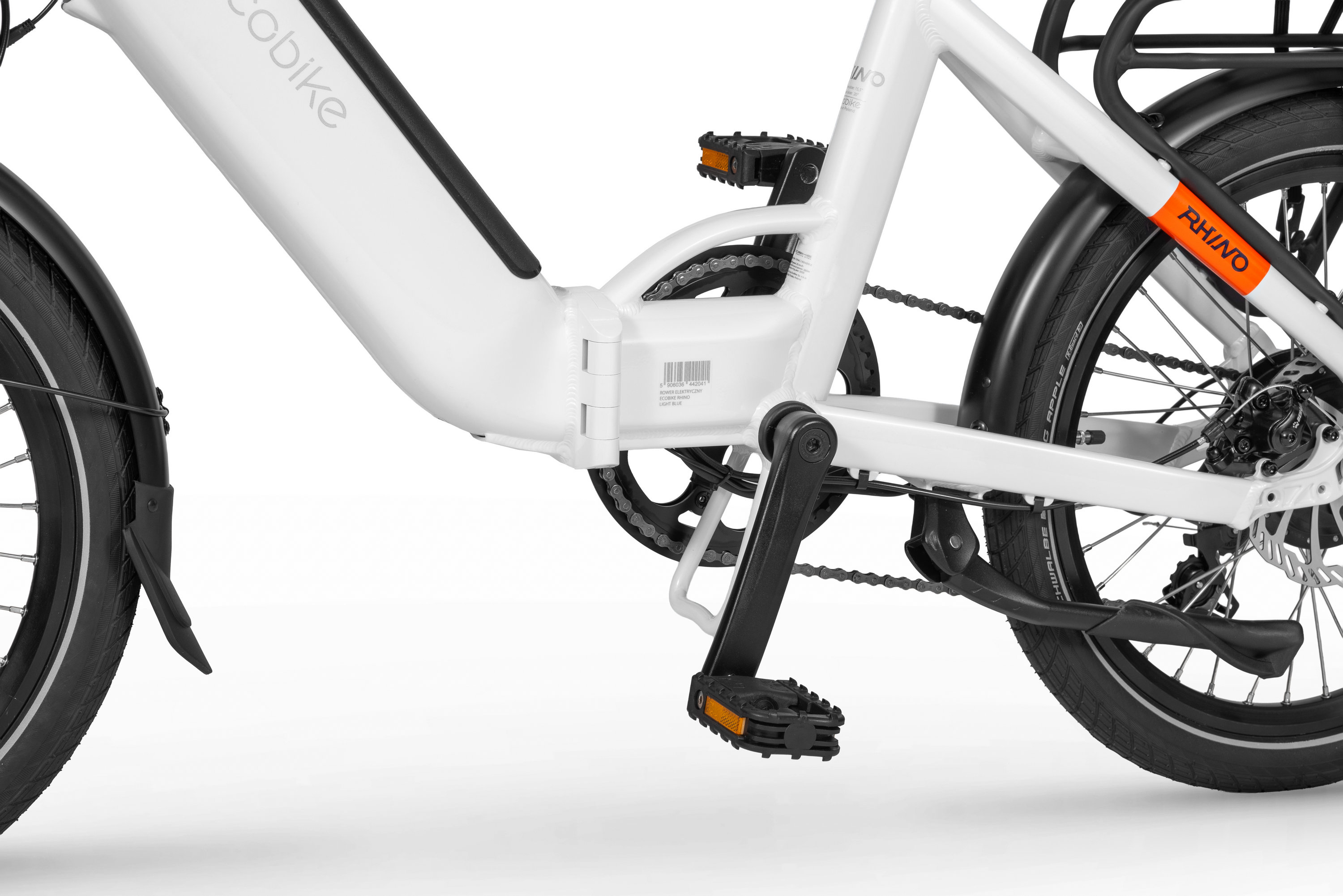

- CHAINWHEEL: Prowheel 50T, 165 mm
- REAR DERAILLEUR: Shimano Tourney, 6-speed
- FREEWHEEL: Shimano MF-TZ50, 14-28T, 6-speed
- HANDLEBAR: Promax, 640 mm x 25.4 mm
- STEM: FH FH03W, 25.4 mm / 70 mm
- HUBS: Front hub: KT KT-SN6F, 36H, 100W, QR
- PEDALS: VP F55 foldable
- RIMS: 20" reinforced three-chambered rims, Sapim spokes
- SADDLE: DDK
- SEAT POST: Promax SP-252, 30.9 mm x 350 mm
- SHIFTERS: Shimano Tourney 6-speed
- TYRES: 20" x 2.0 Schwalbe Big Apple
- WEIGHT: 23.2 kg
- SPEEDS: 6
- MUDGUARDS: For front and rear wheel, with u-stays
- GRIPS: VELO VLG-1985-2D3
- KICKSTAND: Rear, adjustable length, aluminium

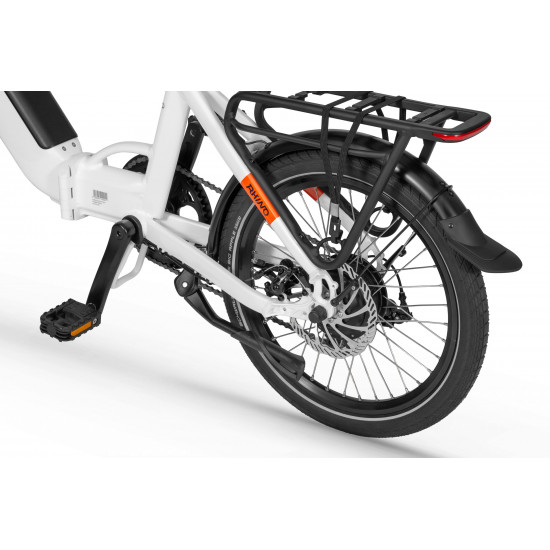

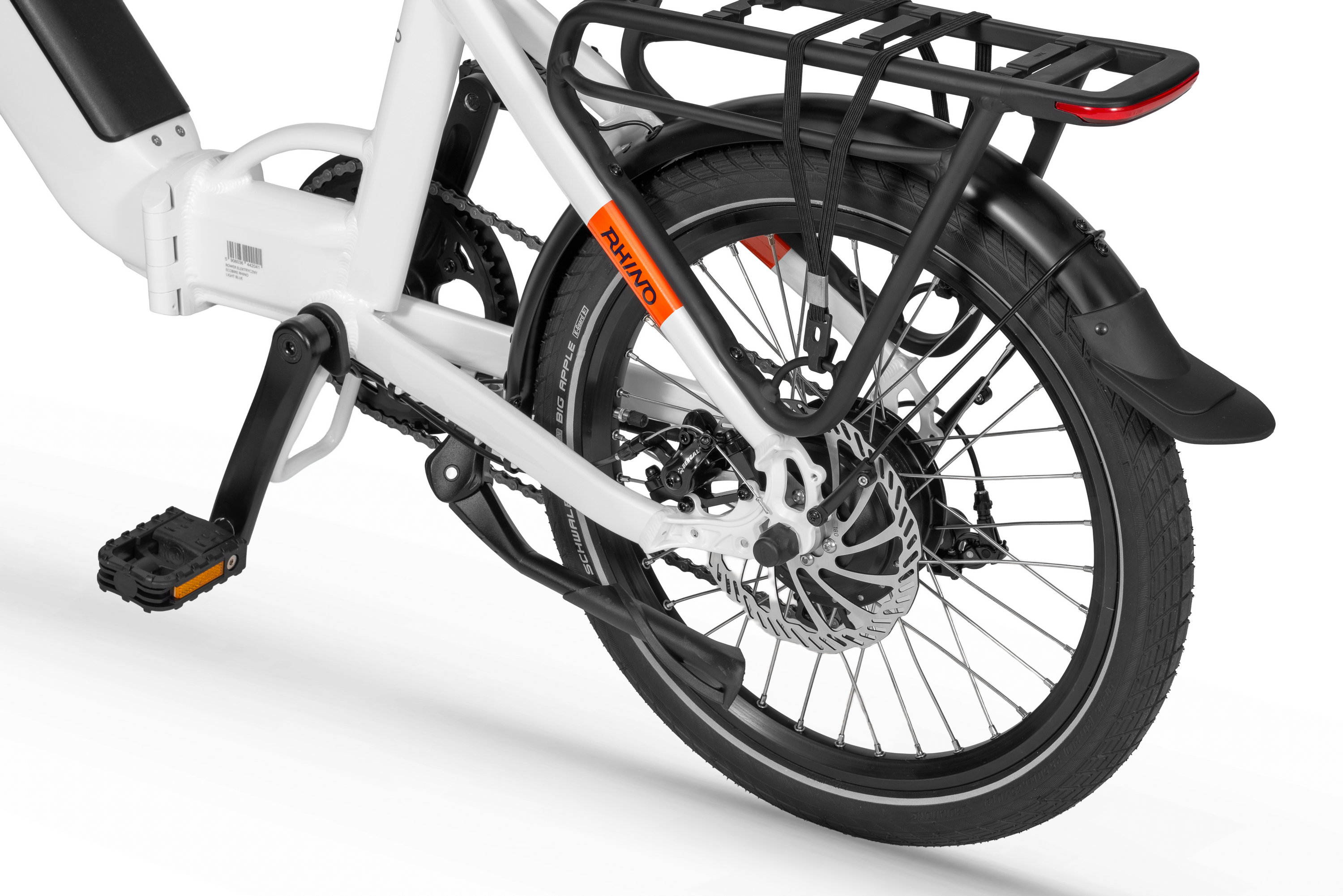

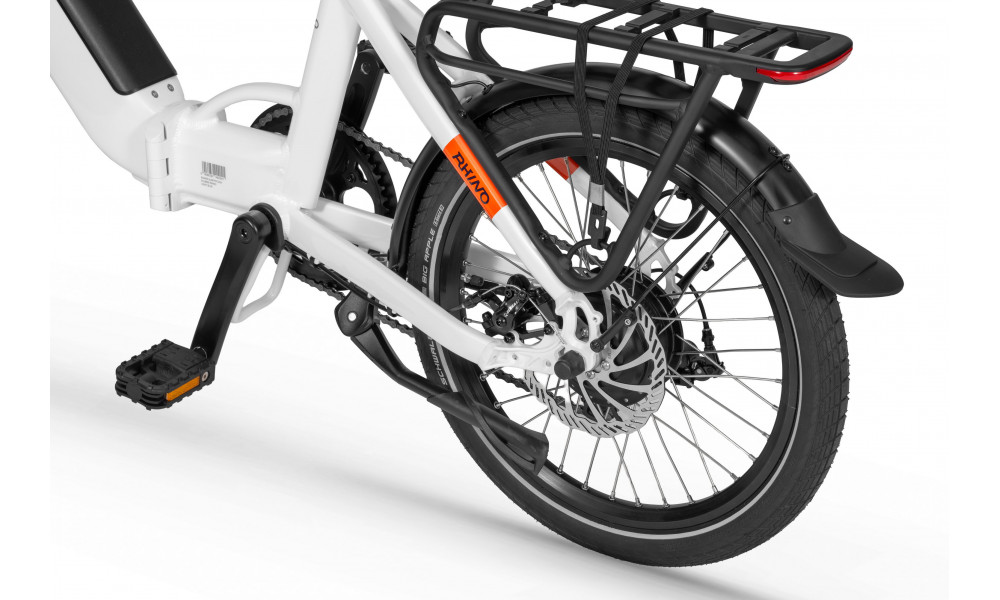

- CARRIER: Aluminium, max.: 25kg, with carrier straps
- LIGHTS: Rear Light: Spaninga RL1900 XE / Front Light: Spanninga Kendo XE 6-36V
- Effective top tube length: 619.9 mm
- Head tube lenght: 135 mm
- Frame size: 365 mm
- Wheel base: 1093.60 mm
- Seat tube angle: 73
- Headset angle: 72.50
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
