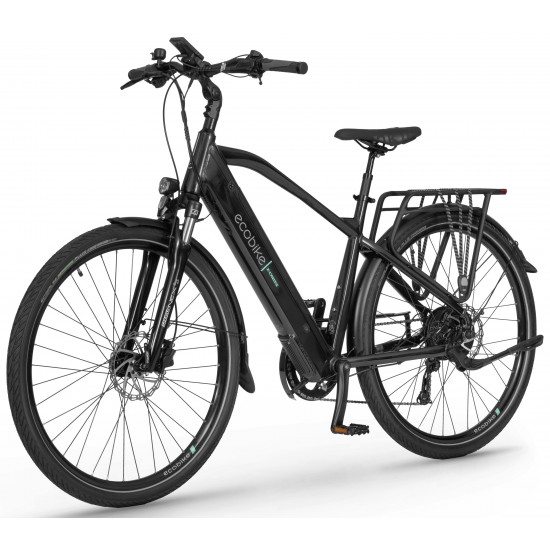

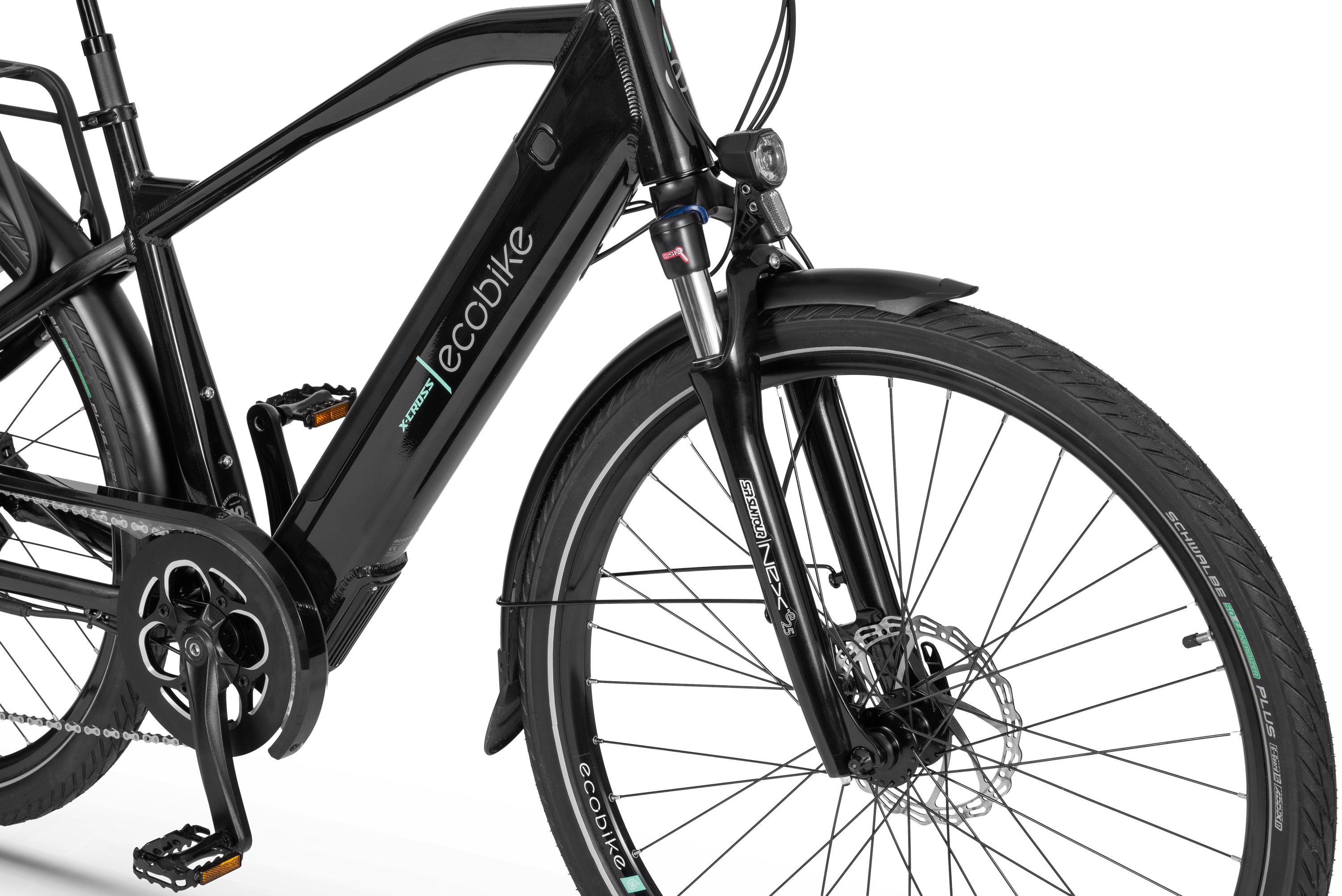

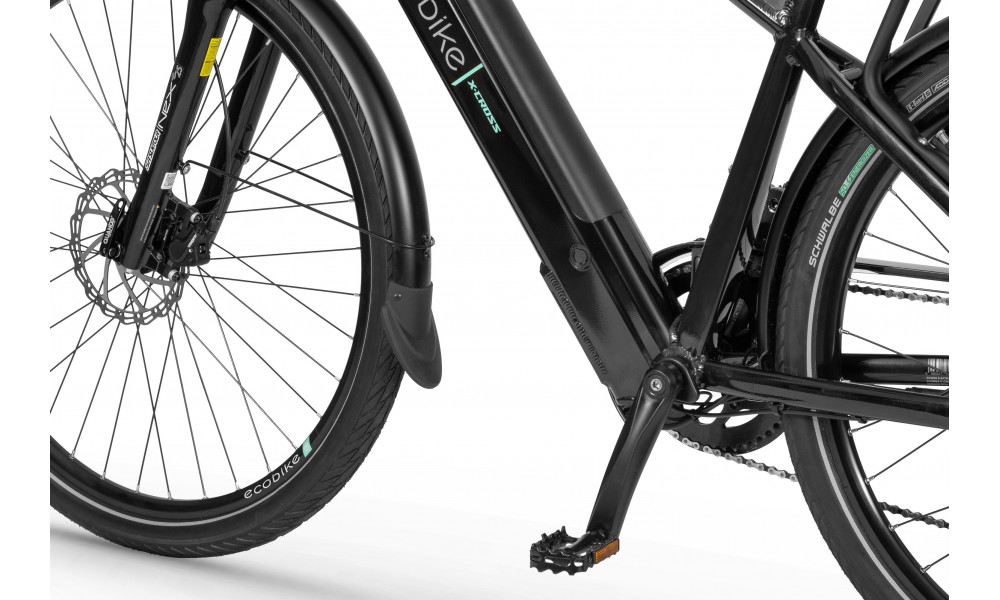

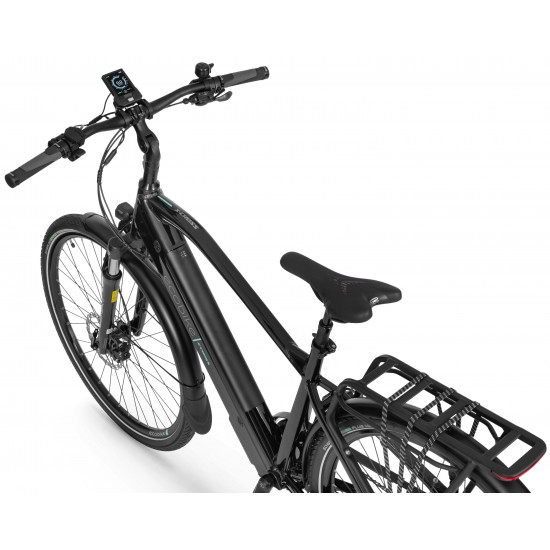

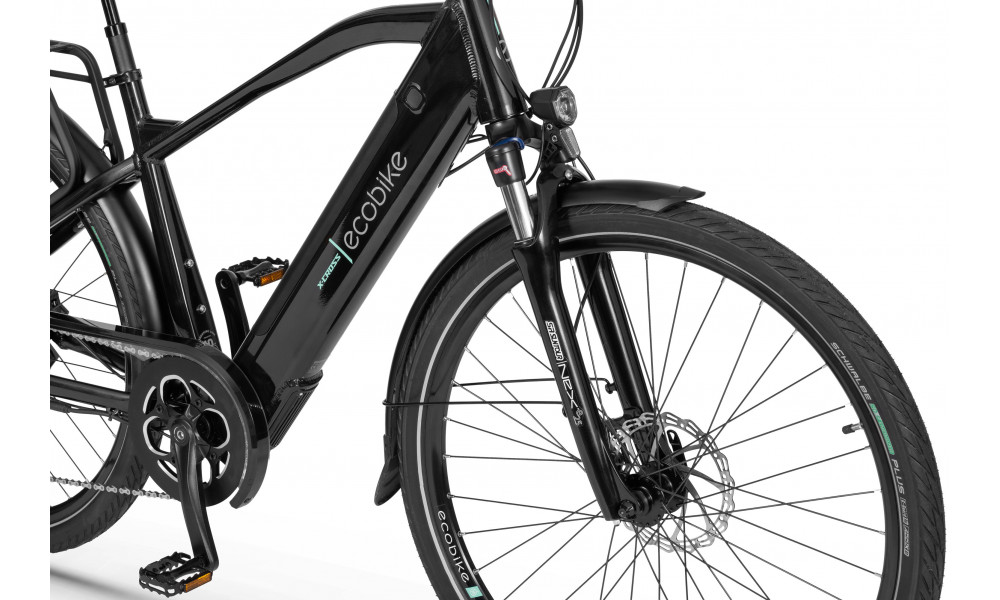

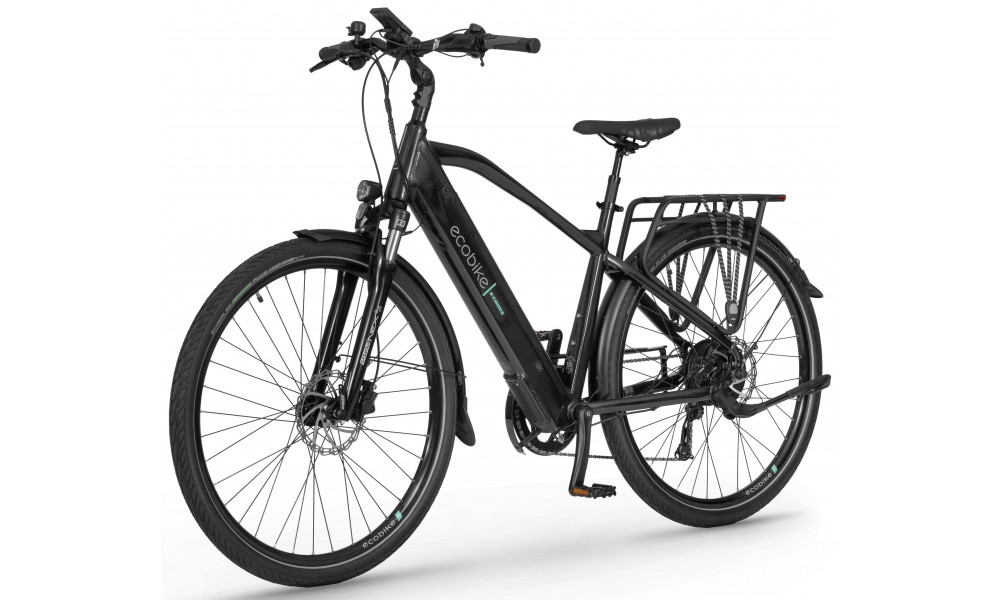

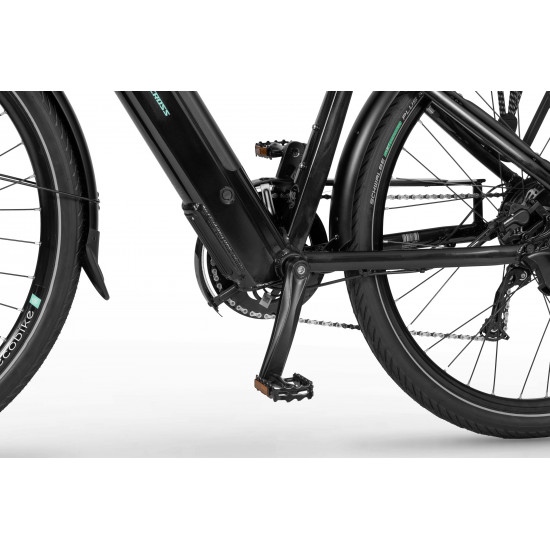

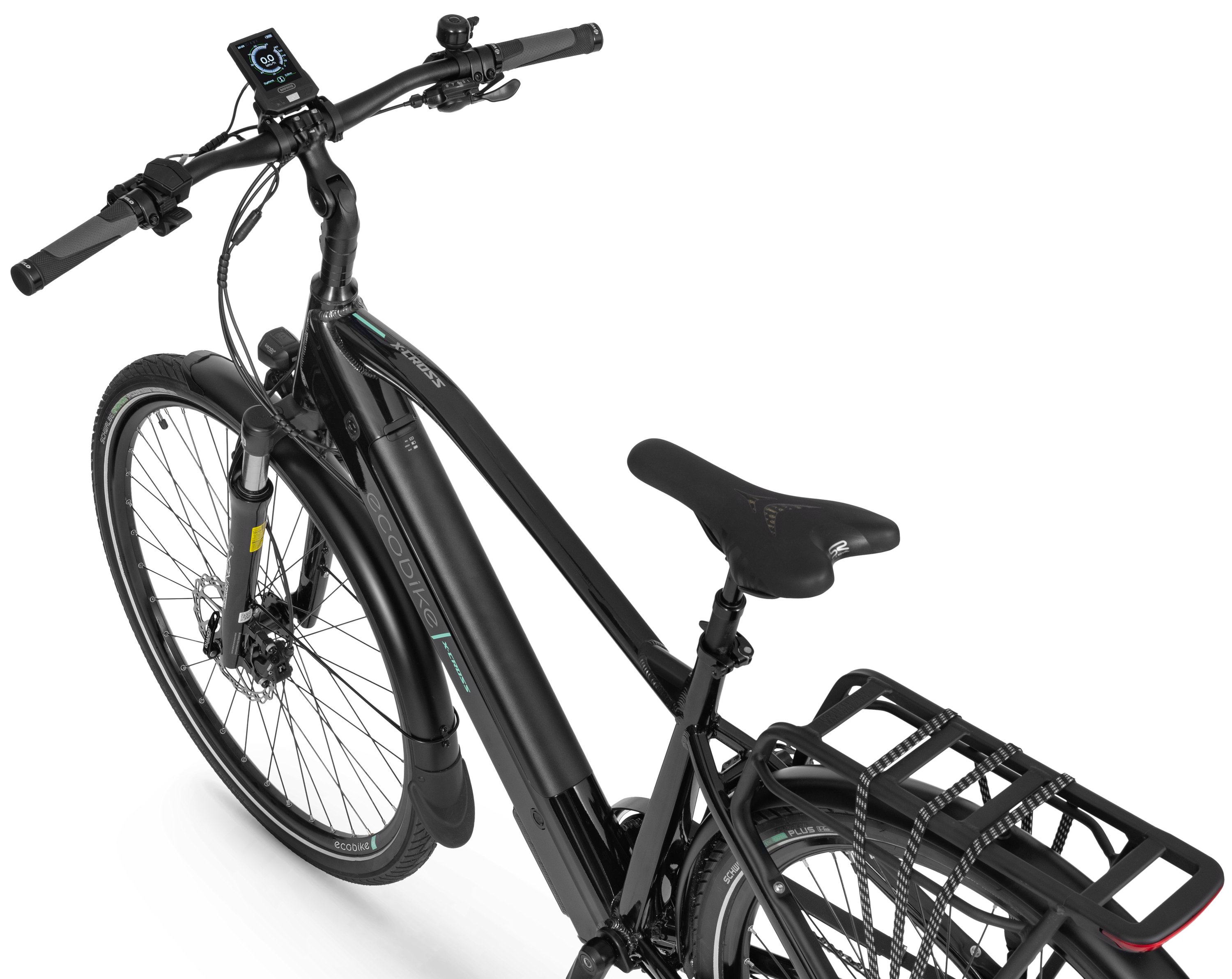

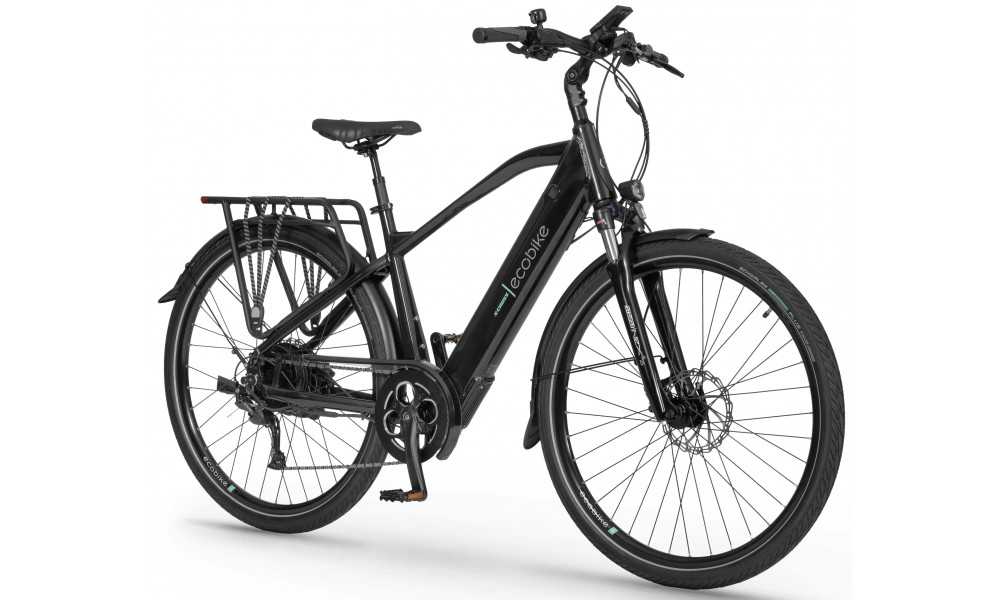

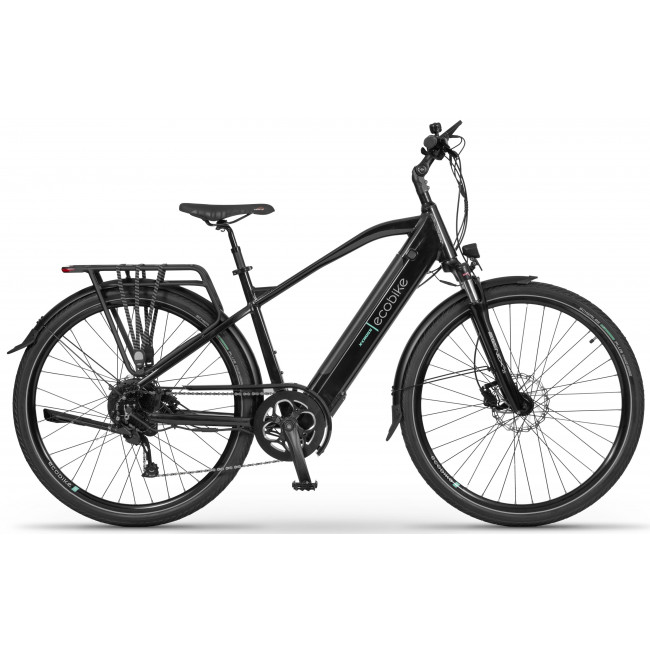

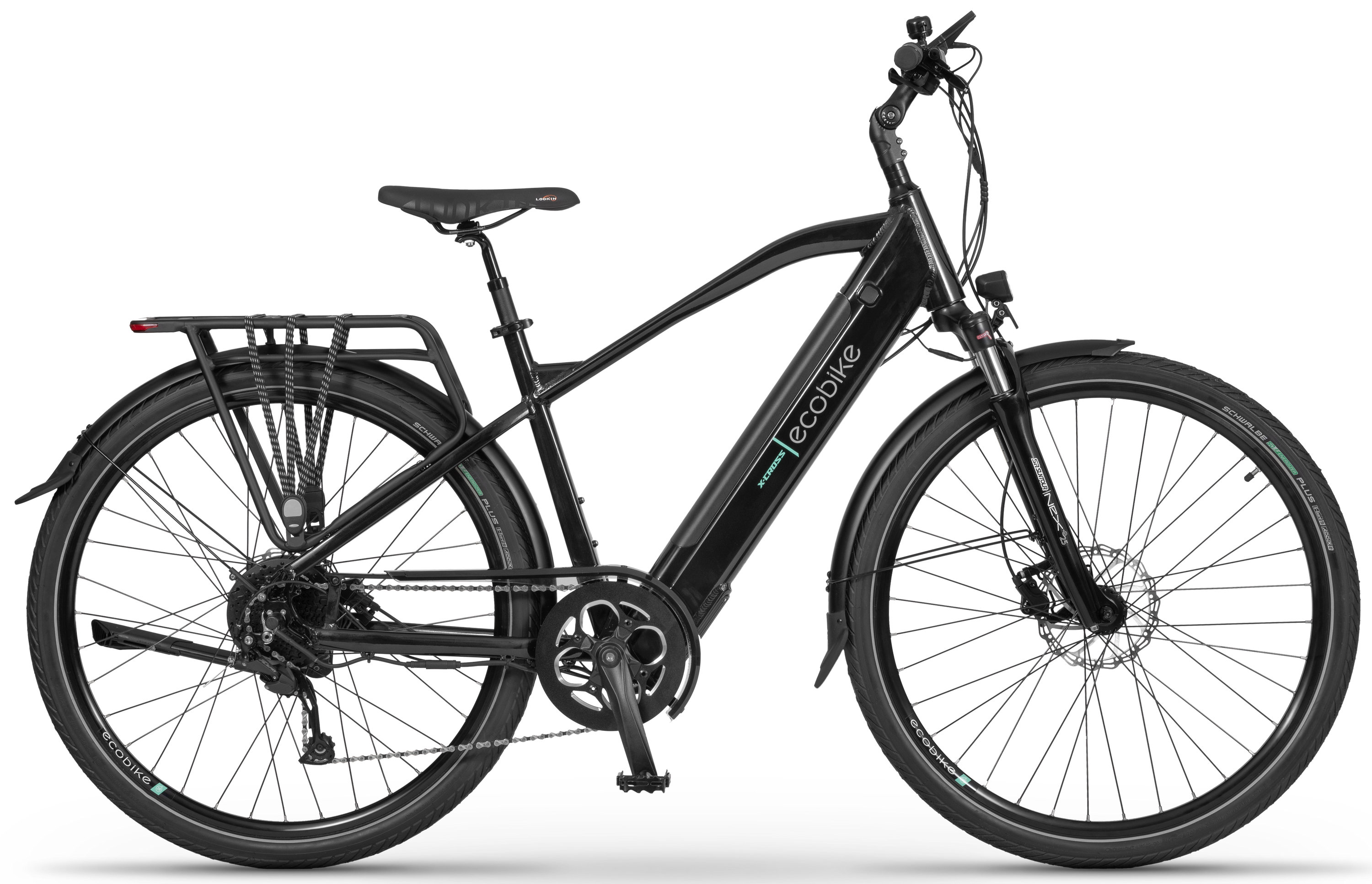

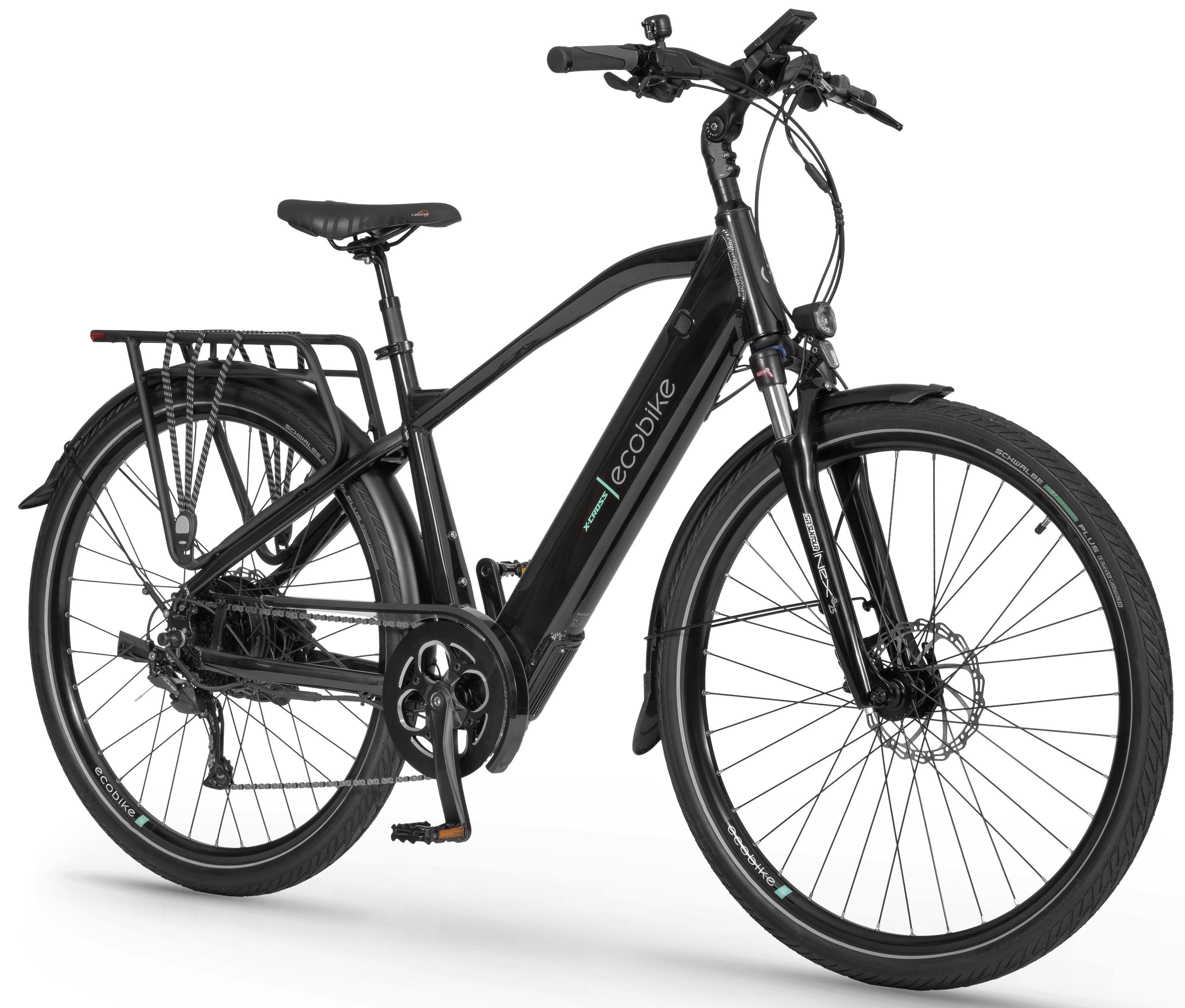

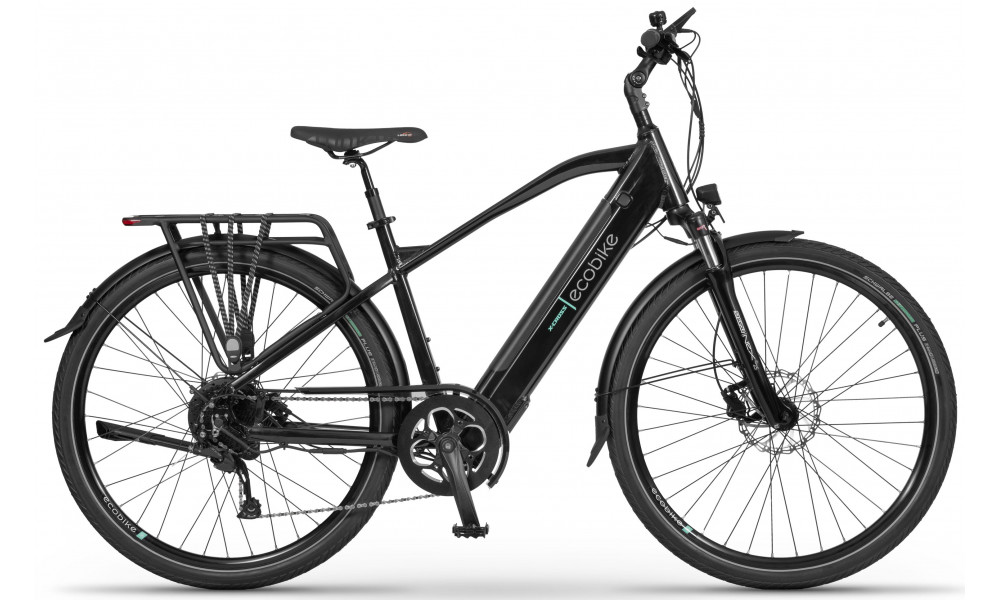

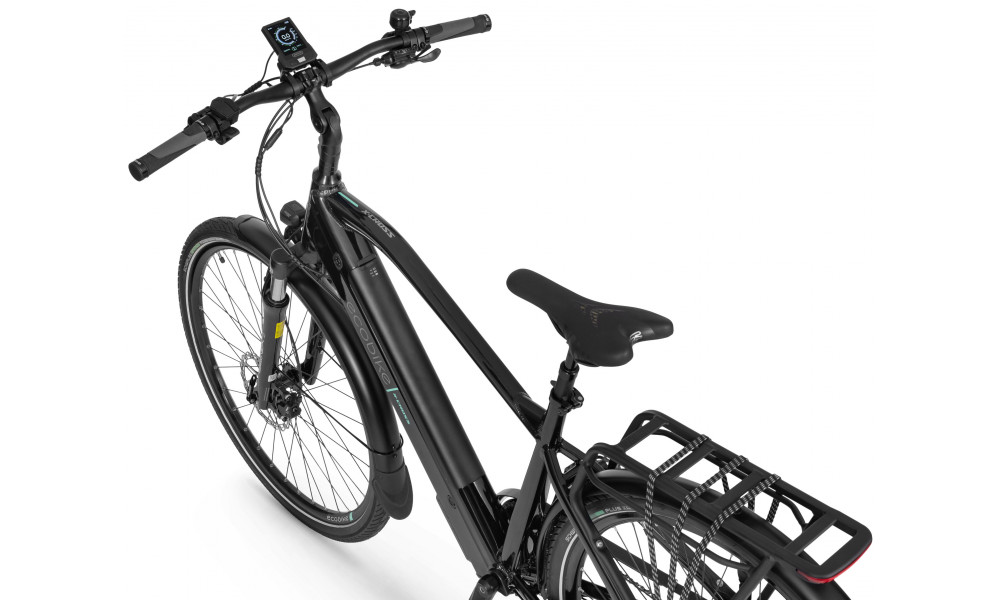

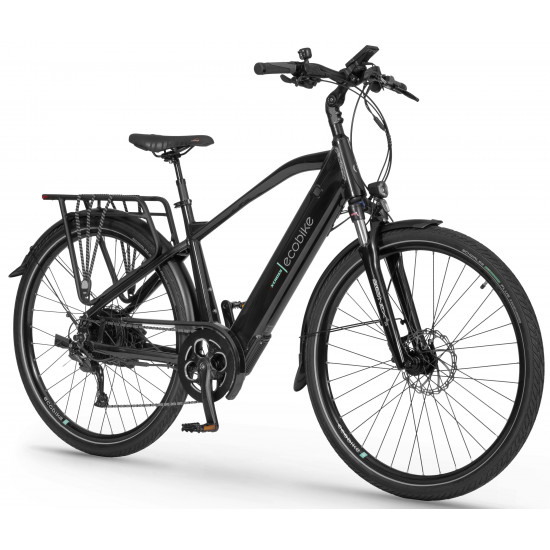

The most popular trekking Ecobike has undergone a complete revolution. X-Cross is an e-bike created from scratch, but maintaining the tradition that has been appreciated by users across Europe for years. A telescopic seatpost, wider tires, more sizes and a completely new handling system - the X-Cross once again sets the standard in its class!
Ecobike X-Cross is very popular throughout Europe. Users value solid equipment and the ability to take the optimal position for comfortable driving in various conditions, even on long routes.

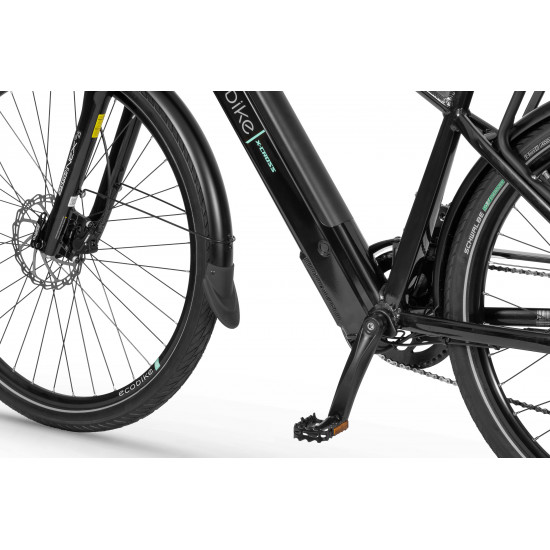

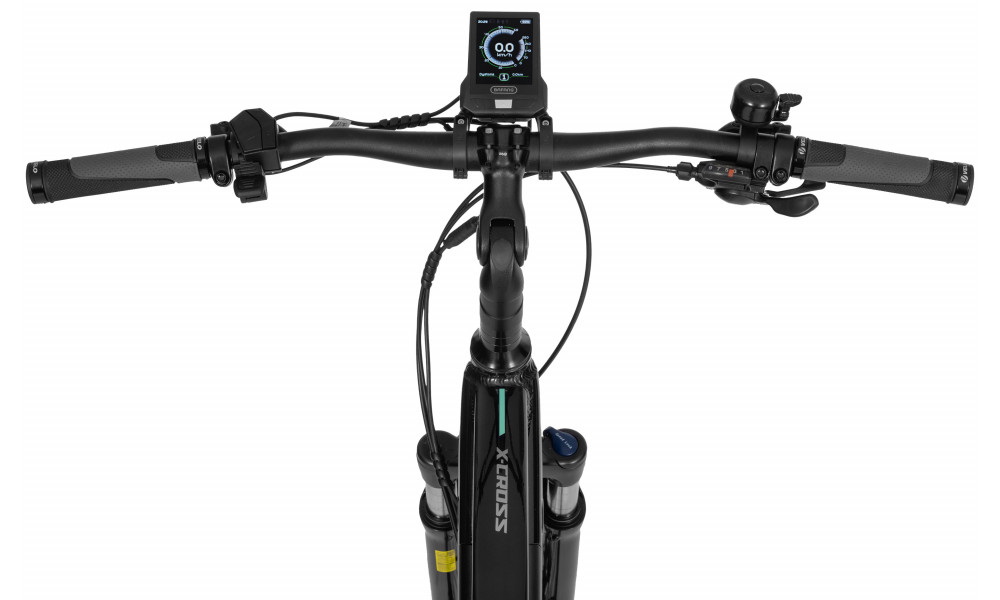

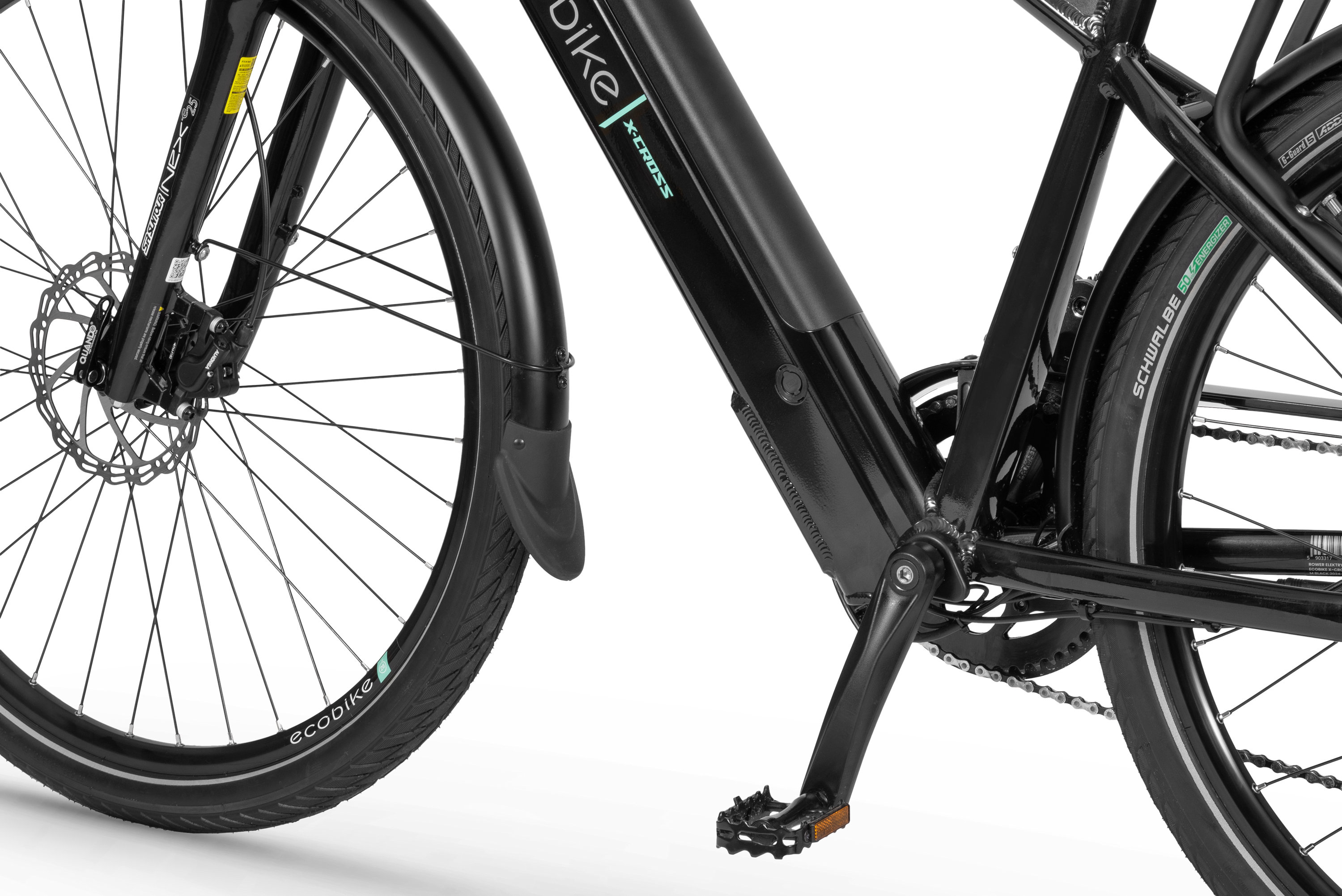

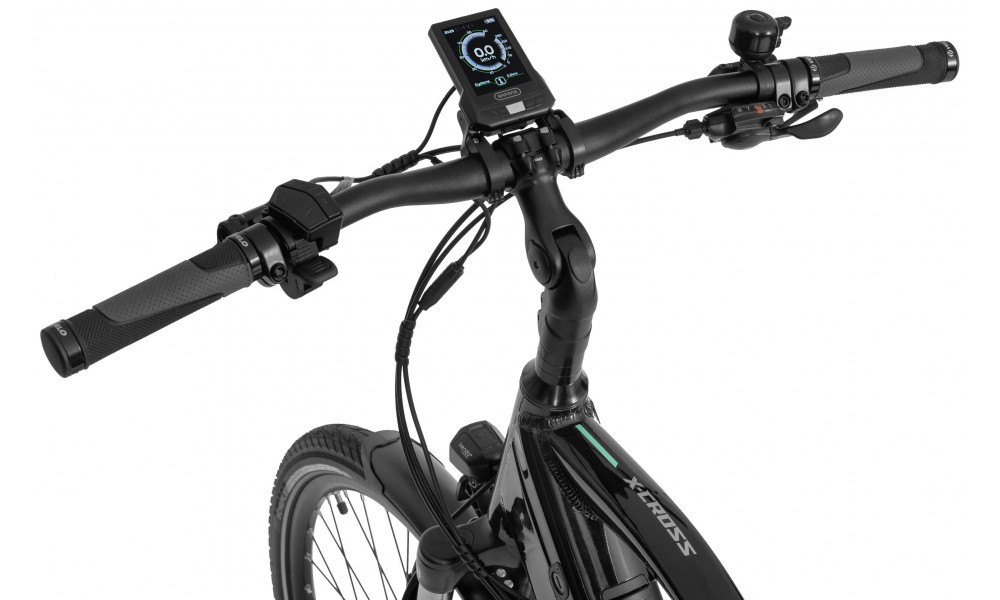

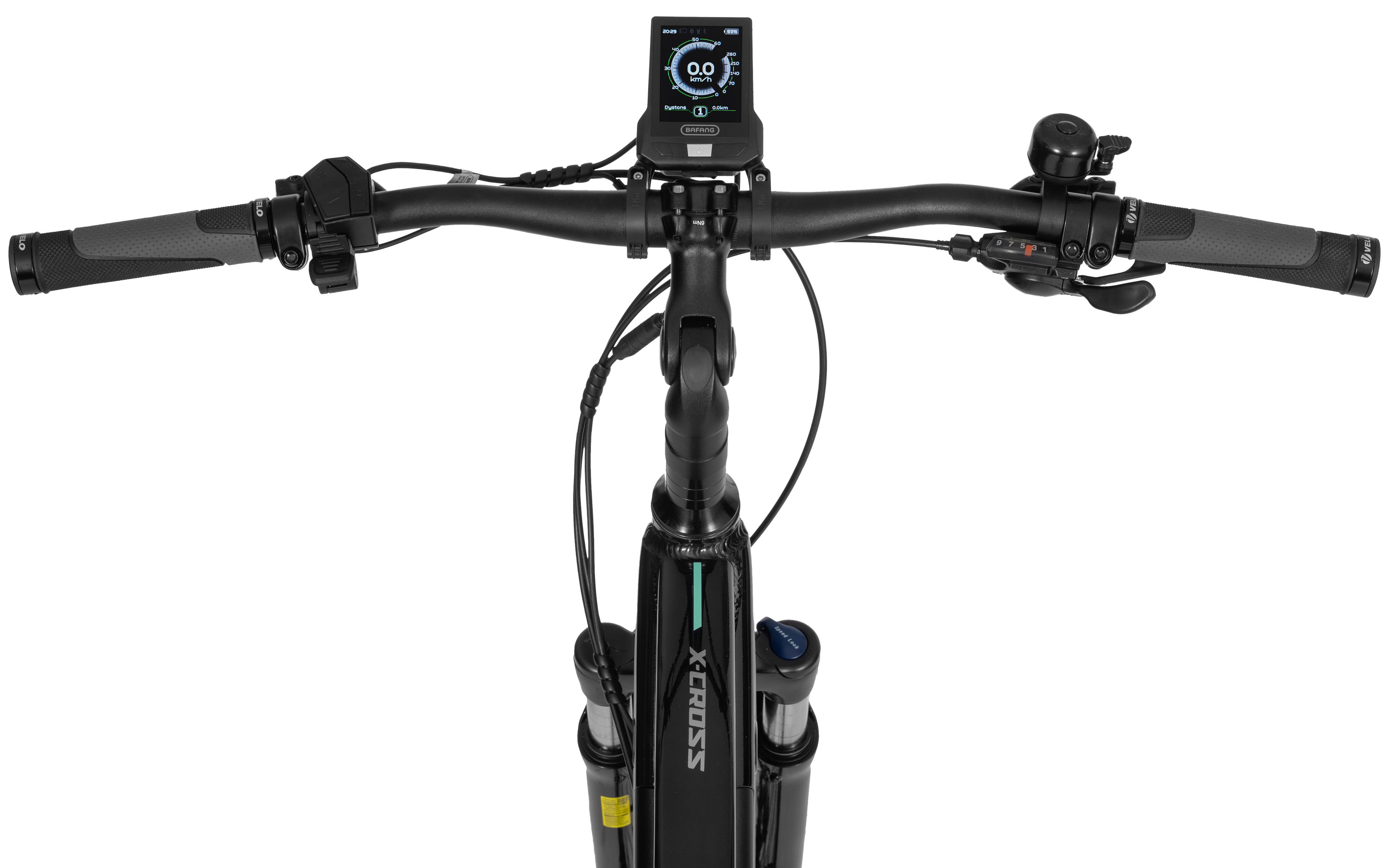

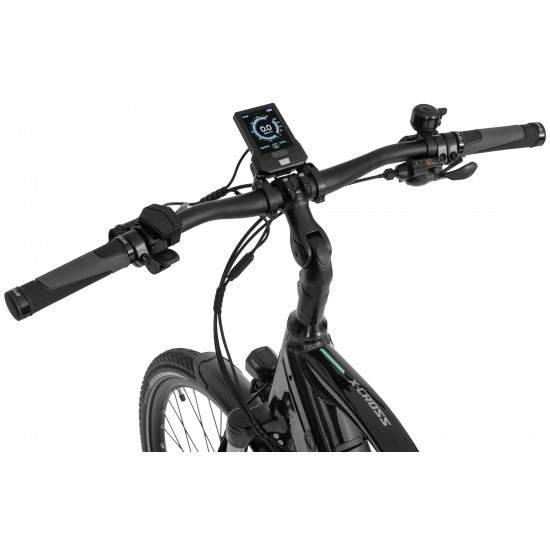

The new version of the model includes a number of changes. Starting with the frame, which has a more expressive and modern design and better protection of the batteries against water. The trunk with integrated lighting also adds a new character. Also noteworthy are the wider than before Schwalbe Energizer Plus tires and the new telescopic seatpost. All versions of the X-Cross are now available in two sizes.Finally, the most important thing – technological change. The X-Cross model has always been equipped with a reliable Bafangaf engine, but now the assistance system comes entirely from this manufacturer, making it even better optimized and therefore even more reliable and energy-efficient. The new Bafang C270 display provides a range of information while driving, is easy to use and looks great.
- Capacity and range:
- 630 Wh: MAX 140 km
- Voltage: 36 V

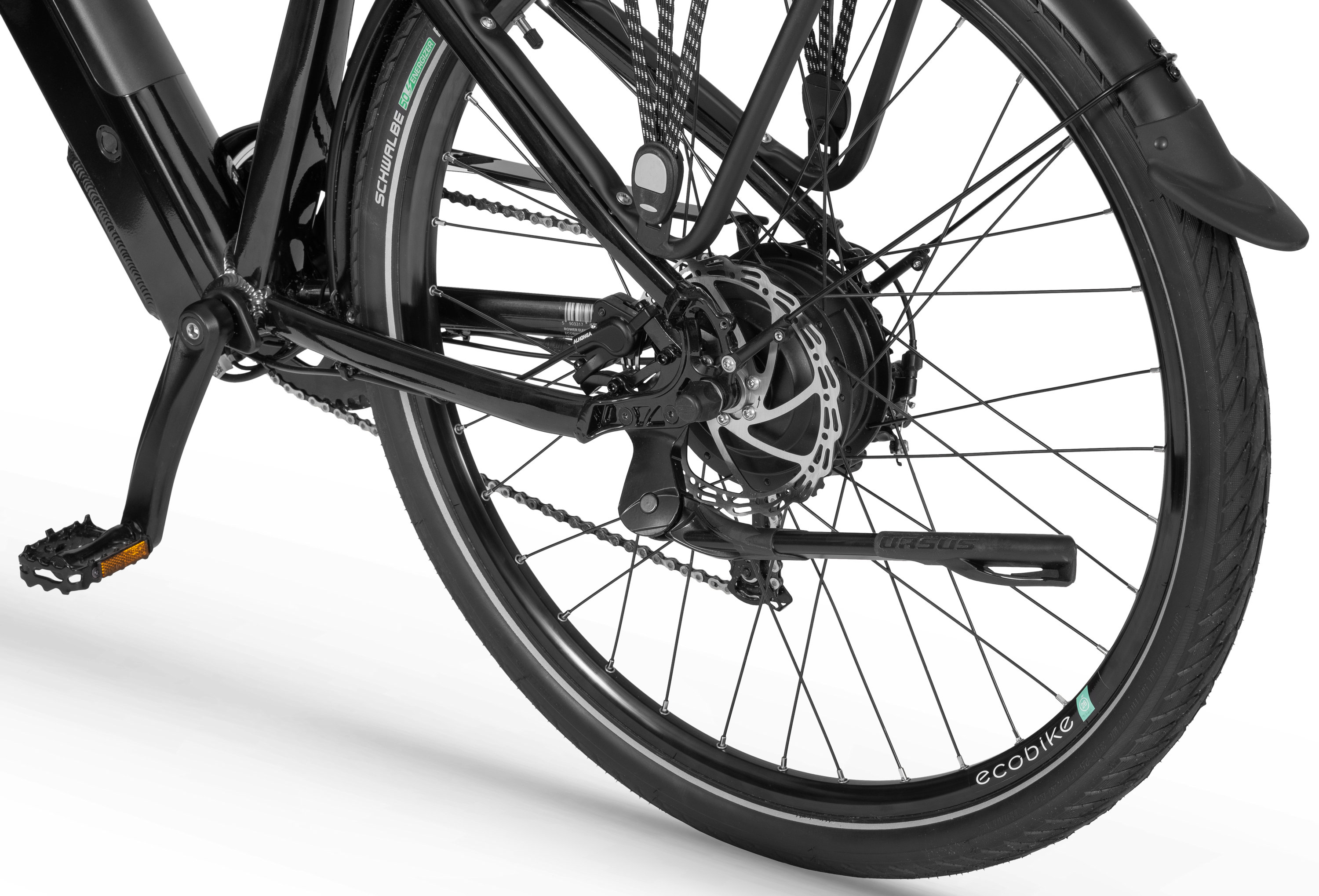

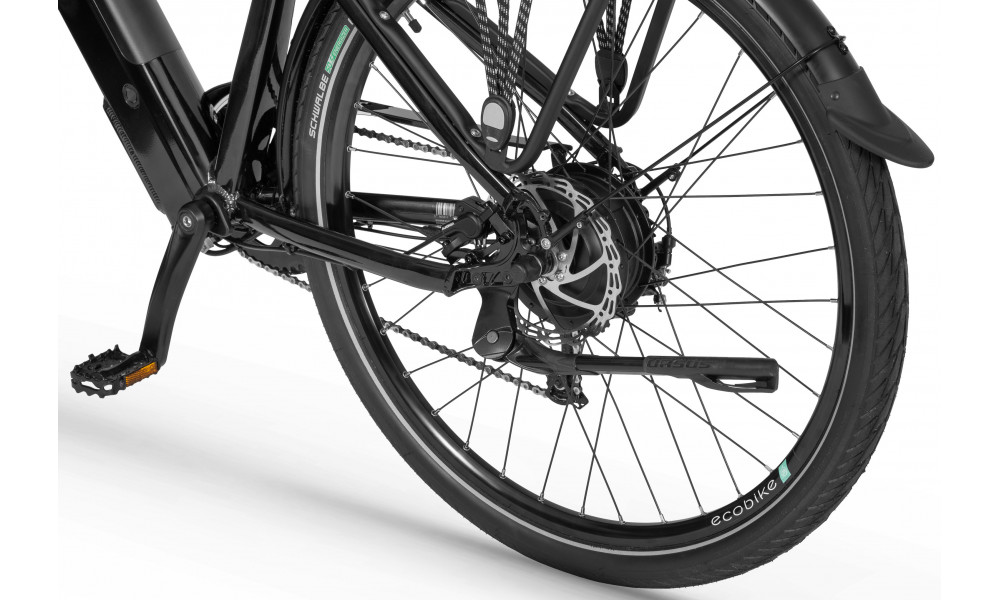

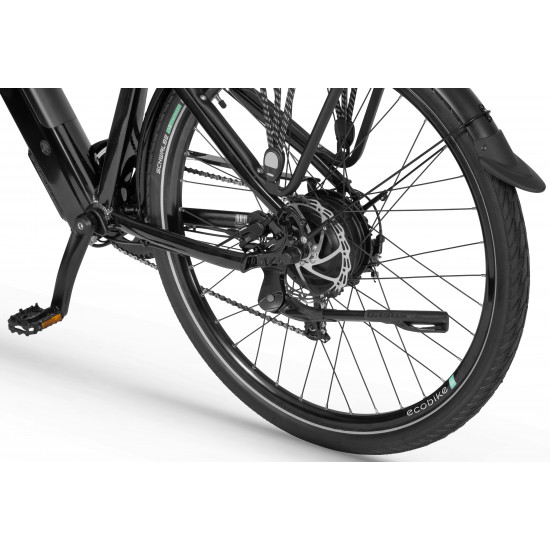

- Mount: rear wheel hub
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 45 Nm
- Motor's brand: BAFANG
- Power: 250 W
- Maximum peak power (requires upgrade kit, which is NOT INCLUDED, upgrade on your own risk, we do not endorse it): 540 W

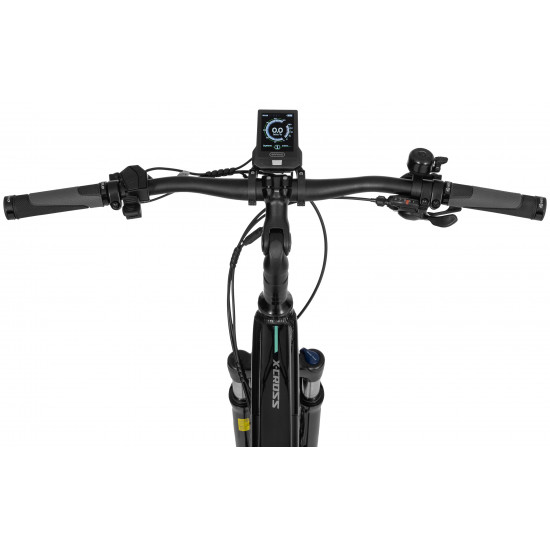

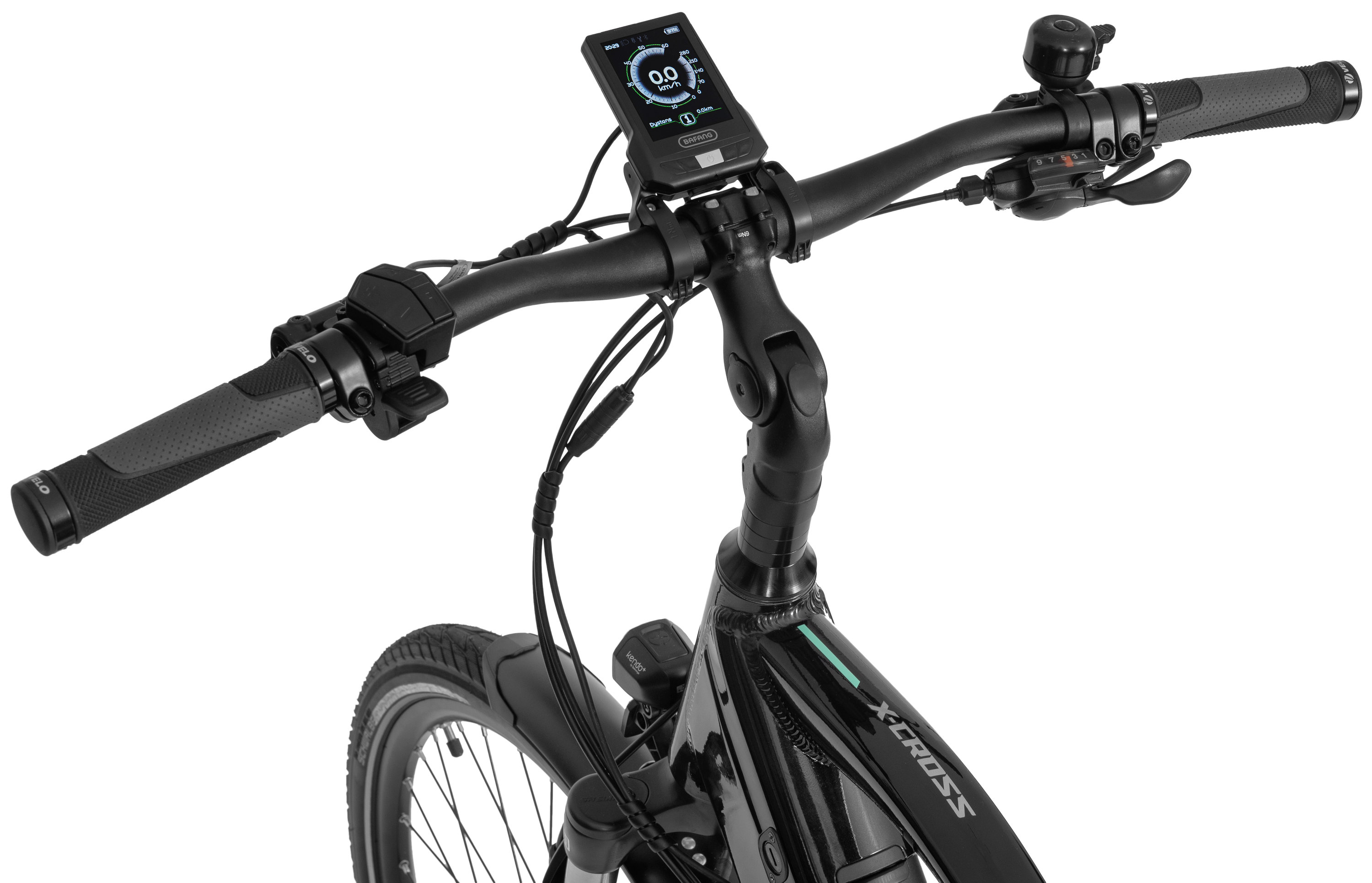

- Computer: C270 CAN
- Fuses: 30 A
- Lifespan: 700 charges
- Type: Li-ion
- Voltage: 36 V
- Charger: 220-240V/42V / 2A / D type
- Cells brand: EVE
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 4-8 hours
- FRAME: Hydroformed aluminium
- FRAME SIZE: 19"

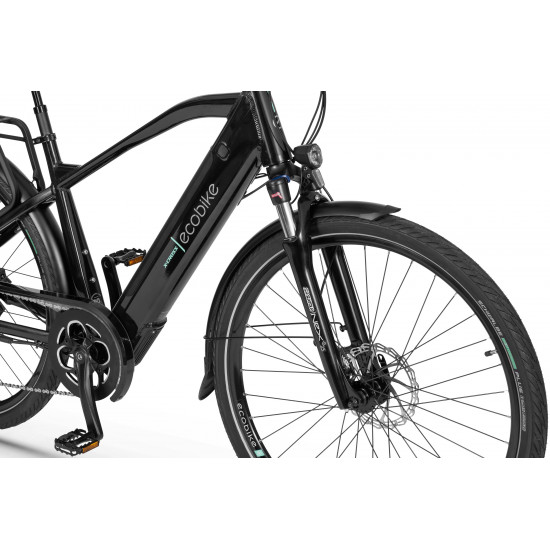

- FORK: SunTour SF15 NEX-E25 LO DS 700C, travel: 63 mm, suspension
- BRAKES: Alhonga HJ-HT472 hydraulic disc
- CHAIN: KMC, 118L, 9 speed

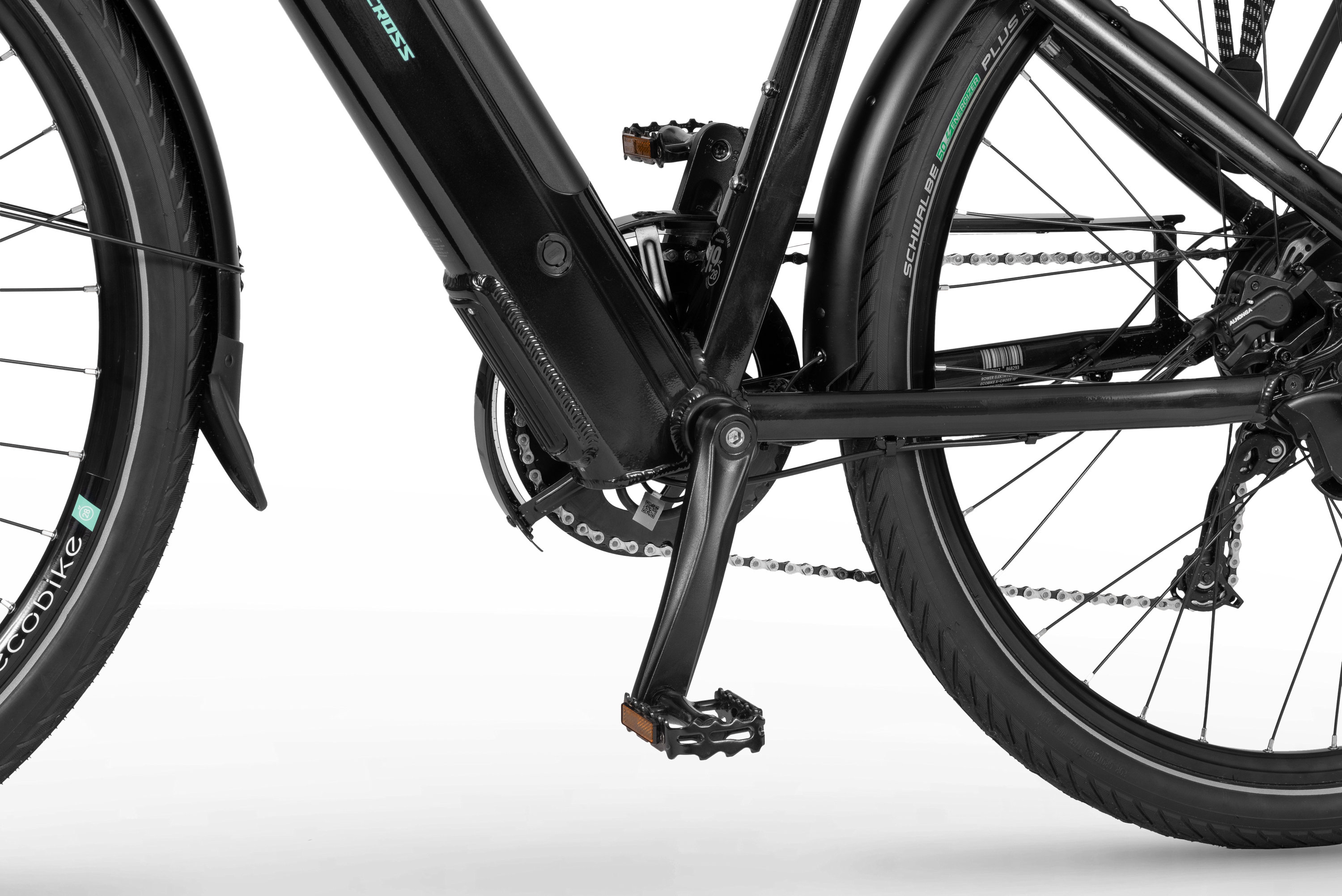

- CHAINWHEEL: Topwheel Ounce 248A, 1 speed, teeth: 48T, crank arm length: 170 mm
- REAR DERAILLEUR: Shimano Alivio 9-speed
- FREEWHEEL: Shimano Altus, 11-34T, 9 speed
- BOTTOM BRACKET: Feimin FP-B902W (73 mm x 124,5 mm)
- HANDLEBAR: Promax HB-3188, aluminium, diameter in stem fixing spot (center): 31.8 mm
- STEM: Promax MA-595S, aluminium, adjustable
- HUBS: Front hub: KT-K68F-QR 13G 36H 9x100 mm / Rear Hub: Engine
- PEDALS: VP-199
- RIMS: 28", reinforced
- SADDLE: Selle Royal Lookin Basic
- SEAT POST: UNO SP382 , diameter: 27.2 mm, length: 350 mm
- SHIFTERS: Shimano Altus SL-M2000 9-speed
- SPOKES: stainless steel, SAPIM
- TYRES: 28 x 2.00 Schwalbe ENERGIZER PLUS
- WEIGHT: 27.1 kg
- SPEEDS: 9
- MUDGUARDS: For front and rear wheel, with u-stays
- GRIPS: VELO VLG-776
- KICKSTAND: Rear, adjustable length, aluminium
- CARRIER: Aluminium, max.: 25kg, with carrier straps
- LIGHTS: Rear Light: Spanninga GLOW XE 6-48V DC / Front Light: Spaninga KENDO XE
- Effective top tube length: 605 mm
- Head tube lenght: 160 mm
- Frame size: 482 mm
- Wheel base: 1135.6 mm
- Seat tube angle: 73
- Headset angle: 69
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
Jalgratas tarnitakse tootja originaalpakendis (tavaliselt eemaldatud esiratta, juhtraua, sadulaga), mis tagab kaupade ohutuse ladustamisel ja transportimisel. Ostes sellises pakendis jalgratta, peab Ostja ise või tema valitud rattameister selle sobivalt kasutamiseks ette valmistama – kokku panema, ühendama ja reguleerima.
Enne väljasaatmist valmistatakse jalgratas ette sõitmiseks – pannakse kokku, reguleeritakse ja pingutatakse. See tarnitakse pakendatuna spetsiaalsesse pappkarpi. Peale jalgratta kättesaamist tuleb vaid ühendada ja kinnitada pedaalid, seadistada juhtraud ning sadul õigesse asendisse ja saabki sõitu alustada. Laste jalgratastele võib olla vaja kinnitada ka abirattad ja -varras, kui need on komplektis. Täiendavalt ostetud tarvikute ning aksessuaaride paigaldamine ei sisaldu teenuse hinnas.
